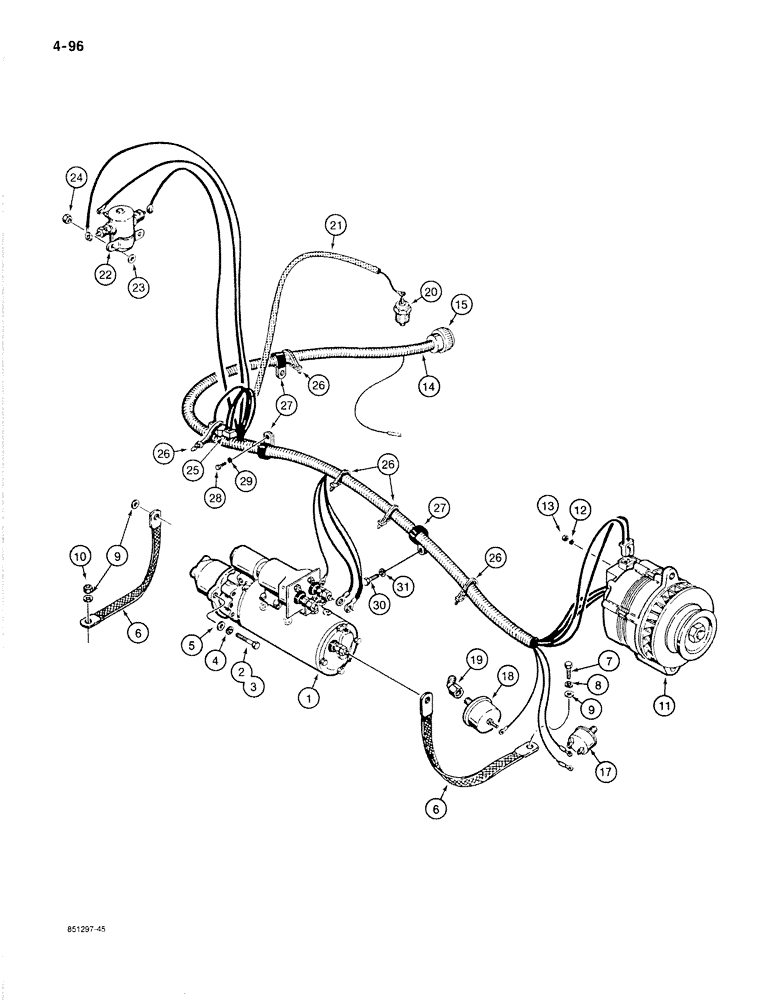

Запчасти Case 1187B (4-096) - CASE ENGINE ELECTRICAL SYSTEM, USED ON MODELS PRIOR TO P.I.N 6275525 (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

STARTER ASSEMBLY - engine, see Figures 4-84 - 4-90 for correct starter and parts list

1шт.

2

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Starter mounting Hex, 1/2"-13 x 2", G5

2шт.

3

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

Starter mounting Hex, 1/2"-13 x 3 1/4", G5

1шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Starter mounting 1/2"

3шт.

5

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", starter mounting

3шт.

6

S229640

CABLE

- ground, starter to engine and, Serial Range: engine-turntable

2шт.

7

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Ground cable to engine Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Ground cable to engine 3/8"

1шт.

9

195-525

WASHER,3/8", SAE

- flat, 3/8", ground cable to engine and frame

3шт.

10

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, ground cable to turntable

1шт.

11

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - parts list Figures 4-80 and 4-82, mounting brackets Figure 4-94

1шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Alternator output terminal 1/4"

1шт.

13

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Alternator output terminal

1шт.

14

S618794

HARNESS

- engine, Includes: Refs. 15, 16

1шт.

15

S107265

PLUG

CONNECTOR - harness, Includes: Ref. 16

1шт.

16

S99513

CONTACT

- connector, female, not shown

8шт.

17

S63884

SWITCH

- hourmeter, oil pressure activated

1шт.

18

S242609

SWITCH

SENDER - engine oil pressure

1шт.

19

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

1шт.

20

S108396

SENDER UNIT

SENDER - engine temperature

1шт.

21

S119471

LOOM

- 24" (610 mm) long, sender wire, cut from S118377, see below

1шт.

22

S240588

SOLENOID SWITCH

RELAY - starter

1шт.

(Bosch L115883)

1шт.

23

195-518

WASHER,1/4", SAE

- flat, 1/4", relay mounting

2шт.

24

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC, relay mounting

2шт.

25

S237284

RESISTOR

- alternator circuit

1шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

27

R14668

CLAMP

- harness

3шт.

28

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

29

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

30

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

31

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

S118377

LOOM

- bulk roll, 240" (6096 mm) long

1шт.
