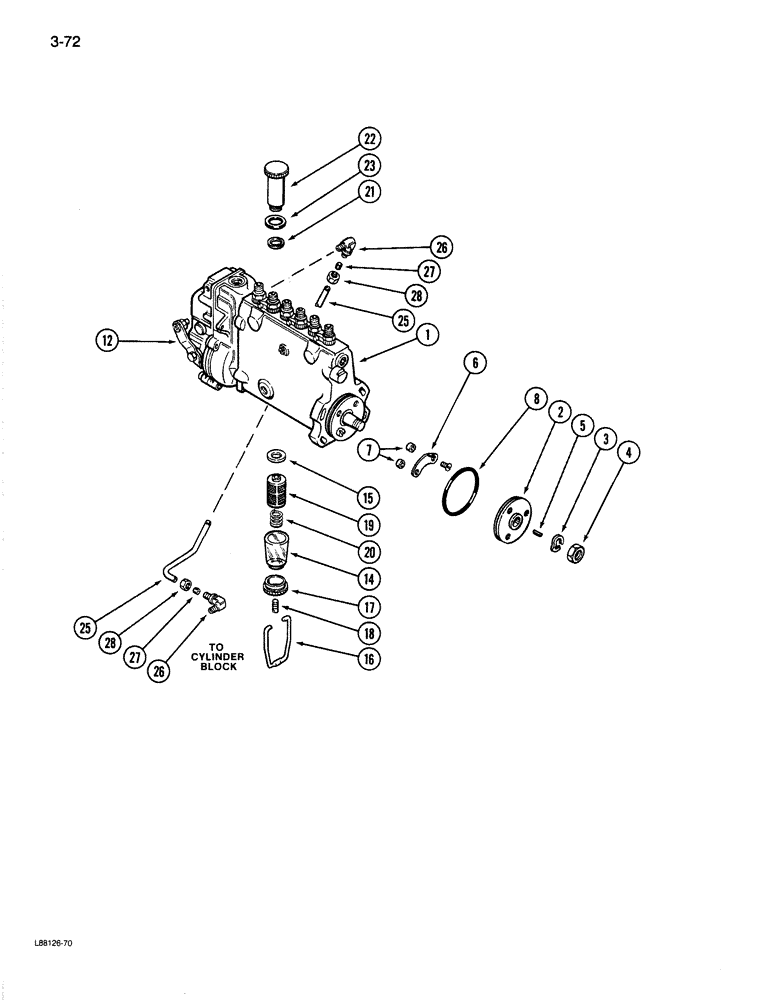

Запчасти Case 1187B (3-72) - FUEL INJECTION PUMP, 504BDT ENGINE (03) - FUEL SYSTEM

1

A156988

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, 2100 RPM, Includes: Refs. 2-8

1шт.

2

A41857

HUB

- drive

1шт.

3

A41851

LOCK WASHER

- lock, hub nut

1шт.

4

A41852

LOCK NUT

- hub, retaining

1шт.

5

A41850

KEY

-, Serial Range: hub-shaft

1шт.

6

A41858

INDICATOR

POINTER - adjustment

1шт.

7

A41859

BUSHING

SPACER - pointer

2шт.

8

A41856

O-RING,3mm Thk x 75mm ID

- hub, 3-3/16 inch

1шт.

12

A66116

CABLE

LEVER - fuel shut-off

1шт.

A66116 LEVER USES A59101 STOP CONTROL PIVO

1шт.

814-4008

BOLT,Hex, M4 x 0.7 x 8mm, Cl 8.8, Full Thd

- pump stop control, 4 x 8 mm (Not shown)

1шт.

14

A43347

BOWL

- glass filter

1шт.

15

A43346

GASKET

- bowl

1шт.

16

A43350

CLAMP

BAIL - bowl

1шт.

17

A43348

NUT

- bail

1шт.

18

A43349

STUD

- bail nut

1шт.

19

A43344

FILTER, ELEMENT

ELEMENT - filter

1шт.

20

A43345

SPRING

- element

1шт.

21

A43351

SEAL

- hand primer, copper

1шт.

22

A43343

CARTRIDGE

PRIMER ASSEMBLY - hand pump, Includes: Ref. 23

1шт.

23

A45342

GASKET

- hand primer, rubber

1шт.

25

A136903

TUBE

- lube, oil gallery to injection pump

1шт.

26

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSEMBLY - lube tube, Includes: Refs. 27, 28

2шт.

27

222-102

SLEEVE,1/4" Tube

1шт.

28

87017024

TUBE NUT,1/2"-24

NUT - 1/4 inch tube

1шт.
