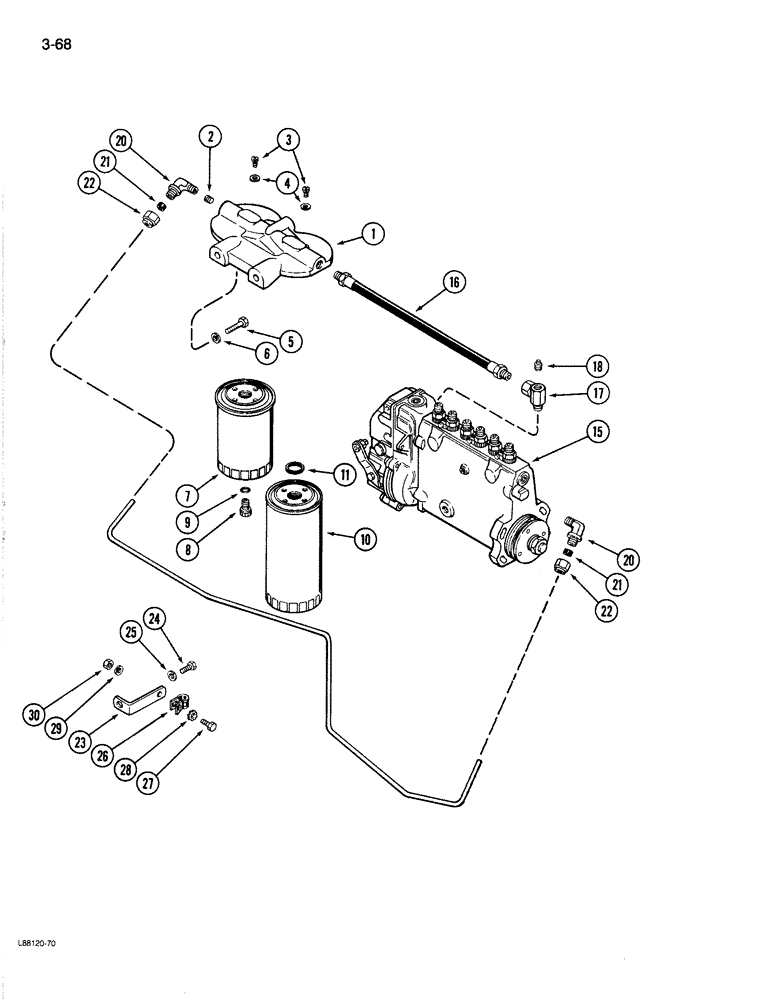

Запчасти Case 1187B (3-68) - FUEL FILTER SYSTEM, 504BDT ENGINE (03) - FUEL SYSTEM

1

A155489

HEAD

ASSEMBLY - fuel filter, Includes: Ref. 2

1шт.

A155489: HEAD ASSEMBLY (FUEL FLTR). SEE NA #1-85, NA #2-85; NENSL35-88

1шт.

2

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, hex socket head, 1/8 inch PT

1шт.

3

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed

2шт.

4

A146368

WASHER,5.08mm ID x 9.65mm OD x 1.02mm Thk

GASKET - washer, bleed screw

2шт.

5

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

413-620: BOLT. SEE NTRSL01890; T/S101-94C

1шт.

6

492-11038

LOCK WASHER,3/8"

2шт.

A44068

FUEL FILTER

KIT - replacement, fuel filter, Includes: Refs. 7-11

1шт.

A44068: KIT (FUEL FLTR). SEE NA #1-85, NA #2-85

1шт.

7

NSS

NOT SOLD SEPARAT

ELEMENT - first stage filter (Order A44068), Includes: Refs. 8, 9

1шт.

8

G49080

PLUG

- drain, plastic

1шт.

9

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk

1шт.

A28090: O-RING. SEE T/S #40-90D

1шт.

10

NSS

NOT SOLD SEPARAT

ELEMENT - second stage filter (Order A44068), Includes: Refs. 11

1шт.

11

NSS

NOT SOLD SEPARAT

GASKET - element to head (Order A44068) (See Figure Note)

1шт.

15

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See Figure 3-72)

1шт.

16

A65564

HOSE,9.53mm ID x 390.65mm L, SAE 100R6

- filter, Serial Range: head-pump

1шт.

17

A20539

FITTING

UNION -, Serial Range: hose-pump

1шт.

18

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, square head, 1/8 inch PT

1шт.

221-849: PLUG (1/8 INCH). SEE NCRSB01992

1шт.

19

A157329

TUBE

- transfer pump to filter head

1шт.

20

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSEMBLY - tube, 90 degree, 5/16 x 1/4 inch PT, Includes: Refs. 21, 22

2шт.

21

222-103

SLEEVE,5/16" Tube

1шт.

22

222-113

TUBE NUT,9/16"-24

NUT - tube, 5/16 inch

1шт.

23

A64856

BRACKET

-, Serial Range: tube-block

1шт.

24

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

- hex, 3/8 NC x 5/8 inch

1шт.

25

492-11038

LOCK WASHER,3/8"

1шт.

492-11038: LOCK WASHER. SEE EBTSB00795; NCRSB00495, NCRSB02194; NSESB193, NSESB00295, NSESB02395; NSESL00696; NA #6-1995

1шт.

26

A62209

CLAMP,5/16", Insul, 1/4" Bolt

- tube to bracket

1шт.

27

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

113-3: BOLT. SEE NTRMP05588; T/S #459-93

1шт.

28

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

1шт.

29

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

192-19: LOCK WASHER. SEE NSESB193; NUNSB01288

1шт.

30

25-104

NUT,1/4"-20, G5

1шт.

25-104: NUT. SEE ETRSB04692

1шт.
