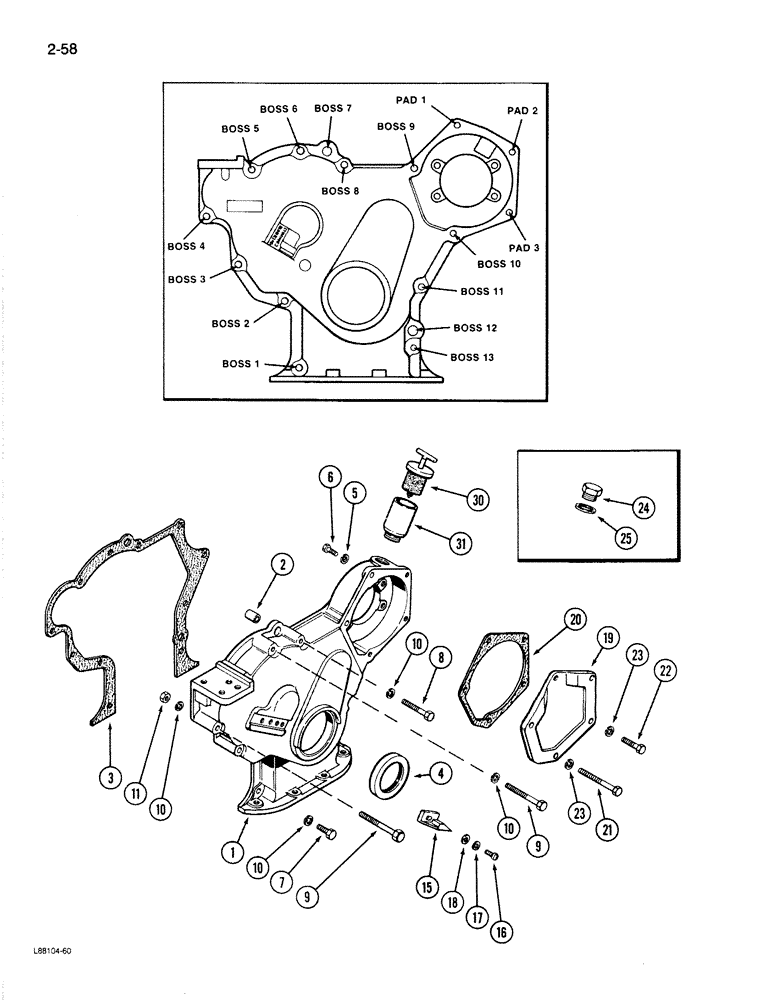

Запчасти Case 1187B (2-58) - TIMING GEAR COVER, 504BDT ENGINE (02) - ENGINE

1

A166142

COVER

ASSEMBLY - timing gear, Includes: Ref. 2

1шт.

A166142: COVER ASSEMBLY (TMG GR). SEE NA #9-88, NA #10-88

1шт.

2

A58611

PIN

- dowel, 3/8 x 39/64 x 1 inch (Boss 7 and 12)

2шт.

3

A58612

GASKET

-, Serial Range: cover-block

1шт.

4

A157044

OIL SEAL,63.78mm ID x 92.2mm OD x 9.91mm Thk

- oil, crankshaft front

1шт.

5

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Pad 1) Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

113-113: BOLT. SEE T/S #082-91

1шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

192-20: LOCK WASHER. SEE NA #9-1993

1шт.

7

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Boss 1, 2, 11 and 13) Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

8

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

(Boss 3, 6 and 8) Hex, 3/8"-16 x 2 1/2", G5

3шт.

9

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch (Boss 4 and 5)

2шт.

413-656: BOLT. SEE NA #4-1994

1шт.

10

492-11038

LOCK WASHER,3/8"

9шт.

492-11038: LOCK WASHER. SEE EBTSB00795; NCRSB00495, NCRSB02194; NSESB193, NSESB00295, NSESB02395; NSESL00696; NA #6-1995

1шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

15

A63911

INDICATOR

POINTER - timing

1шт.

16

169-119

SCREW,Sl Fil Hd, #12 - 24 x 3/4"

- slotted fillister head, No. 12-24 x 3/4 inch

1шт.

17

192-108

LOCK WASHER,#12

WASHER - lock, No. 12

1шт.

18

195-16

WASHER,#12

- 1/4 x 9/16 x 1/16 inch

1шт.

19

A61053

COVER

- drive gear, injection pump

1шт.

20

A58615

GASKET

- cover

1шт.

21

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch (Boss 9 and 10)

2шт.

22

A151921

BOLT

- hex, drilled, 3/8 NC x 1-3/4 inch (Pad 2 and 3)

2шт.

23

492-11038

LOCK WASHER,3/8"

4шт.

24

A21140

PLUG

- timing window

1шт.

25

A58613

SEALING WASHER

GASKET - window plug

1шт.

30

S236763

PLUG

- filler

1шт.

31

S236764

PIPE

- filler

1шт.
