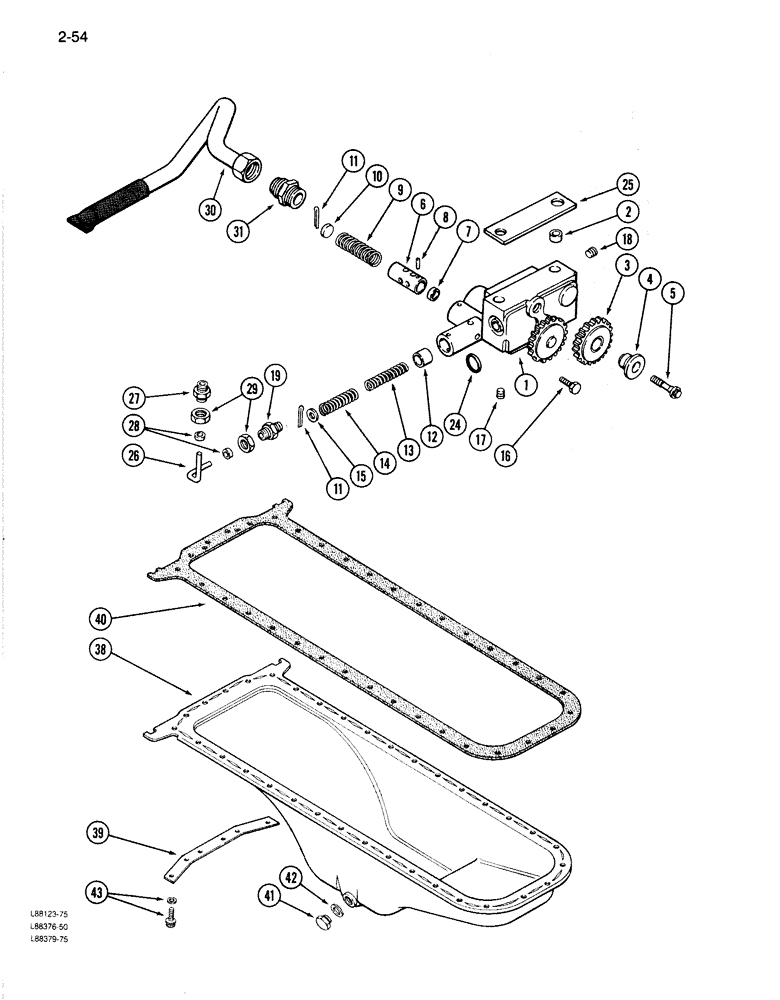

Запчасти Case 1187B (2-54) - OIL PUMP, 504BDT ENGINE (02) - ENGINE

1

A152998

PUMP

ASSEMBLY - oil, Includes: Refs. 2-19

1шт.

A152998: PUMP ASSEMBLY, OIL.SEE NA #7-88, NA #8-88

1шт.

2

A58915

SLEEVE

- dowel, pump to bearing cap

1шт.

3

NSS

NOT SOLD SEPARAT

GEAR ASSEMBLY - idler

1шт.

4

A63944

SHAFT

- idler gear

1шт.

5

A63945

12 PT SCREW

BOLT - idler shaft

1шт.

6

A75286

VALVE

ASSEMBLY - relief, Includes: Refs. 7, 8

1шт.

7

41-1012

PLUG,Cup, 3/4"

1шт.

8

138-2063

PIN,3/32" x 1", Coiled

- spirol, 3/4 x 1 inch

1шт.

9

A63949

SPRING

- relief valve, 2-7/8 inch free length

1шт.

10

41-1016

PLUG,Cup, 1"

- cup, 1 inch diameter

1шт.

11

132-36

COTTER PIN,Ext Prong Sq Cut, 3/32" x 2"

PIN - cotter, 3/32 x 1-3/4 inch

2шт.

12

A76152

VALVE

- safety, pressure relief

1шт.

13

A76154

SPRING

- inner, 11/16 OD x 3-1/8 inch free length

1шт.

14

A76153

SPRING

- outer, 7/8 OD x 2-7/8 inch free length

1шт.

15

195-525

WASHER,3/8", SAE

- 7/16 x 13/16 x 1/16 inch

1шт.

16

26-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

4шт.

17

221-850

PLUG,Hex Soc, 1/16"-27

- socket head, 1/16 inch PT

3шт.

18

221-843

PLUG,Hex Soc, 3/8"-18

- socket head, 3/8 inch PT

1шт.

221-843: PLUG (3/8 INCH). SEE NA #2-82; T/S #107-93R

1шт.

19

222-22

FITTING,1/2"-24 x 1/8" NPTF w/Nut

CONNECTOR - tube, 1/4 PT x 1/8 inch

1шт.

24

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- 1-1/8 inch

1шт.

25

A58859

SHIM,.005" Thk

Pump to brg. cap .005" Thk

1шт.

26

A75290

TUBE

- sensing, oil gallery

1шт.

27

222-22

FITTING,1/2"-24 x 1/8" NPTF w/Nut

CONNECTOR - tube, 1/4 PT x 1/8 inch

1шт.

28

222-153

SLEEVE,1/4" Tube

2шт.

29

87017024

TUBE NUT,1/2"-24

NUT - tube, 1/4 inch

2шт.

30

A142503

SCREEN

TUBE ASSEMBLY - oil suction (Includes screen)

1шт.

31

A142004

CONNECTOR, ELEC

CONNECTOR - suction tube

1шт.

A142004: CONNECTOR. SEE NA #2-82; T/S #16-82

1шт.

38

A148755

PAN, ENGINE OIL

PAN - oil

1шт.

A148755: PAN. SUBS TO PRT. NO. B92706

1шт.

39

A65999

STRAP

- reinforcement, oil - pan

1шт.

40

NSS

NOT SOLD SEPARAT

GASKET - pan to block (See Figure 2-57), oil

1шт.

41

A34826

PLUG,7/8" - 18 ORB

- drain, oil - pan

1шт.

42

A27968

RING

- drain plug, oil - pan

1шт.

A27968: GASKET. SEE NEXMP00790

1шт.

43

193-553

SCREW,SEMS, Hex Hd, 3/8"-16 x 7/8", G5

BOLT - hex, sems, 3/8 NC x 7/8 inch, oil - pan

34шт.
