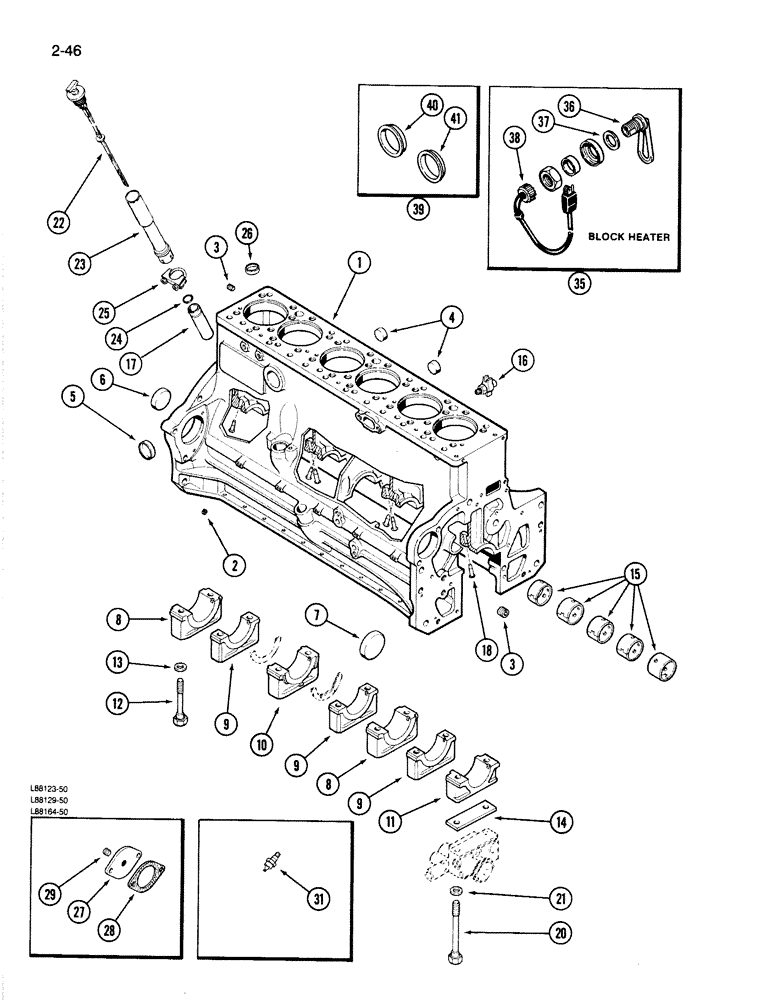

Запчасти Case 1187B (2-46) - CYLINDER BLOCK, 504BDT ENGINE (02) - ENGINE

A166095

CRANKCASE

BLOCK ASSEMBLY - short (Includes pistons, rings, connecting rods, camshaft, crankshaft and timing gears), Includes: Refs. 1-17

1шт.

A166095: SHORT BLOCK. SEE NA #10-1991; T/S 493-91

1шт.

1

A44077

CRANKCASE

BLOCK ASSEMBLY - stripped (Casting No A66527), Includes: Refs. 2-17

1шт.

A44077: BLOCK ASSEMBLY (STRIPPED). SEE A13-75

1шт.

2

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, hex socket head, 1/8 inch PT

5шт.

221-849: PLUG (1/8 INCH). SEE NCRSB01992

1шт.

3

221-843

PLUG,Hex Soc, 3/8"-18

- pipe, hex socket head, 3/8 inch PT

4шт.

221-843: PLUG (3/8 INCH). SEE NA #2-82; T/S #107-93R

1шт.

4

A58568

PLUG,Cup, 1 3/8", Stainless

- cup, 1-3/8 inch diameter

3шт.

5

A58569

PLUG,Cup, 2", Stainless

- cup, 2 inch diameter

1шт.

6

A24361

PLUG

- cup, 2-3/8 inch diameter

1шт.

7

41-1052

PLUG,Cup, 3 1/4"

- auxiliary drive opening, cup, 3-1/4 inch

1шт.

8

A154398

BEARING CAP

CAP - main bearing, wide

2шт.

9

A154397

BEARING CAP

CAP - main bearing, narrow

3шт.

10

A154395

CAP

- main bearing, thrust

1шт.

11

A154396

BEARING CAP

CAP - main bearing, front

1шт.

12

A66948

STEP BOLT

BOLT - bearing cap, hex, special, 5/8 NC x 5 inch

12шт.

A66948: BOLT (BEARING CAP). SEE A13-75

1шт.

13

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - cap bolt, 1 inch

12шт.

A58629-WASHER. SEE SB A13-75

1шт.

14

A58859

SHIM,.005" Thk

Oil pump .005" Thk

1шт.

15

REF

INSTRUCTION

BUSHING - camshaft (See Figure 2-45)

5шт.

16

A23656

COCK, DRAIN

VALVE - drain

1шт.

17

A34540

TUBE

- oil filler and dipstick

1шт.

18

A63903

NOZZLE CAP

NOZZLE - piston cooling

6шт.

A63903: NOZZLE (PISTON COOLING). SEE T/S244-95

1шт.

20

A66949

STEP BOLT

BOLT - oil pump and bearing cap, hex, special, 5/8 NC x 7-1/4 inch

2шт.

A66949: BOLT. SEE A13-75

1шт.

21

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - pump bolt, 1 inch

2шт.

A58629-WASHER. SEE SB A13-75

1шт.

22

A154061

DIPSTICK

- oil level

1шт.

23

A153835

TUBE

- extension, oil filler

1шт.

24

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

- 1-3/8 inch

1шт.

A27342: O-RING. SEE NWLSB12-88; T/S #485-90

1шт.

25

L47766

CLAMP

- oil filler tube

1шт.

L47766: CLAMP. SEE NA #10-80

1шт.

26

41-1022

PLUG,Cup, 1 3/8"

- cup, 1-3/8 inch diameter

1шт.

27

A58891

COVER

- pump opening

1шт.

28

A58617

GASKET

- cover

1шт.

A58617: GASKET. SEE NA #9-95, NA #10-95

1шт.

29

221-843

PLUG,Hex Soc, 3/8"-18

- pipe, hex socket head, 3/8 inch PT

1шт.

31

A66737

SWITCH, PRESSURE

SWITCH - engine oil pressure

1шт.

A66737: SWITCH (OIL PRESSURE). SEE SB A8-81, SB A16-85, SB A47-83

1шт.

35

A182017

HEATER ASSY.

HEATER KIT - cylinder block (Replaces A155436) (North America Only)

1шт.

A182017: HEATER KIT (ENGINE BLOCK). SEE EP07-85; NA #9-85, NA #10-85; WL27-85

1шт.

35

A182020

HEATER ASSY.

HEATER KIT - cylinder block (Canada Only), Includes: Refs. 36-38

1шт.

A182020: HEATER KIT (ENGINE BLOCK). SEE EP07-85; NA #9-85, NA #10-85; WL27-85

1шт.

36

NSS

NOT SOLD SEPARAT

ELEMENT - heater IReference No. A1554351, block

1шт.

37

A45114

GASKET

- element, block heater

1шт.

38

A44813

CABLE EXTENSION

CORD ASSEMBLY - 12 inch, block heater

1шт.

A44813: CORD ASSEMBLY (12 INCH). SEE EP07-85; WL27-85

1шт.

39

A44006

SLEEVE

KIT - block heater, Includes: Refs. 40, 41

1шт.

40

NSS

NOT SOLD SEPARAT

SLEEVE - use in block with 2-1/16 inch diameter hole, heater

1шт.

41

NSS

NOT SOLD SEPARAT

SLEEVE - use in block with 2-1/8 inch diameter hole, heater

1шт.
