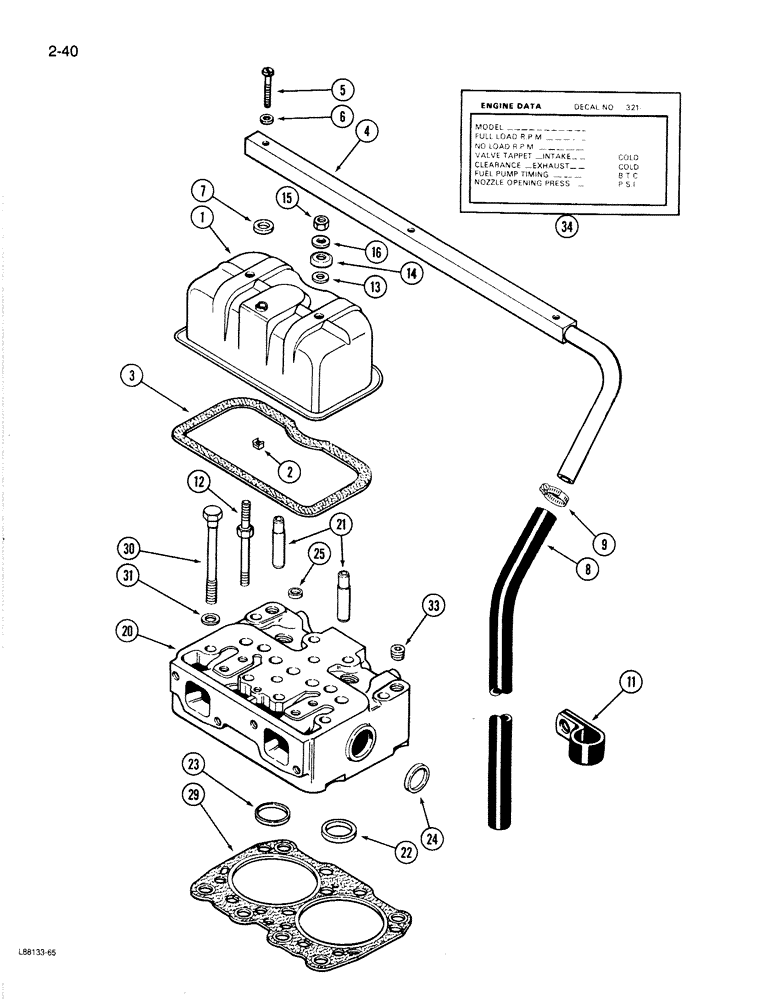

Запчасти Case 1187B (2-40) - CYLINDER HEAD AND COVER, 504BDT ENGINE (02) - ENGINE

1

A166170

COVER

COVER ASSEMBLY - cylinder head, Includes: Ref. 2

3шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - cage, Tinnerman, 1/4 inch NC

1шт.

3

REF

INSTRUCTION

GASKET - cylinder head (See Figure 2-57)

3шт.

4

A166120

TUBE

TUBE - breather

1шт.

5

182-587

SCREW,Cross Pan Hd, 1/4"-20 x 2 1/2"

SCREW - pan head, 1/4 NC x 2-1/2 inch

3шт.

6

A166102

WASHER,6.45mm ID x 12.7mm OD x 0.81mm Thk

WASHER - flat, 1/4 inch

3шт.

7

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

GASKET -, Serial Range: tube-cover

3шт.

8

A156416

HOSE,25.4 mm ID x 1016.00 mm, SAE J200F

Breather

1шт.

9

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP - hose, 1-1/8 to 1-5/16 inch

1шт.

214-255: HOSE CLAMP. SEE NA #9-1993; NUNSB4.193, NUNSB493

1шт.

11

D34033

CLAMP

CLAMP - breather, Serial Range: hose-block

1шт.

D34033: CLAMP. SEE NCRMP00390

1шт.

12

A67121

STUD

STUD - cover and rocker arm bracket

6шт.

13

A142098

GROMMET

GROMMET - cover stud

6шт.

A142098: GROMMET. SEE SB A38-82

1шт.

14

A156097

WASHER,11.94mm ID x 31.22mm OD x 1.32mm Thk

WASHER - cover nut

6шт.

A156097: WASHER. SEE SB A38-82

1шт.

15

129-104

NUT,7/16"-14, G5

NUT, 7/16"-14, G5

6шт.

16

195-529

WASHER,7/16", SAE

WASHER - 15/32 x 59/64 x 1/16 inch

6шт.

20

A138261

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder (Casting No. A152437), Includes: Refs. 21-25

3шт.

20

AR152265

REMAN-CYLINDER HEAD

Cylinder Head

3шт.

20

AC152265

CORE-CYLINDER HEAD

Return Number

3шт.

21

A41783

GUIDE

GUIDE - valve (Set of 2)

2шт.

22

A66192

INSERT

INSERT - exhaust valve seat

2шт.

23

A66191

INSERT

INSERT - intake valve seat

2шт.

24

A34124

PLUG,Cup, 1 5/8", Stainless

PLUG - cup, 1-5/8 inch

2шт.

25

A58620

PLUG,Cup, 3/4", Stainless

PLUG - cup, 3/4 inch

3шт.

29

REF

INSTRUCTION

GASKET - head to block (Includes fire rings) (See Figure 2-57)

3шт.

30

A76638

BOLT

BOLT - head to block, hex, 5/8 NC x 6-1/4 inch

30шт.

A76638: BOLT. SEE SB A13-75

1шт.

31

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - head bolt

30шт.

A58629-WASHER. SEE SB A13-75

1шт.

33

221-843

PLUG,Hex Soc, 3/8"-18

PLUG - socket head, 3/8 inch PT

6шт.

221-843: PLUG (3/8 INCH). SEE NA #2-82; TS #107-93R

1шт.

34

321-3067

DECAL

DECAL - engine data

1шт.
