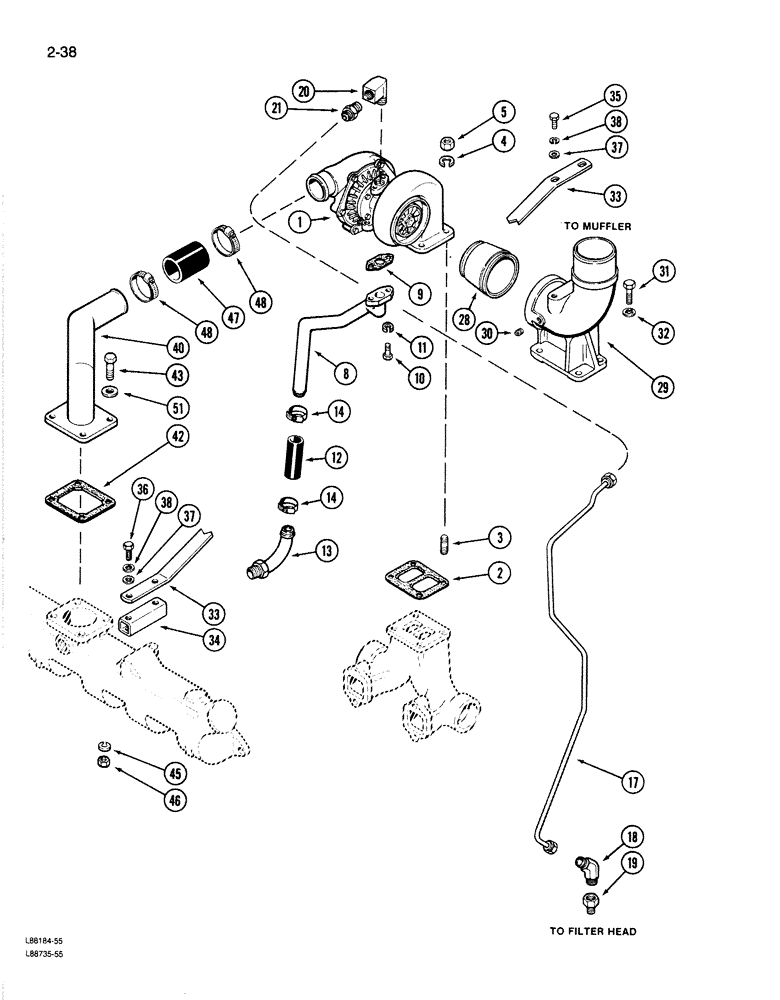

Запчасти Case 1187B (2-38) - TURBOCHARGER SY8TEM, 504BDT ENGINE (02) - ENGINE

1

A157336

TURBOCHARGER

ASSEMBLY - new

1шт.

A48192: TURBOCHARGER ASSEMBLY. SEE NA #7-1993; T/S269-93D

1шт.

1

A48192

REMAN-TURBOCHARGER

Turbocharger Assembly Remanufactured

1шт.

1

A48191

CORE-TURBOCHARGER

Return Part Number, use this part number to return turbocharger core for credit

1шт.

2

A58899

GASKET,0.45mm Thk

-, Serial Range: turbocharger-manifold

1шт.

3

G102128

BOLT

- 3/8 NC x 1-1/2 inch

4шт.

4

492-11038

LOCK WASHER,3/8"

4шт.

492-11038: LOCK WASHER. SEE EBTSB00795; NCRSB00495, NCRSB02194; NSESB00193, NSESB00295, NSESB02395; NSESL00696; NA #6-1995

1шт.

5

131-903

NUT,3/8"-16

NUT - hex, Seez-pruf, 3/8 inch NC

4шт.

8

A62518

TUBE

- oil drain

1шт.

9

A58892

GASKET,1.59mm Thk

- drain tube flange

1шт.

10

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

11

492-11038

LOCK WASHER,3/8"

2шт.

12

A156842

HOSE,22.2 mm ID x 88.90 mm, SAE 30R1 TYPE 1 PER SAE J30

0.90" ID x 3.50", SAE 30R1 type 1 per SAE J30 - Drain Tube

1шт.

13

A58897

FITTING

-, Serial Range: hose-block

1шт.

14

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

214-255: HOSE CLAMP. SEE NA #9-1993; NUNSB4.193, NUNSB493

1шт.

17

A166064

TUBE

- oil supply

1шт.

18

222-95

ELBOW,45 Degree, 5/8"-24 x 1/4" NPT

- tube, 45 degree, 3/8 PT x 1/4 inch

1шт.

19

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

- tube to filter head, 3/8 PT to 1/4 inch

1шт.

20

217-19

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- 90 degree, 1/4 inch PT

1шт.

21

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

CONNECTOR - straight, tube, 3/8 PT x 1/4 inch

1шт.

23

49845

CLAMP

- tube

1шт.

49845: CLAMP. SEE NCRSB00990; TS #318-94R

1шт.

28

A65554

TUBE

CONNECTOR - turbocharger to exhaust elbow

1шт.

29

A61941

ELBOW

- exhaust

1шт.

30

221-841

PLUG

- square head, 1/4 inch PT

1шт.

31

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

413-620: BOLT. SEE NTRSL01890; T/S101-94C

1шт.

32

492-11038

LOCK WASHER,3/8"

4шт.

495-21044: WASHER. SEE NCRSB01694; NUNSB01391; NA #6-1995

1шт.

33

A61944

BRACE

- elbow to intake manifold

1шт.

34

A67057

SPACER

-, Serial Range: brace-manifold

1шт.

35

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

36

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

37

495-21044

WASHER,3/8"

3/8 (7/16 x 1 x 1/16 inch)

4шт.

38

492-11038

LOCK WASHER,3/8"

4шт.

40

A150450

ELBOW

- intake

1шт.

42

A58910

GASKET

- intake, Serial Range: elbow-manifold

1шт.

43

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

45

492-11038

LOCK WASHER,3/8"

4шт.

46

25-106

NUT,3/8"-16, G5

- hex, 3/8 inch NC

4шт.

47

A150449

INTAKE AIR HOSE,2.00" ID x 2.88"

2.00" ID x 2.88"

1шт.

48

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

51

95-6

WASHER,3/8"

- 7/16 x 1 x 1/16 inch

4шт.
