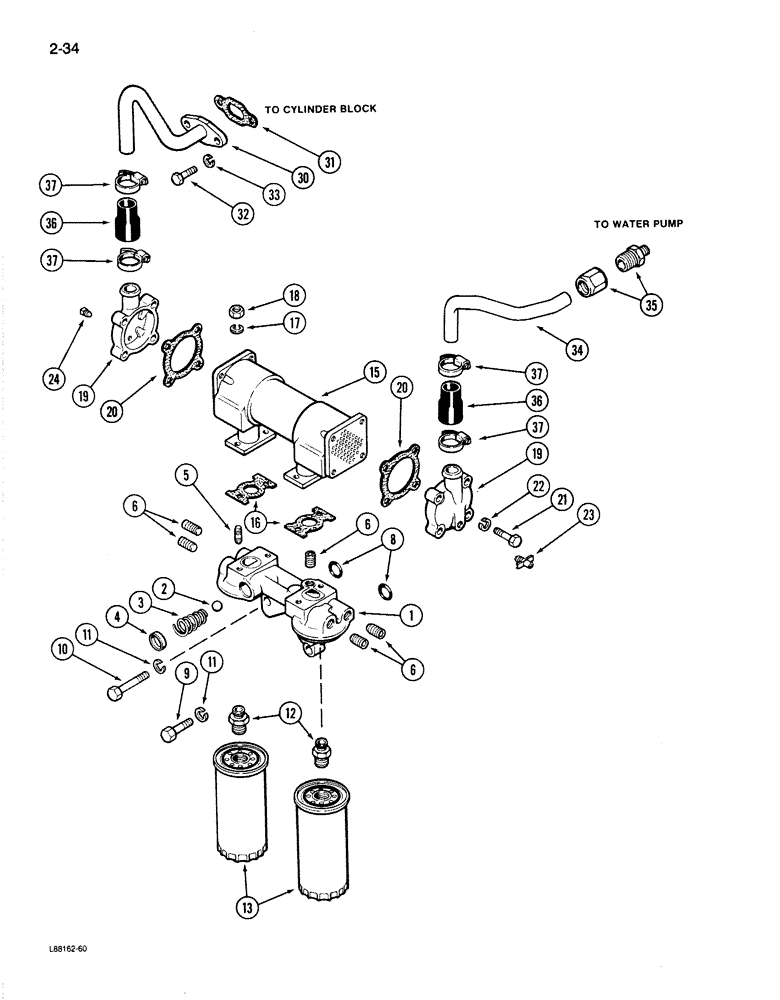

Запчасти Case 1187B (2-34) - OIL FILTER AND HEAT EXCHANGER, 504BDT ENGINE (02) - ENGINE

1

A154541

BASE

ASSEMBLY - filter and heat exchanger, Includes: Refs. 2-6

1шт.

A154541: BASE. SEE T/S33-94, T/S75-94, T/S34-94R

1шт.

2

211-219

BALL

- relief valve, 3/4 inch diameter

1шт.

3

A146897

SPRING

- relief valve, 2-13/16 inch free length

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

- cup 1-1/4 inch diameter

1шт.

5

G102128

BOLT

- 3/8 NC x 1-1/2 inch

4шт.

6

221-844

PLUG,Hex Soc, 1/2"-14

- hex socket head, 1/2 inch PT

5шт.

221-844: PLUG (1/2 INCH). SEE T/S529-94R

1шт.

8

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- oil port, 1-5/16 inch

2шт.

9

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

10

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

1шт.

413-848: BOLT. SEE NHESB036

1шт.

11

195-533

WASHER,1/2", SAE

- 1/2 x 1-1/16 x 3/32 inch

2шт.

12

A63916

ADAPTER

- filter element

2шт.

A63916: ADAPTER. SEE S/B A46-77

1шт.

13

A44081

ENGINE OIL FILTER

ELEMENT - oil filter

2шт.

A44081: ELEMENT. SEE CR08-85

1шт.

15

A75295

OIL COOLER

HEAT EXCHANGER - engine oil

1шт.

16

A65359

GASKET

- heat, Serial Range: exchanger-base

2шт.

17

492-11038

LOCK WASHER,3/8"

4шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

19

A64349

HOOD

COVER - end, heat exchanger

2шт.

20

A63920

GASKET

- cover

2шт.

21

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

8шт.

413-624: BOLT. SEE NTRSB00993; NUNSB00196

1шт.

22

492-11038

LOCK WASHER,3/8"

8шт.

492-11038: LOCK WASHER. SEE EBTSB00795; NCRSB00495, NCRSB02194; NSESB193, NSESB00295, NSESB02395; NSESL00696; NA #6-1995

1шт.

23

217-107

VALVE

- drain, 1/8 inch PT

1шт.

24

221-1849

PLUG

- square head, 1/8 inch PT

1шт.

30

A75296

TUBE

- heat, Serial Range: exchanger-block

1шт.

31

A58670

GASKET

- tube flange

1шт.

32

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

492-11050: LOCK WASHER. SEE NCMSB01092; NCRSB01795; NCTMP00696; NCTSB024.1; NHESB09390; NSESB01295, NSESB02395; NSESL00696; NTEMP02496; NA #1-1995

1шт.

34

A166083

TUBE

- heat exchanger to water pump

1шт.

35

222-2020

FITTING

CONNECTOR - tube, 1 x 3/4 inch PT

1шт.

36

A64353

HOSE

-, Serial Range: tube-cover

2шт.

37

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 13/16 to 1-3/4 inch

4шт.
