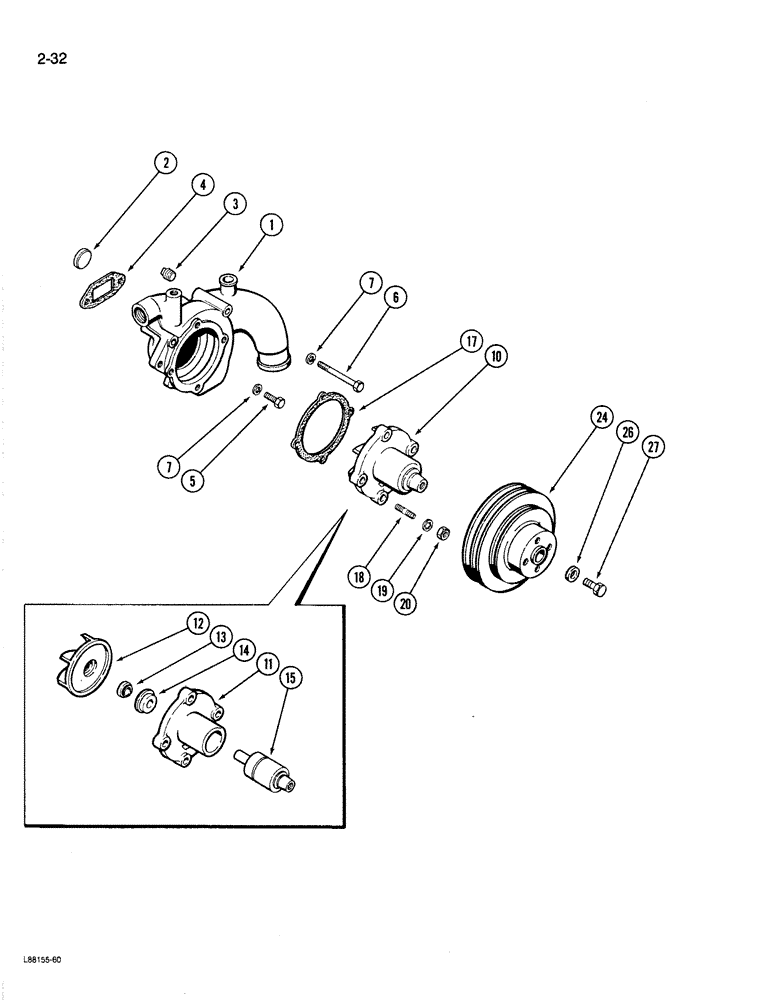

Запчасти Case 1187B (2-32) - WATER PUMP, 504BDT ENGINE (02) - ENGINE

1

A60630

HOUSING

BODY ASSEMBLY - water pump, Includes: Ref. 2

1шт.

2

A58568

PLUG,Cup, 1 3/8", Stainless

PLUG - cup, 1-3/8 inch diameter

1шт.

3

221-845

PLUG,Hex Soc, 3/4"-14

PLUG - square head, 3/4 inch PT

1шт.

4

A58649

GASKET

GASKET -, Serial Range: body-block

1шт.

5

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

BOLT - hex, 3/8 NC x 1-1/4 inch

2шт.

413-620: BOLT. SEE NTRSL01890; T/S101-94C

1шт.

6

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

BOLT, Hex, 3/8"-16 x 4", G5

2шт.

7

492-11038

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

492-11038: LOCK WASHER. SEE NCRSB02194; NSESB193; NSESB00295; NSESB02395; EBTSB00795; NSESL00696; NA #6-1995; NCRSB00495

1шт.

A48369

PUMP

PUMP KIT - water, remanufactured (Includes Ref. 17) (North America only)

1шт.

10

A157145

PUMP, WATER

PUMP ASSEMBLY - water, new, Includes: Refs. 11-15

1шт.

A157145: PUMP ASSEMBLY. SEE NA #7-84, 8-84; NA #4-1995; T/S199-95D; T/S177-95D; T/S460-93

1шт.

10

1342818C1R

REMAN-WATER PUMP

Remanufactured Water Pump

1шт.

10

A48335

CORE-WATER PUMP

Return Part Number - use this part number to return pump core for credit

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

12

A152126

IMPELLER

IMPELLER - water

1шт.

A152126: IMPELLER. SEE S/B A62-77

1шт.

13

A166280

SEAT

SEAT - impeller (Replaces A34000) (Also order A166281)

1шт.

14

A166281

SEAL

SEAL - pump shaft (Replaces A142499) (Also order A166280)

1шт.

15

A156995

BEARING

SHAFT ASSEMBLY - pump bearing

1шт.

A156995: SHAFT ASSEMBLY. SEE NA #4-1995; T/S244-93, T/S177-95D

1шт.

17

A58646

GASKET

GASKET - pump, Serial Range: housing-body

1шт.

18

A166044

STUD

STUD - pump, 3/8 NC x 1-5/16 inch

4шт.

19

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

24

A58650

PULLEY

PULLEY - belt, pump drive

1шт.

26

A155047

RING,13.08mm ID x 26.92mm OD x 8.69mm Thk

WASHER -, Serial Range: pulley-shaft

1шт.

27

114-400

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

BOLT, , Pulley Hex, 1/2"-20 x 1 1/4", G5, Full Thd

1шт.
