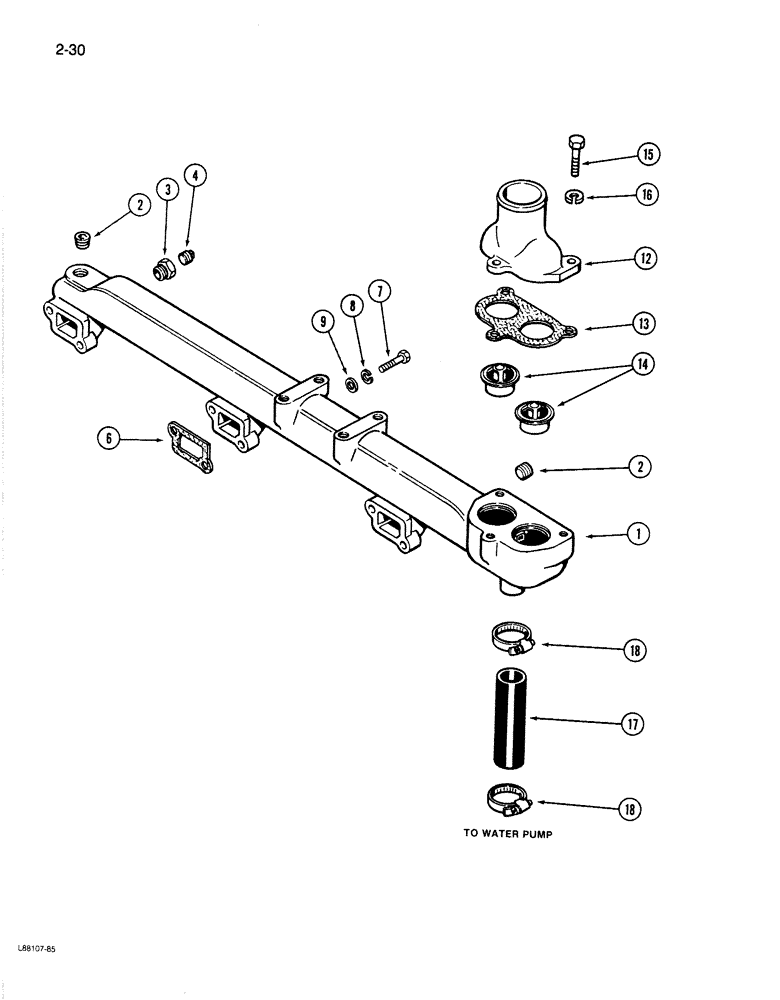

Запчасти Case 1187B (2-30) - WATER MANIFOLD AND THERMOSTAT, 504BDT ENGINE (02) - ENGINE

1

A152742

MANIFOLD

- water

1шт.

2

221-844

PLUG,Hex Soc, 1/2"-14

- hex socket, 1/2 inch PT

2шт.

221-844: PLUG. SEE T/S529-94R. REPLACED BY L127531: SENDER.

1шт.

3

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducer, 1/2 to 3/8 inch PT

1шт.

221-89: BUSHING. SEE NHFSB00692; NA #6-1995

1шт.

4

221-843

PLUG,Hex Soc, 3/8"-18

- hex socket, 3/8 inch PT

1шт.

221-843: PLUG (3/8 INCH PT). SEE NA2082; TS #107-93R

1шт.

6

A166147

GASKET

-, Serial Range: manifold-head

3шт.

7

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

6шт.

8

492-11038

LOCK WASHER,3/8"

6шт.

492-11038: LOCK WASHER. SEE NCRSB02194; NSESB193; NSESB00295; EBTSB00795; NSESL00696; NA #6-1995; NCRSB00495; NSESB02395

1шт.

9

195-525

WASHER,3/8", SAE

- 3/8 x 13/16 x 1/16 inch

6шт.

12

A58638

HOUSING

- thermostat

1шт.

13

A166148

GASKET

-, Serial Range: housing-manifold

1шт.

14

A57641

THERMOSTAT

- 180 degree F

2шт.

15

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

3шт.

413-620: BOLT. SEE NTRSL01890; T/S101-94C

1шт.

16

92-6

LOCK WASHER,3/8"

3шт.

17

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

- water pump, 1-1/4 ID x 5-1/4 inch long

1шт.

18

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 13/16 to 1-3/4 inch

2шт.

THE SENDER USED IN THE AREA OF REF#2.SENDER IS L127531.

1шт.
