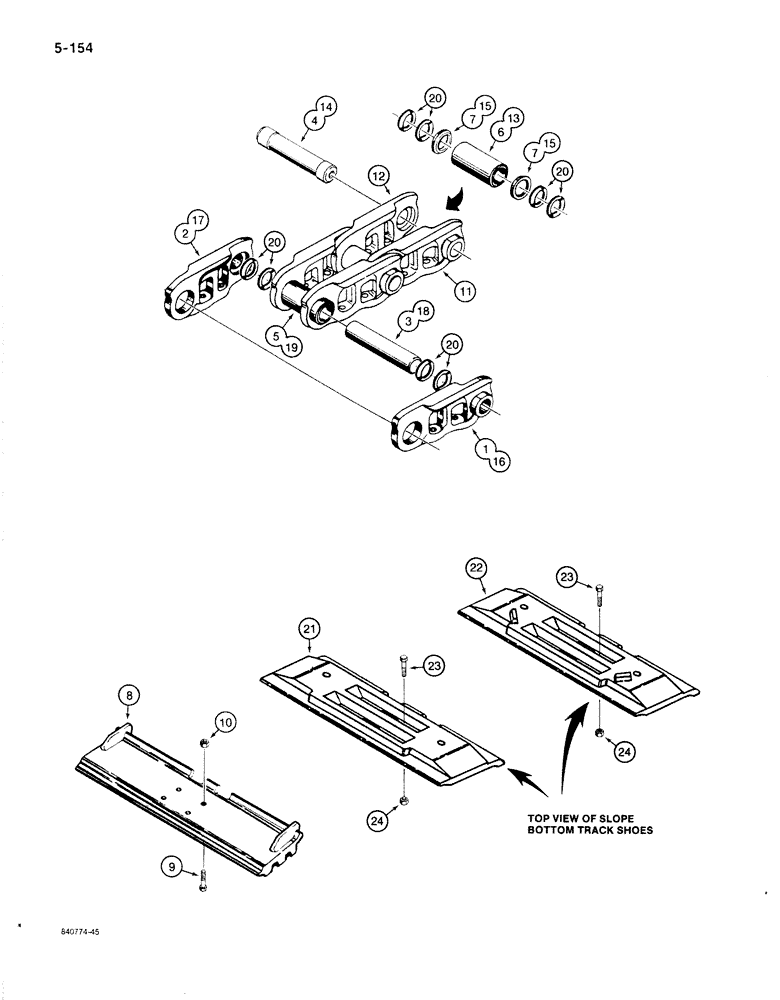

Запчасти Case 1187B (5-154) - TRACK SHOES, LINKS, AND PINS (11) - TRACKS/STEERING

S232252

CHAIN (CE)

CHAIN ASSEMBLY - track, with 23 links, "I" identification

1шт.

Quantities shown are for one track. Two tracks required for machine.

1шт.

S242500

CHAIN (CE)

CHAIN ASSEMBLY - track, with 24 links, "I" identification, Includes: Refs. 1-7

1шт.

Quantities shown are for one track. Two tracks required for machine.

1шт.

1

S108920

LINK

- track, right-hand

24шт.

2

S108921

LINK

- track, left-hand

24шт.

3

S108923

PIN

- Standard

23шт.

4

S108926

PIN

- Master

1шт.

5

S108924

BUSHING

- standard pin

23шт.

6

S108922

BUSHING

- master pin

1шт.

7

S108925

SPACER

- master bushing

2шт.

8

S516392

SHOE

- track, triple grouser with anti-scissor lugs, 24" (610 mm), used with "I" identification track chain

47шт.

Quantities shown are for one track. Two tracks required for machine.

1шт.

9

S89251

BOLT

- track shoe

188шт.

Quantities shown are for one track. Two tracks required for machine.

1шт.

10

R25688

SQUARE NUT

- track shoe

188шт.

Quantities shown are for one track. Two tracks required for machine.

1шт.

S225061

CHAIN (CE)

CHAIN ASSEMBLY - track, with 23 links "C" identification

1шт.

Quantities shown are for one track. Two tracks required for machine.

1шт.

S242499

CHAIN (CE)

CHAIN ASSEMBLY - track, with 24 links "C" identification, Includes: Refs. 11-20

1шт.

Quantities shown are for one track. Two tracks required for machine.

1шт.

11

S89258

LINK

- master, right hand

1шт.

12

S89259

LINK

- master, left hand

1шт.

13

S89265

BUSHING

- master pin

1шт.

14

S101364

PIN

- master

1шт.

15

S101362

SPACER

- master bushing

2шт.

16

S101327

LINK

- track, right hand

23шт.

17

S101328

LINK

- track, left hand

23шт.

18

S101363

PIN

- standard

23шт.

19

S89264

BUSHING

- standard pin

23шт.

20

S101361

WASHER

SEAL - track pin, used with "C" identification track only

96шт.

21

S954052

TRACK SHOE

SHOE - track, slope bottom without grip grouser, 30" (762 mm), used with "C" identification track

47шт.

Quantities shown are for one track. Two tracks required for machine.

1шт.

22

S953224

TRACK SHOE

SHOE - track, slope bottom with grip grouser, 24" (610 mm), used with "C" identification track

47шт.

Quantities shown are for one track. Two tracks required for machine.

1шт.

23

S89251

BOLT

- track shoe

188шт.

Quantities shown are for one track. Two tracks required for machine.

1шт.

24

R25688

SQUARE NUT

- track shoe

188шт.

Quantities shown are for one track. Two tracks required for machine.

1шт.
