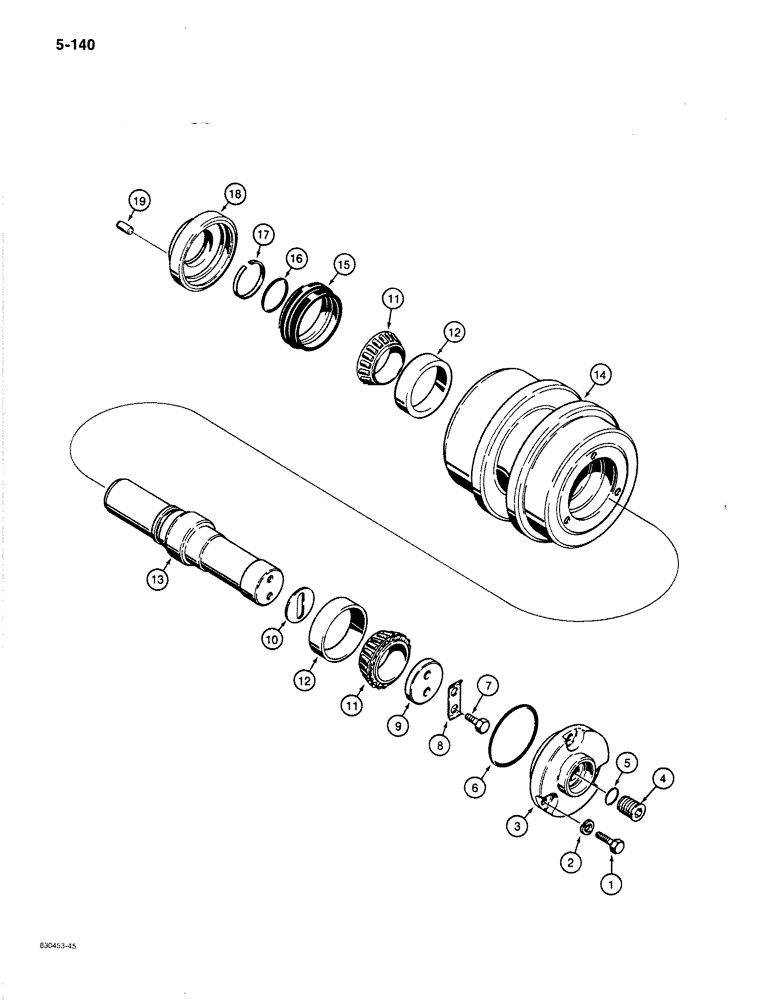

Запчасти Case 1187B (5-140) - TRACK CARRIER ROLLER (11) - TRACKS/STEERING

S239440

ROLLER

ASSEMBLY - carrier, track, Includes: Refs. 1-19

4шт.

1

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

2

192-61

LOCK WASHER,3/8"

3/8"

3шт.

3

N60070

COVER

- end, roller bearing

1шт.

4

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Filler, Incl Ref 5 Hex Soc, 3/4"-16 ORB

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Filler plug

1шт.

6

A30389

O-RING,3.359" ID x 3.637" OD x 0.139"

- end cover to roller

1шт.

7

114-209

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

- hex head, 3/8" - 24 NF x 3/4", plated

2шт.

8

N60065

WASHER

RETAINER - bolt

1шт.

9

N60064

BACK PLATE

PLATE - retainer, roller bearing

1шт.

10

N60072

SPACER

- roller shaft, .004" (0.1 mm)

1шт.

10

N60073

SPACER

- roller shaft, .012" (0.3 mm)

1шт.

10

N60074

SPACER

- roller shaft, .020" (0.5 mm)

1шт.

11

R32217

ROLLER BEARING,50 mm ID x 21.5 mm

CONE - roller bearing

2шт.

12

R32216

BEARING CUP,82 mm OD x 17 mm

CUP - roller bearing

2шт.

13

N60063

SHAFT

- carrier roller

1шт.

14

NSS

NOT SOLD SEPARAT

ROLLER - track carrier

1шт.

15

S113075

SEAL

- oil

1шт.

16

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- shaft to cover

1шт.

17

S115331

RING

- retaining, Serial Range: cover-shaft

1шт.

18

N60068

REAR COVER

COVER - end, oil seal

1шт.

19

N8659

PIN

- dowel, end cover

2шт.
