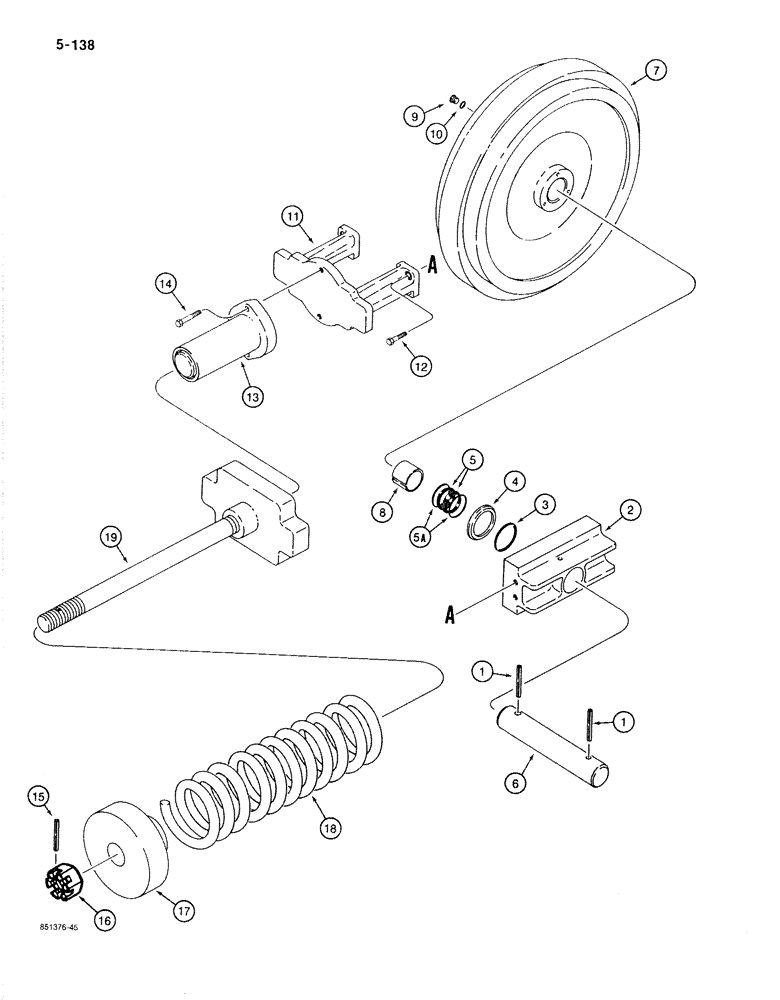

Запчасти Case 1187B (5-138) - TRACK ADJUSTER AND IDLER (11) - TRACKS/STEERING

S516372

FRONT IDLER

IDLER ASSEMBLY - track, not serviced separately, order individual component parts list below for service, Includes: Refs. 1-10

2шт.

1

138-211

LOCK PIN,1/2" x 3 1/4", Slotted

PIN, 1/2" x 3 1/4", Slotted

2шт.

2

S617222

BRACKET

- idler wheel

2шт.

3

S5928

O-RING,0.21" Thk x 2.725" ID, -335, Cl 5, 75 Duro

- idler bracket

2шт.

4

S241918

WASHER

- idler shaft

2шт.

S209139

SEAL

ASSEBLY - idler wheel, Includes: Refs. 5, 5A

2шт.

5

NSS

NOT SOLD SEPARAT

RETAINER - seal

2шт.

5a

S90508

SEAL

- oil, rubber

2шт.

6

S240897

SHAFT

- idler

1шт.

7

S617189

WHEEL

- idler

1шт.

8

S241919

BUSHING

- idler wheel

2шт.

9

87035062

PLUG,Hex, 1/2"-20 ORB

Filler, Idler wheel, Includes Ref. 10 Hex Soc, 1/2"-20 ORB

1шт.

11

S616488

YOKE

- idler mounting

2шт.

12

814-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

- hex head, 12 mm - 1.75 x 40 mm

8шт.

13

S515251

CYLINDER

ASSEMBLY - track adjustment, parts list Figure 5-136

2шт.

14

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

- hex head, 12 mm - 1.75 x 45 mm

4шт.

S516757

SPRING ASSEMBLY - track adjuster, not serviced separately, order individual component parts listed below for service, Includes: Refs. 15-19

2шт.

15

138-182

LOCK PIN,3/8" x 3", Slotted

PIN, 3/8" x 3", Slotted

1шт.

16

25-3032

SLOTTED NUT,2"-4.5, G5, Hvy

NUT - hex, slotted, 2" - 4-1/2 NC

1шт.

17

S242422

FLANGE

- spring retaining

1шт.

18

S239958

SPRING

- track tension

1шт.

19

S240930

GUIDE

- tension spring

1шт.

10

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, plug

1шт.
