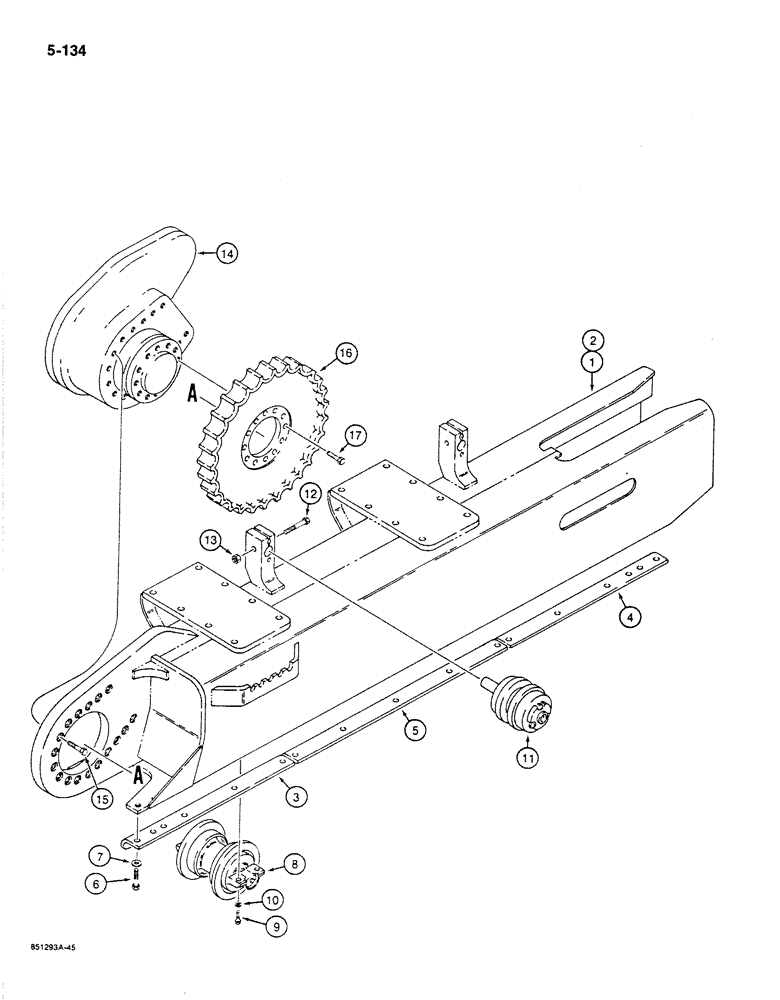

Запчасти Case 1187B (5-134) - TRACK FRAMES AND DRIVE SPROCKET (11) - TRACKS/STEERING

1

S957071

FRAME

- track, right-hand

1шт.

2

S957070

FRAME

- track, left-hand

1шт.

3

S516989

GUARD

PLATE - wear, track frame, right-hand rear outer and front inner, left-hand rear inner and front outer

4шт.

4

S516987

GUARD

PLATE - wear, track frame, right-hand rear inner and front outer, left-hand rear outer and front inner

4шт.

5

S516988

GUARD

PLATE - wear, track frame, center, right-hand and left-hand inner and outer

4шт.

6

26-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 8

- hex head, 3/4" - 10 NC x 1-3/4", grade 8

68шт.

7

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

- flat, special, hardened

68шт.

8

S505093

ROLLER

- track, single flange, see Figures 5-142 - 5-146 for correct roller and components

12шт.

8

S507721

ROLLER

- track, double flange, see Figures 5-148 - 5-152 for correct roller and components

4шт.

9

826-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

64шт.

10

192-165

LOCK WASHER,5/8"

WASHER, LOCK, , Used with 16 mm bolts 5/8"

64шт.

11

S239440

ROLLER

- carrier, upper, parts list Figure 5-140

4шт.

12

814-20090

BOLT,Hex, M20 x 2.5 x 90mm, Cl 8.8

- hex head, 20 mm - 2.5 x 90 mm

4шт.

13

825-1020

NUT,M20, Cl 8

- hex, 20 mm - 2.5, plated

4шт.

14

S618764

TRANSMISSION

ASSEMBLY - final drive, parts list Figure 6-158 and 6-160

2шт.

15

826-20065

BOLT,Hex, M20 x 2.5 x 65mm, Cl 10.9

- hex head, 20 mm - 2.5 x 65 mm, class 10.9

34шт.

16

S956481

SPROCKET ASSY.

SPROCKET - track drive

2шт.

17

826-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

- hex head, 20 mm - 2.5 x 50 mm, class 10.9

24шт.
