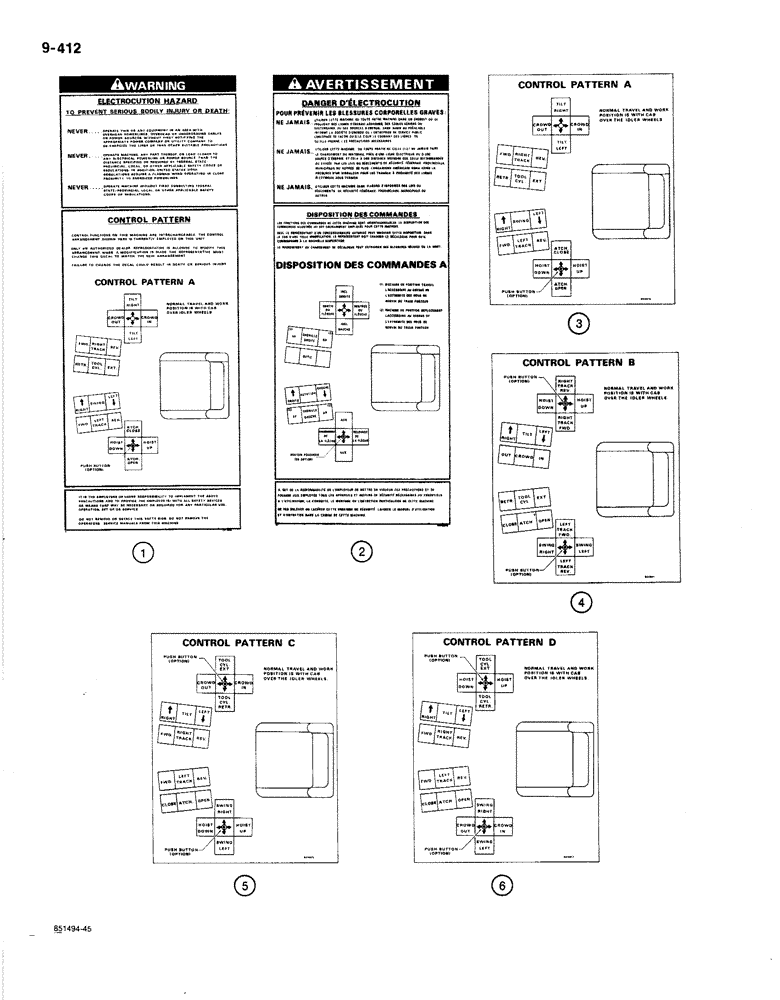

Запчасти Case 1187B (9-412) - DECALS, OPERATOR CONTROL PATTERNS (09) - CHASSIS

1

321-6669

DECAL

- complete, with Control Pattern A, standard, English language

1шт.

Part of Decal Kit P/N S618852

1шт.

2

321-6670

DECAL

- complete, with Control Pattern A, standard, French language

1шт.

Part of Decal Kit P/N S618853

1шт.

3

S516970

PRODUCT GRAPHIC

DECAL - Control Pattern A, replacement, use instruction print S618876 for application

1шт.

4

S516971

PRODUCT GRAPHIC

DECAL - Control Pattern B, optional, use instruction print S618876 for application

1шт.

5

S516972

PRODUCT GRAPHIC

DECAL - Control Pattern C, optional, use instruction print S618876 for application

1шт.

6

S516973

PRODUCT GRAPHIC

DECAL - Control Pattern D, optional, use instruction print S618876 for application

1шт.

S618852

KIT

- decal, English, includes Ref. 1 above and Refs. 1 - 10 on Figure 9-406 and Refs. 1 - 10, and 25 - 27 on Figure 9-408

1шт.

S618853

KIT

- decal, French, includes Ref. 2 above and Refs. 1 - 10 on Figure 9-406 and Refs. 1 - 9, 17 and 18 on Figure 9-410

1шт.
