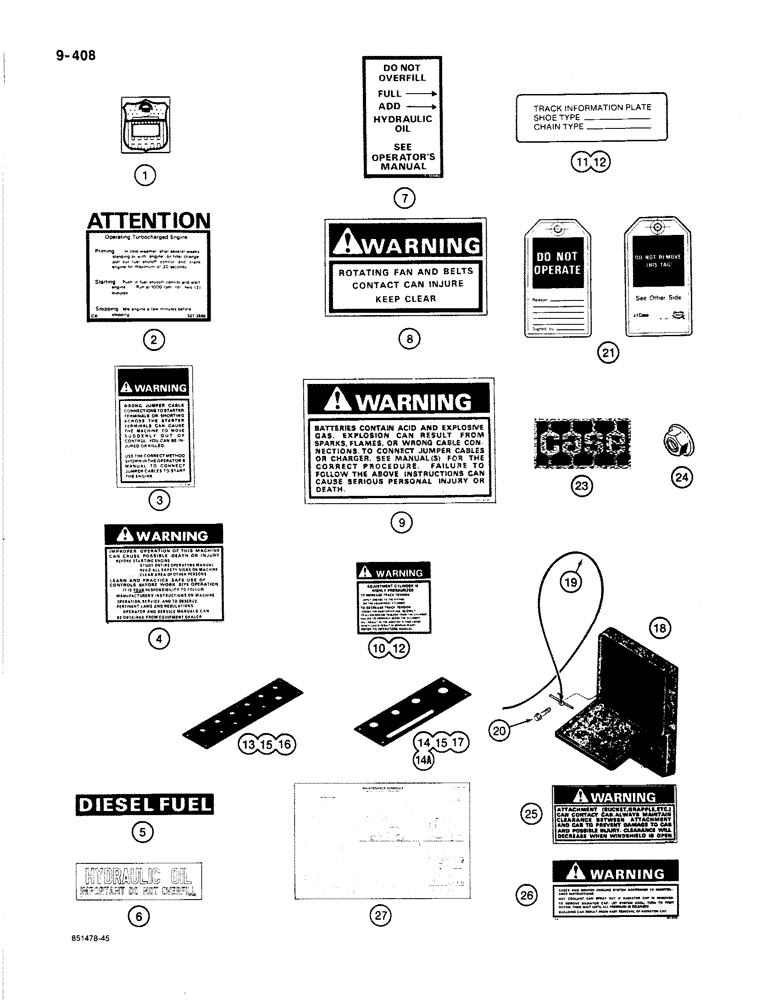

Запчасти Case 1187B (9-408) - DECALS (09) - CHASSIS

1

S242429

DECAL

- PCSA

1шт.

Part of English Decal Kit, P/N S618852

1шт.

2

321-2605

DECAL

- turbocharger operating precautions

1шт.

Part of English Decal Kit, P/N S618852

1шт.

3

321-6718

DECAL

- Warning, wrong jumper cable connections to starter terminals

1шт.

Part of English Decal Kit, P/N S618852

1шт.

4

S231311

DECAL

- Warning, safe operation

1шт.

Part of English Decal Kit, P/N S618852

1шт.

5

321-2601

DECAL

- diesel fuel

1шт.

Part of English Decal Kit, P/N S618852

1шт.

6

S80209

DECAL

- hydraulic oil fill

1шт.

Part of English Decal Kit, P/N S618852

1шт.

7

S233480

DECAL

- hydraulic oil level

1шт.

Part of English Decal Kit, P/N S618852

1шт.

8

321-3596

DECAL

- Warning, engine fan

3шт.

Part of English Decal Kit, P/N S618852

1шт.

9

321-6714

DECAL

- Warning, batteries contain acid and explosive gas

1шт.

Part of English Decal Kit, P/N S618852

1шт.

10

321-6272

DECAL

- Warning, track adjustment cylinder

2шт.

Part of English Decal Kit, P/N S618852

1шт.

11

S241890

DECAL

- identification, track type

1шт.

12

S23395

SCREW

- drive, No. 7 - 32 NC x 5/16", decal plate attaching, not shown

12шт.

13

321-6098

PANEL

DECAL - instrument panel, left-hand console

1шт.

14

321-6097

PANEL

DECAL - instrument panel, right-hand console, models with Case engine only

1шт.

14a

321-6457

DECAL

- instrument panel, right-hand console, models with Detroit Diesel engine only

1шт.

15

179-156

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

- machine, oval Phillips head, No. 10 - 24 NC x 3/4", black not shown

10шт.

16

S117167

CLIP

NUT - U-type, No. 10 - 24 NC, used on left-hand console, not shown

6шт.

17

86632551

NUT,#10-24, GB

NUT, LOCK, , Used on RH console, Not shown #10-24, GB

4шт.

18

S511692

BOX

- operators manual

1шт.

19

A141917

ROPE

CORD -, Serial Range: manual-box

1шт.

20

S40799

SCREW

- self tapping, hex washer head, plated, manual, Serial Range: box-cab

2шт.

21

321-4614

TAG

- do not operate

1шт.

22

REF

INSTRUCTION

DECAL - engine data, Case engine only, not shown, see Figure 41

1шт.

23

321-4739

EMBLEM

- Case, on cab left-hand side behind door

1шт.

24

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - push-on type, 1/4", emblem attaching

2шт.

25

321-6694

DECAL

- Warning, attachment to cab clearance

1шт.

Part of English Decal Kit, P/N S618852

1шт.

26

321-6672

DECAL

- Warning, cooling system service

1шт.

Part of English Decal Kit, P/N S618852

1шт.

27

S618895

DECAL

- Maintenance Schedule

1шт.

Part of English Decal Kit, P/N S618852

1шт.

S618852

KIT

- decal, English, includes Refs. 1-10, and 25-27 above and 1 - 10 on Figure 9-406, and Ref. number 1 on Figure 9-412

1шт.
