Запчасти Case 1187B (9-404) - LOGGER CAB GLASS (09) - CHASSIS

1

REF

INSTRUCTION

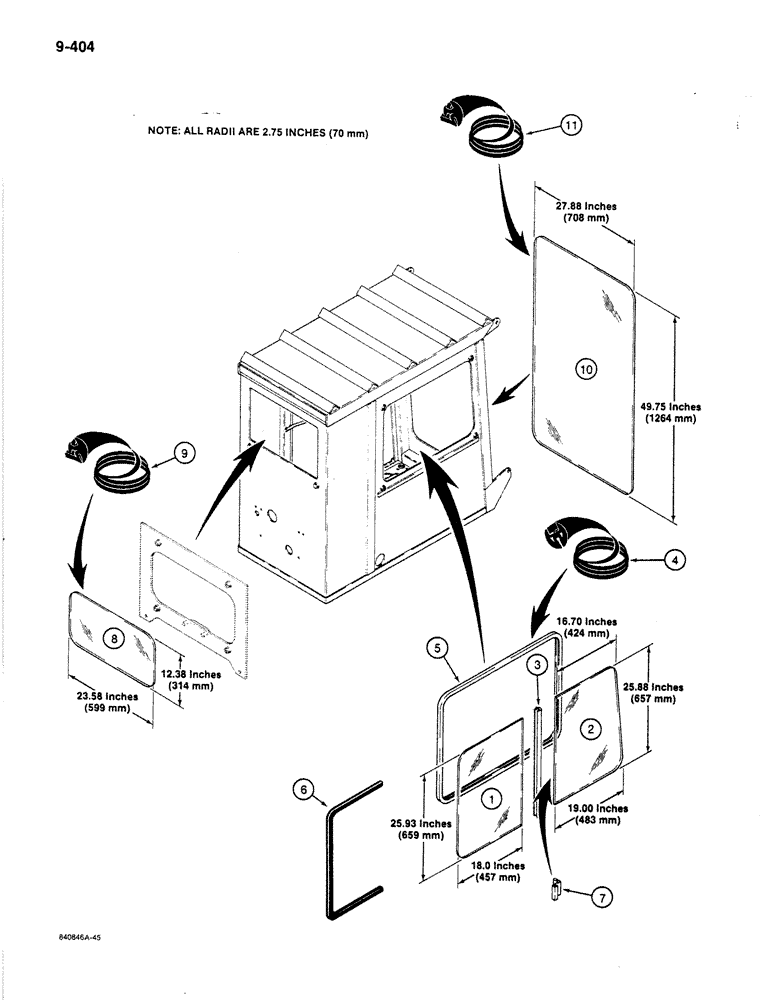

GLASS - cab, door and right side, rear, stationary, see Figure 9-404 for dimensions

2шт.

All glass to be obtained from local source and must be 7/32" (6 mm) thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673A).

1шт.

2

REF

INSTRUCTION

GLASS - cab, door and right side, front, moveable, see Figure 9-404 for dimensions

2шт.

All glass to be obtained from local source and must be 7/32" (6 mm) thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673A).

1шт.

3

REF

INSTRUCTION

SEAL - wiper, attaches to stationary glass, each side 26" (660 mm) long, cut from S118385 bulk, see below

2шт.

4

REF

INSTRUCTION

MOULDING - cab frame to glass channel, door and cab side, each side 10 ft (3048 mm) long, cut from S118634 bulk, see below

2шт.

5

REF

INSTRUCTION

CHANNEL - glass, rubber with felt lining, each side 10 ft (3048 mm) long, use two pieces to S118387 and cut to required length, see below

2шт.

6

REF

INSTRUCTION

SEAL - rubber, rear stationary glass, each side 5 ft (1524 mm) long, cut from S118386 bulk, see below

2шт.

7

S118207

HANDLE

- pull, side window

2шт.

8

REF

INSTRUCTION

GLASS - cab, rear window, see Figure 9-404 for dimensions

1шт.

All glass to be obtained from local source and must be 7/32" (6 mm) thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673A).

1шт.

9

REF

INSTRUCTION

MOULDING - rear window glass, 68-1/2" (1740 mm) long, cut from S118384 bulk, see below

1шт.

10

REF

INSTRUCTION

GLASS - windshield, see Figure 9-404 for dimensions

1шт.

All glass to be obtained from local source and must be 7/32" (6 mm) thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673A).

1шт.

11

REF

INSTRUCTION

MOULDING - windshield glass, 154" (3912 mm) long, cut from S118384 bulk, see below

1шт.

S118384

SEAL

MOULDING - glass, bulk roll, 50 ft (15.24 m) long

1шт.

S118385

SEAL

- glass wiper, bulk roll, 6 ft (1.83 m) long

1шт.

S118386

SEAL

SEAL - glass, 50 ft (15.24 m) long

1шт.

S118387

SEAL

CHANNEL - glass, bulk roll, 9 ft (2.74 m) long

1шт.

S118634

SEAL

MOULDING - glass, bulk roll, 50 ft (15.24 m) long

1шт.
