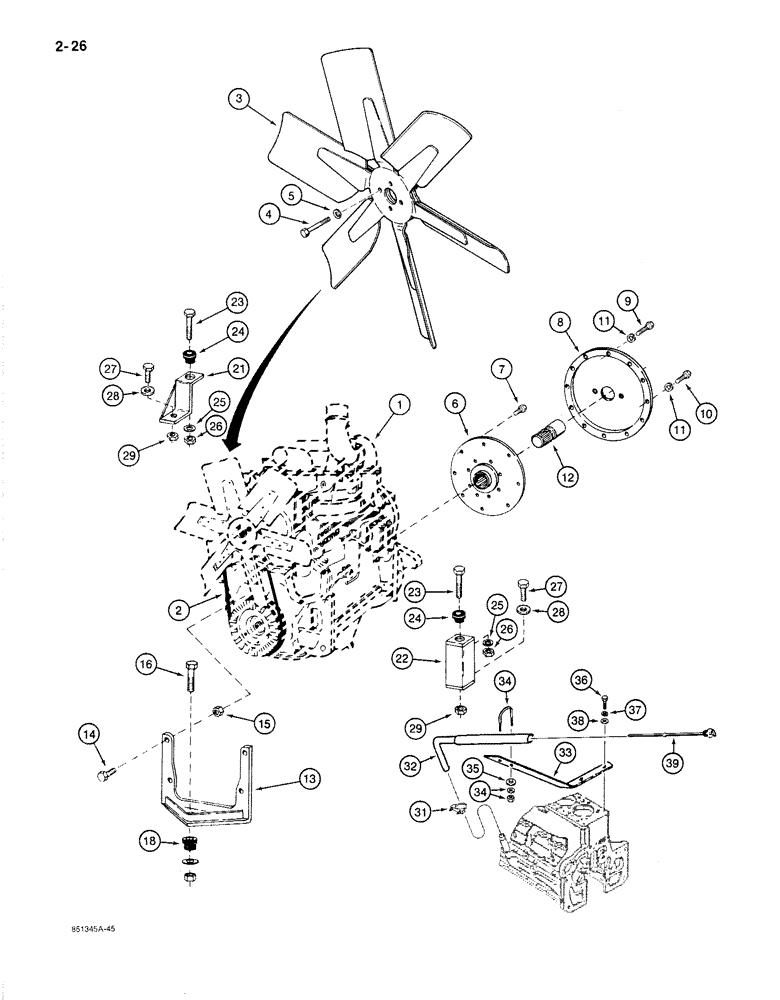

Запчасти Case 1187B (2-26) - ENGINE MOUNTING AND ADAPTING PARTS, USED ON MODELS WITH CASE ENGINE (02) - ENGINE

1

REF

INSTRUCTION

ENGINE - Case 504BDT Diesel, parts list Figures 2-30 - 2-58 and 3-66 - 3-76

1шт.

2

A59296

SET OF BELTS,0.69" W x 60.00" L

SET OF 2 BELTS , Matched, Fan and alternator 0.69" W x 60.00" L

1шт.

A59296: BELT SET. SEE NA4-80

1шт.

3

A173098

FAN

- pusher, engine cooling

1шт.

4

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

6

S515001

DRIVE PLATE

PLATE - drive

1шт.

7

121-204

BOLT,Lock Place, Hex, 3/8" - 16 x 5/8", Gr 8

- special, self-locking, 3/8" - 16 NC x 5/8"

8шт.

8

S52615

MOUNTING PARTS

PLATE - mounting, hydraulic pump

1шт.

9

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

10

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

10шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

192-21: LOCK WASHER. SEE NENSB02488

1шт.

12

S229599

DRIVE SHAFT

COUPLING - pump drive shaft

1шт.

13

S240298

BRACKET

- front engine mounting

1шт.

14

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

15

131-450

NUT,3/4"-10

NUT - hex, self-locking, 3/4" - 10 NC

4шт.

16

113-718

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

1шт.

113-718: BOLT. SEE NHESB01288

1шт.

18

S112578

MOUNTING PARTS

INSULATOR - rubber

1шт.

19

195-2270

WASHER,13/16" x 3" x .238", HDN

- flat, 3/4", special, lower

1шт.

20

131-450

NUT,3/4"-10

NUT - hex, self-locking, 3/4" - 10 NC

1шт.

21

S240379

BRACKET

- right-hand rear, engine mounting

1шт.

22

S232820

BRACKET

- left-hand rear, engine mounting

1шт.

23

113-727

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

- hex head, 3/4" -10 NC x 4-3/4", plated

2шт.

24

S112578

MOUNTING PARTS

INSULATOR - rubber

2шт.

25

195-2270

WASHER,13/16" x 3" x .238", HDN

- flat, 3/4" special, lower

2шт.

195-2270: WASHER. SEE T/S 058-91

1шт.

26

131-450

NUT,3/4"-10

NUT - hex, self-locking, 3/4" - 10 NC

2шт.

27

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex head, 3/4" - 10 NC x 2-1/2", grade 8

2шт.

28

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

- flat, 3/4", special

2шт.

S94643: WASHER. SEE NWLMP00191

1шт.

29

131-450

NUT,3/4"-10

NUT - hex, self-locking, 3/4" - 10 NC

2шт.

30

345-84

ADHESIVE

SEALANT - extension tube to engine, 3 oz. tube, not shown, oil dipstick, extension and mounting parts

1шт.

31

L47766

CLAMP

- oil dipstick extension, and mounting parts

1шт.

L47766: CLAMP. SEE NA10-80

1шт.

32

S618231

TUBE,26.1, 26.3" L

- oil dipstick extension, and mounting parts

1шт.

33

S516455

BRACKET

- extension tube to block, oil dipstick, and mounting parts

1шт.

34

R11500

CLAMP

- extension to bracket, includes hardware, oil dipstick and mounting parts

1шт.

35

195-102

WASHER,1/4"

- flat, , plated, oil dipstick, extension and mounting parts 1/4"

2шт.

195-102: WASHER. SEE NTRMP05588

1шт.

36

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Oil dipstick, extension and mounting parts Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

37

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Oil dipstick, extension and mounting parts 1/2"

2шт.

38

195-530

WASHER,7/16"

- flat, 1/2", plated, oil dipstick, extension, and mounting parts

2шт.

39

A155633

DIPSTICK

- oil level, extension, and mounting parts

1шт.
