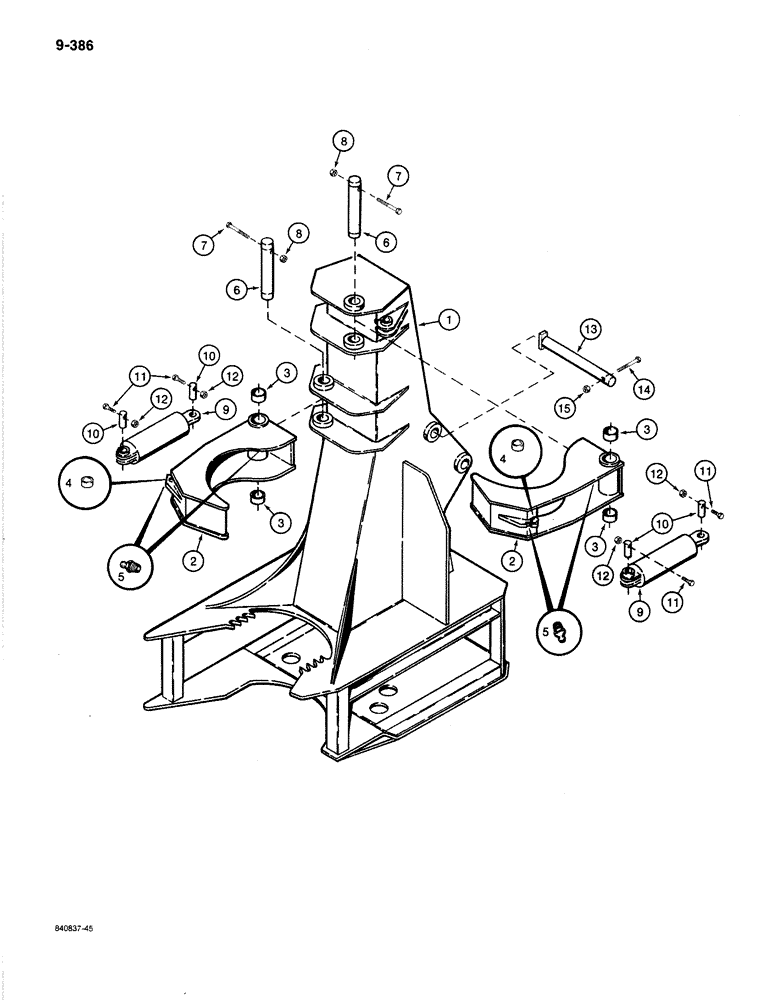

Запчасти Case 1187B (9-386) - ROTARY CUTTER, MAIN FRAME AND GRAB ARMS (09) - CHASSIS

1

S954829

FRAME

- main, rotary cutter

1шт.

2

S504968

ARM ASSY.

ARM ASSEMBLY - grab, Includes: Refs. 3, 4

2шт.

3

S214652

BUSHING

- mounting pin, at main frame

2шт.

4

S23796

BUSHING

- bracket, cylinder mounting

1шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

4шт.

6

S89283

PIN

- mounting, grab, Serial Range: arm-frame

2шт.

7

113-630

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex head, 5/8" - 11 NC x 6", plated

2шт.

8

131-64

LOCK NUT,5/8"-11, GC

NUT - hex, self-locking, 5/8" - 11 NC, plated

2шт.

9

S618357

CYLINDER ASSY.

CYLINDER ASSEMBLY - hydraulic, grab arm, parts list Figure 8-326

2шт.

10

S46134

PIN,37.95mm OD x 98.55mm L

- mounting, cylinder to arm and main frame

4шт.

11

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

4шт.

12

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC, plated

4шт.

13

S220251

PIN ASSY.

PIN - mounting, cutter frame to tool boom

2шт.

14

26-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 8

- hex head, 5/8" - 11 NC x 6", grade 8

2шт.

15

131-460

LOCK NUT,5/8"-11

NUT - hex, self-locking, 5/8" - 11 NC

2шт.
