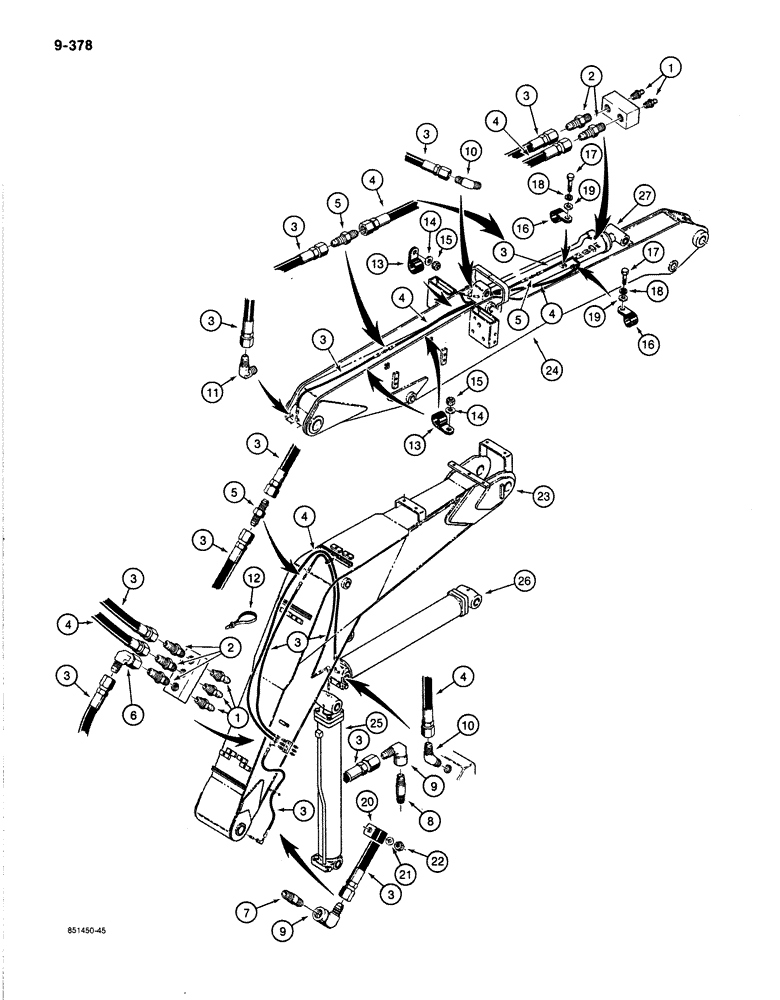

Запчасти Case 1187B (9-378) - LUBRICATION SYSTEM, BOOM AND ARM (09) - CHASSIS

1

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

5шт.

2

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - male, straight

5шт.

3

S77467

HOSE

- 38" (965 mm) long, lubrication

6шт.

4

S120387

HOSE ASSY.

HOSE - 100" (2540 mm) long, lubrication

2шт.

5

218-431

UNION,7/16" - 20 Male JIC x 7/16" - 20 Male JIC

CONNECTOR - male, straight

3шт.

6

218-5228

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

- 90 degree, swivel

1шт.

7

221-111

PIPE,Nipple, 1/8" NPT x 3"

NIPPLE - pipe, 1/8" NPT x 3"

1шт.

8

221-1908

PIPE,Nipple, 3/4" NPT x 2", X-Strng

NIPPLE - pipe, 1/8" NPT x 2"

1шт.

9

218-511

ELBOW,90º, 7/16"-20, 37º x 1/8"-27, Fem NPTF

- street, 90 degree

2шт.

10

218-531

ELBOW,45 Degree, 7/16-20" 37 Degree x 1/8"-27, NPTF

- male, 45 degree

2шт.

11

218-431

UNION,7/16" - 20 Male JIC x 7/16" - 20 Male JIC

ELBOW - male, 90 degree

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

13

T42284

CLAMP

- hoses to studs on arm, 5/8" ID

4шт.

14

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

4шт.

15

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

4шт.

16

T42284

CLAMP

- hose to tapped block on arm

2шт.

17

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

2шт.

18

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

19

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

2шт.

20

T42284

CLAMP

- hose to stud on boom, 5/8" ID

1шт.

21

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

22

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

1шт.

23

REF

INSTRUCTION

BOOM ASSEMBLY - logger, see Figures 9-372 and 9-374 for correct boom

1шт.

24

S956840

BOOM

ARM ASSEMBLY - logger, parts list Figure 9-376

1шт.

25

S956915

CYLINDER ASSY.

CYLINDER ASSEMBLY - boom, parts list Figure 8-314

1шт.

26

S956911

CYLINDER

ASSEMBLY - arm, parts list Figure 8-316

1шт.

27

REF

INSTRUCTION

CYLINDER ASSEMBLY - tool, see Figures 8-316 and 8-318 for correct cylinder and components

1шт.
