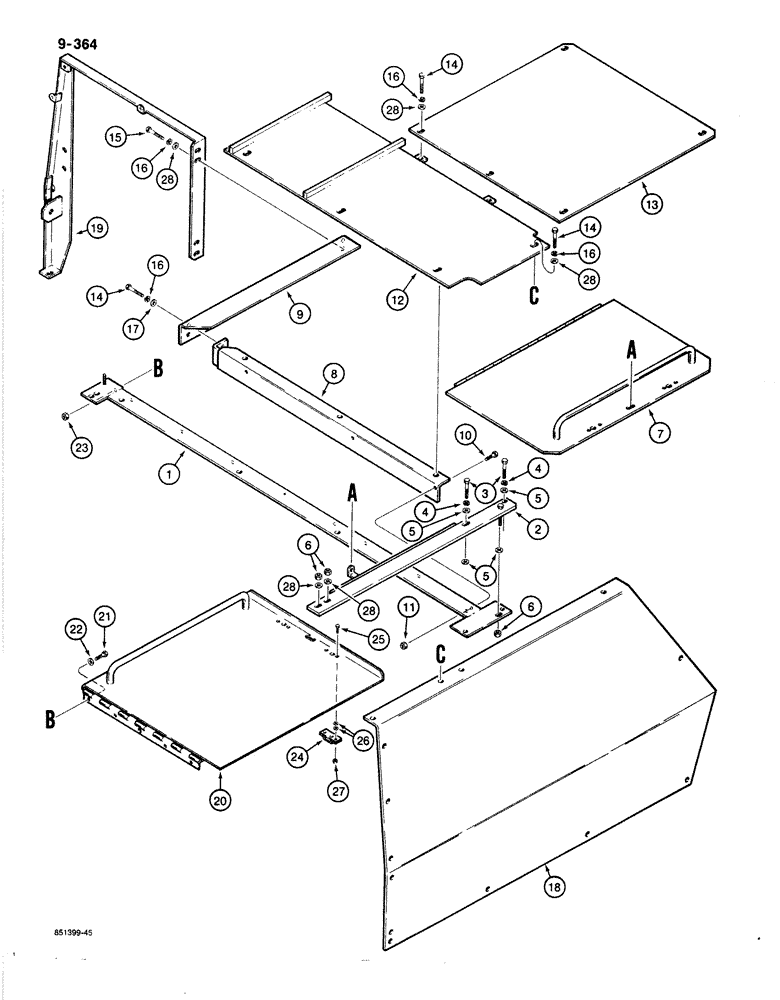

Запчасти Case 1187B (9-364) - TOP ACCESS COVERS (09) - CHASSIS

1

S618031

BRACKET

- crossover, left and right shroud, see Figure 9-358 for left-hand shrouds

1шт.

2

S241769

BRACKET

- support, top access cover and oil cooler

1шт.

3

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

5

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", hardened, plated

4шт.

6

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC, plated

3шт.

7

S516246

DOOR ASSY.

DOOR - access, engine top, see Figure 9-358 for other engine covers

1шт.

8

S516945

BRACKET

- rear support, top access cover

1шт.

9

S516233

BRACKET

- side support, top access cover

1шт.

10

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

11

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

3шт.

12

S618051

COVER ASSY

COVER - top access, center

1шт.

13

S516259

SHROUD

COVER - top access, front

1шт.

14

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

11шт.

15

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

13шт.

17

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", hardened, plated

2шт.

18

S618087

SHROUD ASSY.

SHROUD - engine, right front

1шт.

19

S618798

SUPPORT ASSY.

BRACE - front, left-hand door, see Figure 9-358 for left-hand shrouds

1шт.

20

S516236

DOOR ASSY.

DOOR - top access, left-hand

1шт.

21

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

5шт.

22

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat, 3/8", hardened, plated

5шт.

23

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

5шт.

24

S110414

LOCK

- top access door

2шт.

25

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.

26

195-103

WASHER,5/16"

- flat, 1/4", plated

1шт.

27

131-461

LOCK NUT,1/4"-20

NUT - hex, self-locking, 1/4" - 20 NC, plated

4шт.

28

S95569

WASHER

- flat, 1/2" ID x 1-3/8" OD, hardened, plated

13шт.
