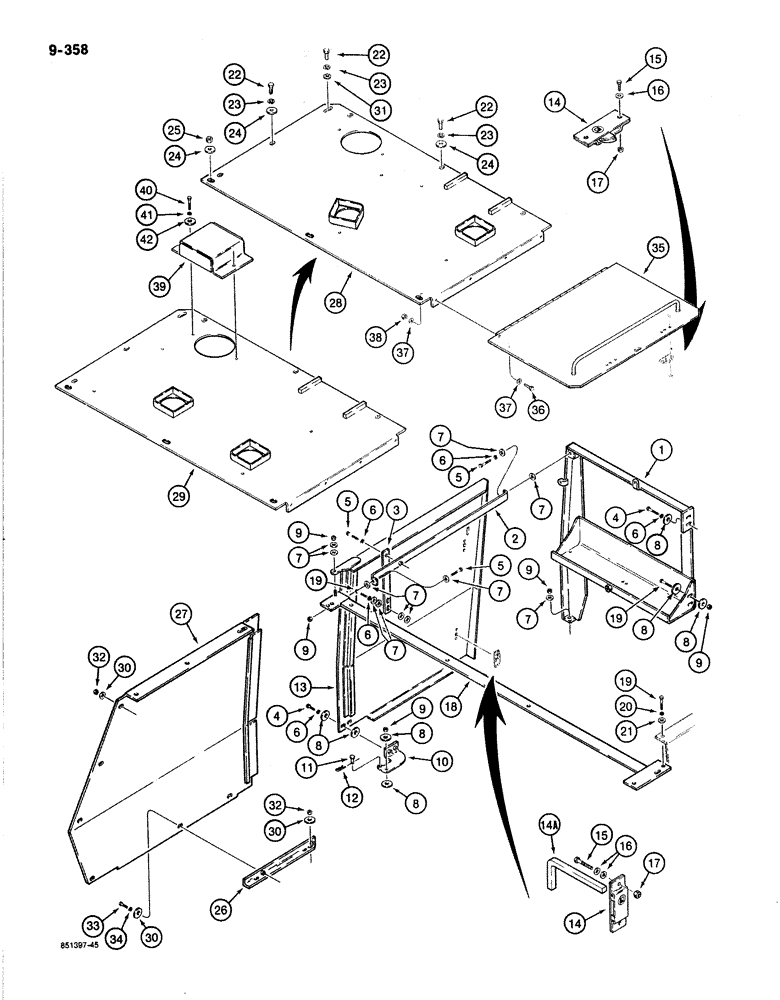

Запчасти Case 1187B (9-358) - ENGINE COVER AND LEFT-HAND SIDE PANELS (09) - CHASSIS

1

S618798

SUPPORT ASSY.

BRACE - front, left-hand door, with battery box

1шт.

2

S241914

BRACE

- horizontal, left-hand door

1шт.

3

S241534

BRACE

- vertical, left-hand door, rear

1шт.

4

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

5

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

3шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

7

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2" ID x 1-1/16" OD, hardened, plated

1шт.

8

S95569

WASHER

- flat, 1/2" ID x 1-3/8" OD, hardened, plated

1шт.

9

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC, plated

6шт.

10

S241540

HINGE

- left-hand door, lower

1шт.

11

S10775

PIN

- clevis, door holder

1шт.

12

S120261

PIN

- hair, clevis pin, plated

1шт.

13

S617805

DOOR ASSY.

DOOR - access, left front side

1шт.

14

S110414

LOCK

- door, left front and top

4шт.

14a

S115083

KEY

- lock, access door

1шт.

15

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

8шт.

16

195-103

WASHER,5/16"

- flat, , plated, use with 1/4" diameter bolt 5/16"

1шт.

17

131-461

LOCK NUT,1/4"-20

NUT - hex, self-locking, 1/4" - 20 NC, plated

8шт.

18

S618031

BRACKET

- crossover, left and right shroud

1шт.

19

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

5шт.

20

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

21

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", hardened, plated

1шт.

22

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

7шт.

23

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

7шт.

24

S95569

WASHER

- flat, 1/2" ID x 1-3/8" OD, hardened, plated

8шт.

25

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC, plated

3шт.

26

S241521

ANGLE

BRACKET - left rear, Serial Range: shroud-turntable

1шт.

27

S617798

SHROUD ASSY.

SHROUD - engine, left rear

1шт.

28

S618170

SHROUD

COVER - engine, top, used with Case engine

1шт.

29

S617810

SHROUD

COVER - engine, top, used with Detroit Diesel engine

1шт.

30

S95569

WASHER

- flat, 1/2" ID x 1-3/8" OD, hardened, plated

9шт.

31

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2" ID x 1-1/16" OD, hardened, plated

2шт.

32

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC, plated

7шт.

33

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

34

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

35

S516246

DOOR ASSY.

DOOR - access, top rear

1шт.

36

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

37

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat, 3/8", hardened, plated

8шт.

38

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

4шт.

39

S516837

COVER ASSY

COVER - hydraulic oil reservoir air breather

1шт.

40

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

41

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

42

S95569

WASHER

- flat, 1/2" ID x 1-3/8" OD, hardened, plated

2шт.
