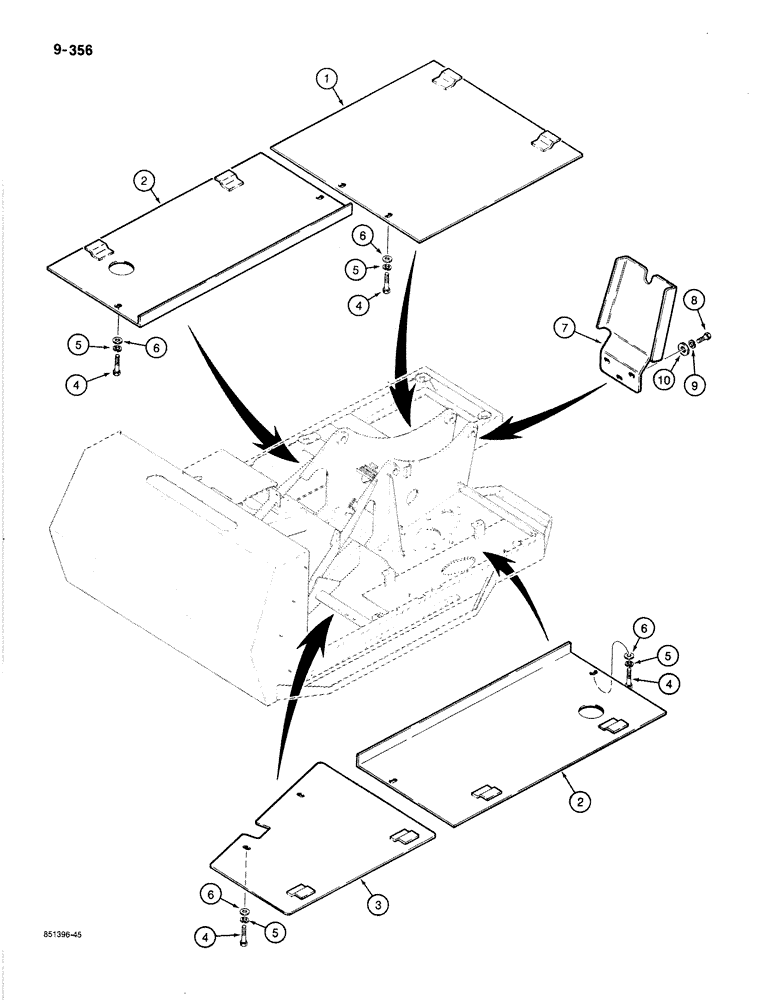

Запчасти Case 1187B (9-356) - TURNTABLE GUARDS (09) - CHASSIS

1

S241189

GUARD

- turntable, under front of cab

1шт.

2

S516396

GUARD

- turntable, under rear of cab, fuel tank, and hydraulic reservoir

2шт.

3

S515922

GUARD

- turntable, under radiator and oil cooler

1шт.

4

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

8шт.

5

192-165

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

6

195-541

WASHER,5/8", SAE

- flat, 5/8", plated

8шт.

7

S516420

GUARD

- hoist cylinder hoses, at front of turntable mast

1шт.

8

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

3шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

10

S95569

WASHER

- special, 1/2"

3шт.
