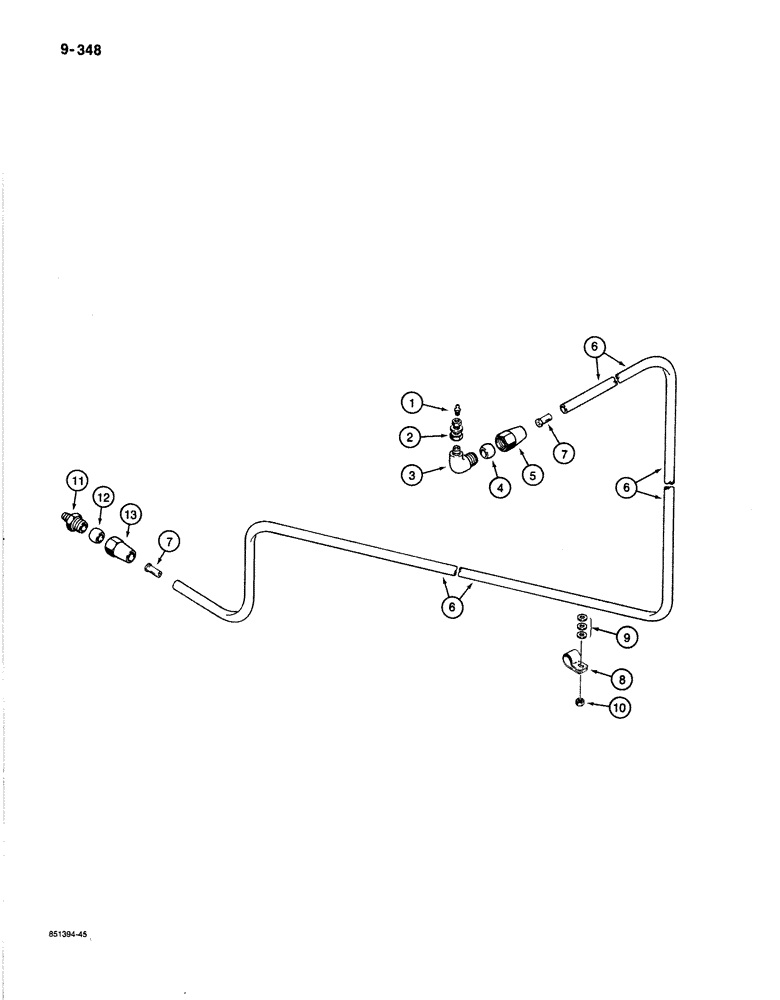

Запчасти Case 1187B (9-348) - TURNTABLE BEARING LUBRICATION LINE (09) - CHASSIS

1

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

2

217-226

COUPLING

ADAPTER - bulkhead, 1/8" NPT x 1-1/2" long

1шт.

222-1847

ELBOW,90 Degree, 17/32"-24 x 1/8" NPT, Comp

ASSEMBLY - 90 degree, compression, Includes: Refs. 3-5

1шт.

3

NSS

NOT SOLD SEPARAT

ELBOW - 90 degree, male

1шт.

4

222-1860

SLEEVE,3/8" Tube, Comp

- compression

1шт.

5

222-1865

NUT,17/32"-24, Sph Sleeve

NUT - compression sleeve

1шт.

6

S119833

TUBE - nylon, 3/8" (9 mm) ID x 52" (1321 mm) long, lubrication line, cut from S118405 bulk tube, see below

1шт.

7

222-2446

INSERT,1/4" Tube

- nylon tube, 3/8" tube OD

2шт.

8

A61275

CLIP

CLAMP - nylon tube to bottom of cab floor plate

1шт.

9

495-21056

WASHER,1/2"

- flat, , zinc plated 1/2"

3шт.

10

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC, plated

1шт.

222-1839

FITTING,17/32"-24 x 1/8" NPT

ADAPTER ASSEMBLY - straight, male, Includes: Refs. 11-13

1шт.

11

NSS

NOT SOLD SEPARAT

ADAPTER - straight, male

1шт.

12

222-1860

SLEEVE,3/8" Tube, Comp

- compression

1шт.

13

222-1865

NUT,17/32"-24, Sph Sleeve

NUT - compression sleeve

1шт.

S118405

HOSE,600.00", SAE J844

Used for ref. 6 600.00", SAE J844

1шт.
