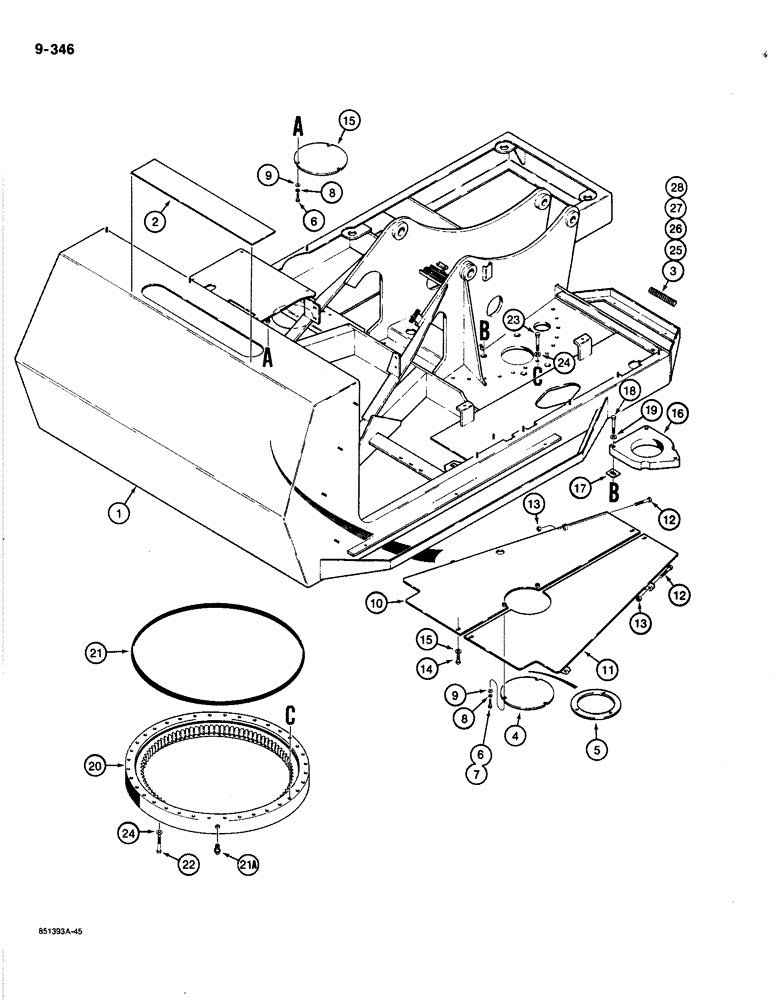

Запчасти Case 1187B (9-346) - TURNTABLE AND BEARING (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
S956928
ASSEMBLY
TURNTABLE - logger
1шт.
2
S242214
PLATE
- cover, weld on
1шт.
3
REF
INSTRUCTION
CONDUIT - turntable frame, hose guard, cut as required to fit from S119717, see below
1шт.
4
S241192
COVER
- engine oil pan drain and hydraulic tank drain
2шт.
5
S242612
SPACER
- engine oil pan drain, used on Detroit Diesel engine only, if used
1шт.
6
113-417
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
5шт.
7
113-412
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
Used with Ref. 5 spacer only, if used Hex, 1/2"-13 x 1 3/4", G5
2шт.
8
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
5шт.
9
196-15
WASHER,17/32" x 1 1/6" x .134"
- flat, 1/2", hardened, plated
5шт.
10
S515835
GUARD ASSY.
GUARD - lower protection, left-hand
1шт.
11
S515837
GUARD ASSY.
GUARD - lower protection, right-hand
1шт.
12
113-601
BOLT,Hex, 5/8" - 11 x 3", Gr 5
4шт.
13
131-64
LOCK NUT,5/8"-11, GC
NUT - hex, self-locking, 5/8" - 11 NC, plated
4шт.
14
113-606
BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd
4шт.
15
195-541
WASHER,5/8", SAE
- flat, 5/8", plated
4шт.
16
S516540
PLATE
SUPPORT - swing gearbox mounting, welded to turntable, used on models prior to P.I.N. to JAK0032701
1шт.
16
S517316
SHEET
SUPPORT - swing gearbox mounting, welded to turntable, used on models with P.I.N. and after, Start Serial: JAK0032701
1шт.
17
S84889
SHIM,.003" Thk
(.0762 mm), Swing gearbox mounting to turntable .003" Thk
1шт.
17
S77916
SHIM,.005" Thk
(.1270 mm), Swing gearbox mounting to turntable .005" Thk
1шт.
17
S84890
SHIM,.007" Thk
(.1778 mm), Swing gearbox mounting to turntable .007" Thk
1шт.
17
S77917
SHIM,.010" Thk
(.2540 mm), Swing gearbox mounting to turntable .010" Thk
1шт.
17
S77918
SHIM,.015" Thk
(.3810 mm), Swing gearbox mounting to turntable .015" Thk
1шт.
17
S77919
SHIM,.030" Thk
(.7620 mm), Swing gearbox mounting to turntable .030" Thk
1шт.
17
S77920
SHIM,.060" Thk
(1.524 mm), Swing gearbox mounting to turntable .060" Thk
1шт.
S119717
CONDUIT
- edge, bulk roll, 1" (25 mm) ID x 16 ft (4.88 mm) long, used for ref. 3
1шт.
18
826-20055
BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9, Full Thd
- hex head, 20 mm - 2.5 x 55 mm, class 10.9, gearbox to support, used on models prior to P.I.N. to JAK0032701
3шт.
18
26-1648
BOLT,Hex, 1" - 8 x 3", Gr 8
- hex head, 1" - 8 NC x 3", grade 8, used on models with P.I.N. and after, Start Serial: JAK0032701
3шт.
BOLT MAY ALSO BE 828-20070 (20 x 70 mm 10.8) FOR THE METRIC VERSION WITH THE THICKER MTG. FLANGE.
1шт.
19
S118818
WASHER
- special, hardened, used on models prior to P.I.N. to JAK0032701
3шт.
19
S120727
WASHER
- special, hardened, used on models with P.I.N. and after, Start Serial: JAK0032701
3шт.
S508670
BEARING ASSY
BEARING ASSEMBLY - turntable, Includes: Refs. 20-21A
1шт.
20
NSS
NOT SOLD SEPARAT
BEARING - without seals
1шт.
21
S105067
SEAL
- bearing, 156" (3962 mm) long, cut to required length
2шт.
21a
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight, short, 1/8" NPT
3шт.
22
26-1232
BOLT,Hex, 3/4" - 10 x 2", Gr 8
used on models prior to P.I.N. Hex, 3/4"-10 x 2", G8, Serial Range: -6275565
36шт.
22
26-1240
BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8
- hex head, 3/4" - 10 NC x 2-1/2", grade 8, used on models with P.I.N. and after, Start Serial: 6275565
36шт.
23
26-1236
BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8
- hex, 3/4" - 10 NC x 2-1/4", G8
34шт.
24
S94643
WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk
- flat, 3/4", hardened
70шт.
25
S120274
CONDUIT
- edge guard, 20" (508 mm) long, cut from S118481 bulk, see below
2шт.
26
S120275
CONDUIT
- edge guard, 40" (1016 mm) long, cut from S118481 bulk, see below
1шт.
27
S120273
CONDUIT - edge guard, 15" (381 mm) long, cut from S118481 bulk, see below
1шт.
28
S119725
CONDUIT
- edge guard, 8" (203 mm) long, cut from S118481 bulk, see below
2шт.
S118481
PACKAGE
CONDUIT - edge, bulk roll, 60" (1524 mm) long, used for refs. 25-28
1шт.
S119717
CONDUIT
- edge, bulk roll, 1" (25 mm) ID x 16 ft (4.88 mm) long, used for ref. 3
1шт.
