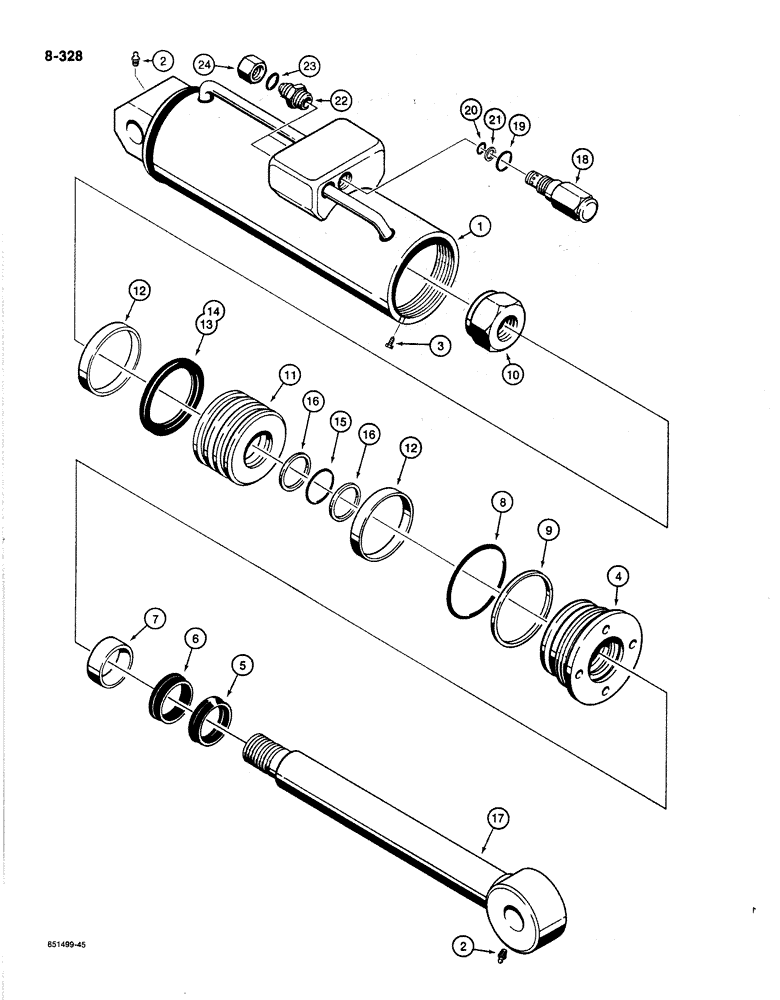

Запчасти Case 1187B (8-328) - COLLECTOR ARM CYLINDER (08) - HYDRAULICS

S615490

CYLINDER

ASSEMBLY - 3-1/2" (89 mm) ID x 9-11/16" (246 mm) stroke, collector arm, no longer available, order S618845 cylinder assembly for service

1шт.

S618845

CYLINDER ASSY.

CYLINDER ASSEMBLY - 3-1/2" (89 mm) ID x 9-11/16" (246 mm) stroke, collector arm, Includes: Refs. 1-24

1шт.

1

S615491

CYLINDER,3.504" ID x 15.75, 3" L

TUBE - cylinder

1шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

3

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex slotted head, No. 8 - 32 NC x 3/8", plated

1шт.

4

S514645

GLAND

- cylinder, no longer available, order S516833 gland and one each of S120107 seal and D95143 wiper

1шт.

4

S516833

GLAND

- cylinder

1шт.

5

A13892

RING

WIPER - piston rod, used with S615490 cylinder assembly

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, used with S618845 cylinder assembly

1шт.

6

D36970

CUP

SEAL - U-cup, piston rod, used with S615490 cylinder assembly

1шт.

6

S120107

SEAL

- U-cup, piston rod, used with S618845 cylinder assembly

1шт.

7

S239098

RING

BUSHING - gland

1шт.

8

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

- gland

1шт.

9

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING - backup, gland O-ring

1шт.

10

131-22

LOCK NUT,1 1/4"-12, GB

NUT, LOCK, 1 1/4"-12, GB

1шт.

11

S514644

PISTON

- cylinder

1шт.

12

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

Piston

2шт.

S239097

SEAL

SEAL ASSEMBLY - piston, Includes: Refs. 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

14

NSS

NOT SOLD SEPARAT

EXPANDER - piston seal

1шт.

15

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- piston rod

1шт.

16

L30563

RING

- backup, piston rod O-ring

2шт.

17

S514641

ROD ASSY.

ROD - piston, 1-3/4" (44 mm) diameter

1шт.

18

S239119

VALVE

ASSEMBLY - relief, cylinder, Includes: Refs. 19-21

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Large

1шт.

20

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- small

1шт.

21

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

- backup, small O-ring

1шт.

22

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , straight, Incl. Ref. 23 7/8"-14, 37º x 3/4"-16, O-Ring

2шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Adapter

1шт.

24

218-756

CAP,37 Degree, 7/8"-14

Tube 37º, 7/8"-14

2шт.
