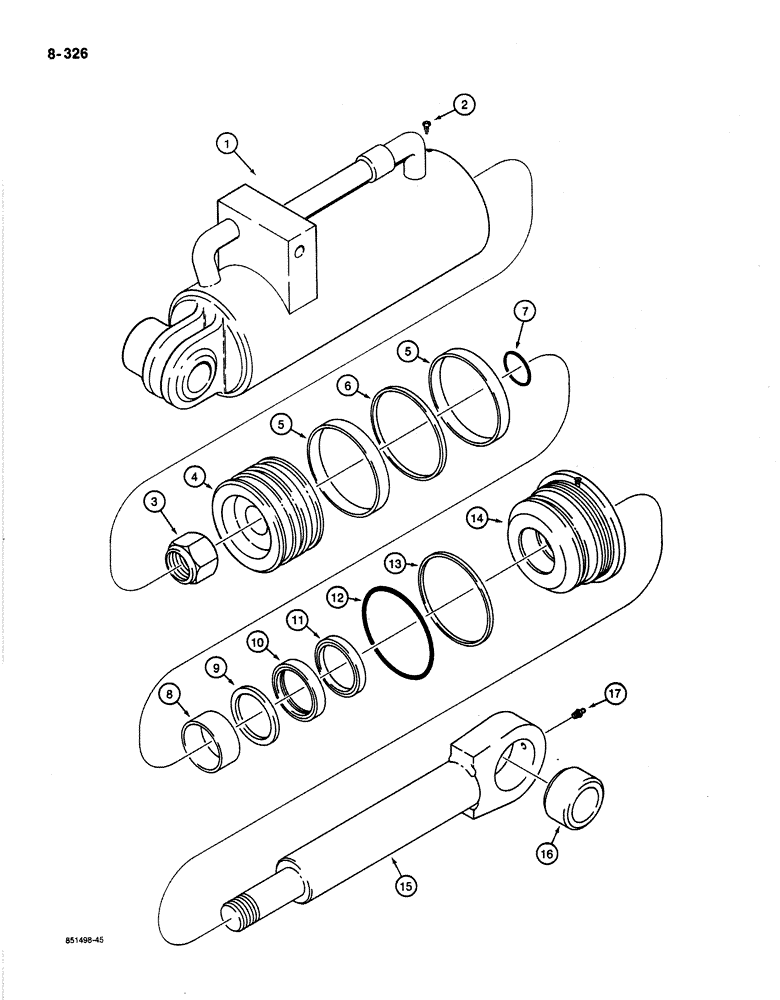

Запчасти Case 1187B (8-326) - GRAB ARM AND CUTTER ARM CYLINDER, USED WITH FELLER BUNCHER AND ROTARY CUTTER (08) - HYDRAULICS

S618357

CYLINDER ASSY.

CYLINDER ASSEMBLY - 4-25/32" (121 mm) ID x 10" (254 mm) stroke, grab arm and cutter arm, Includes: Refs. 1-17

2-3шт.

1

S516569

CYLINDER

TUBE - cylinder

1шт.

2

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex slotted head, No. 8 - 32 NC x 3/8", plated

1шт.

3

131-24

NUT,7/8"-14, GB

NUT - hex, self-locking, 1-1/2" - 12NF

1шт.

4

S516567

PISTON

- cylinder

1шт.

5

S120389

BEARING LINER

RING - wear, piston

2шт.

6

S120391

SEAL

- piston

1шт.

7

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

- piston rod seal

1шт.

8

S120388

BUSHING

- gland

1шт.

9

G104902

RING

SEAL - piston rod, narrow

1шт.

10

S120390

SEAL

- piston rod, wide

1шт.

11

S22940

WIPER SEAL

WIPER - piston rod, outer

1шт.

12

S120401

O-RING,0.21" Thk x 4.35" ID, -348, Cl 5, 75 Duro

- gland

1шт.

13

S120402

SPECIAL WASHER

RING - backup, gland O-ring

1шт.

14

S516566

GLAND

- cylinder

1шт.

15

S205819

PISTON ROD

ROD ASSEMBLY - piston, 2-1/2" (63 mm) diameter, Includes: Ref. 16

1шт.

16

S23796

BUSHING

- piston rod

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.
