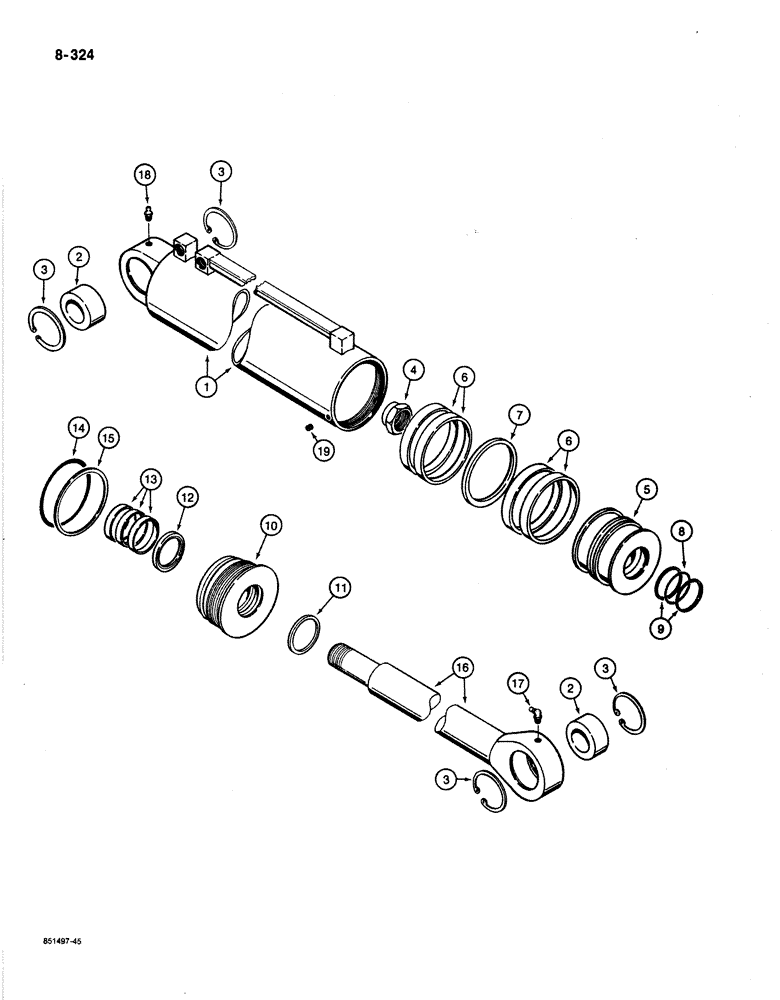

Запчасти Case 1187B (8-324) - SHEAR ARM CYLINDER (08) - HYDRAULICS

S615305

CYLINDER ASSY.

CYLINDER ASSEMBLY - 6-1/2" (165 mm) ID x 24-1/2" (622 mm) stroke, shear arm, Includes: Refs. 1-19

1шт.

1

S615306

TUBE ASSY.,6.53" ID x 36.25, 4.73" L

TUBE - cylinder

1шт.

2

R26680

SPHERICAL BEARING,63.5mm ID x 100.01mm OD x 55.6mm W

- self-aligning, at rod eye and closed end of cylinder

2шт.

3

A55435

SNAP RING,3.938", Int, #393

Ring, Snap, , bushing 3.938", Int, #393

4шт.

4

S83249

NUT

- hex, self-locking, special

1шт.

5

S514538

PISTON

- cylinder

1шт.

6

S97856

RING

- wear, piston

4шт.

7

S228607

SEAL,145.16mm ID x 166.85mm OD x 9.32mm Thk

SEAL - piston

1шт.

8

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- piston to rod

1шт.

9

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup, piston O-ring

2шт.

10

S514539

GLAND

- cylinder

1шт.

11

S97854

WIPER SEAL,88.9mm ID x 104.98mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

12

S118038

SEAL

- piston rod

1шт.

13

S104133

OIL SEAL

BUSHING - gland

3шт.

14

S6030

O-RING,5.975" ID x 6.525" OD x 0.275"

- gland

1шт.

15

S99881

WASHER

RING - backup, gland O-ring

1шт.

16

S514508

ROD ASSY.

ROD - piston, 3-1/2" (89 mm) diameter

1шт.

17

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Rod end 90º, 1/8" NPT x .84" lg

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT, closed end

1шт.

19

178-442

SET SCREW,Hdls Hex Skt, 5/16" - 18 x 1/2", Flat Pt

SCREW - set, hex socket headless, 5/16" - 18 NC x 1/2", flat point

1шт.
