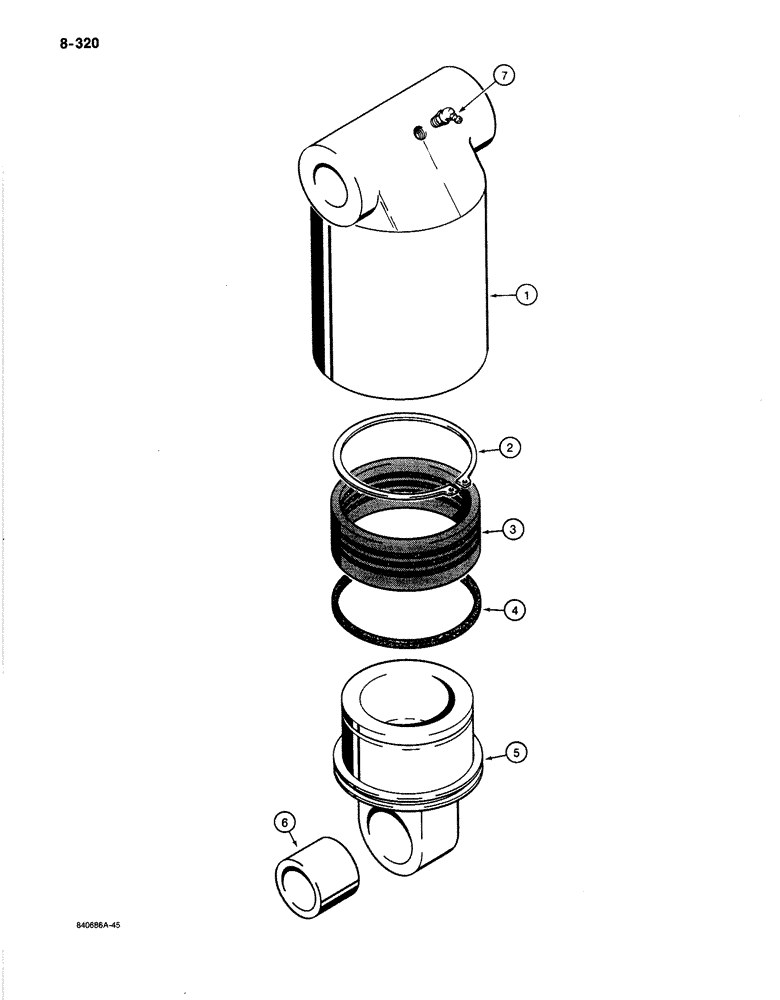

Запчасти Case 1187B (8-320) - LEVELER CYLINDER (08) - HYDRAULICS

S611706

CYLINDER

ASSEMBLY - 6-1/4" (159 mm) ID x 5-7/8" (149 mm) stroke, leveler, no longer available, order S619065 cylinder assembly on Figure 8-322, Includes: Refs. 1-6

2шт.

1

S233708

TUBE,13.55" L

- cylinder

1шт.

2

H756064

SNAP RING,#500, 4.692", Ext

RING - retaining, piston packing

1шт.

3

S209061

SEAL ASSY.

PACKING ASSEMBLY - piston

1шт.

4

S118540

SEAL

WIPER - piston

1шт.

5

S211136

PISTON ASSY.

PISTON AND ROD ASSEMBLY - cylinder, Includes: Refs. 6

1шт.

6

S202130

THREADED BUSHING

BUSHING - piston rod

1шт.

7

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, special short, 1/8" NPT

1шт.

S120637 Cylinder Spacer

1шт.
