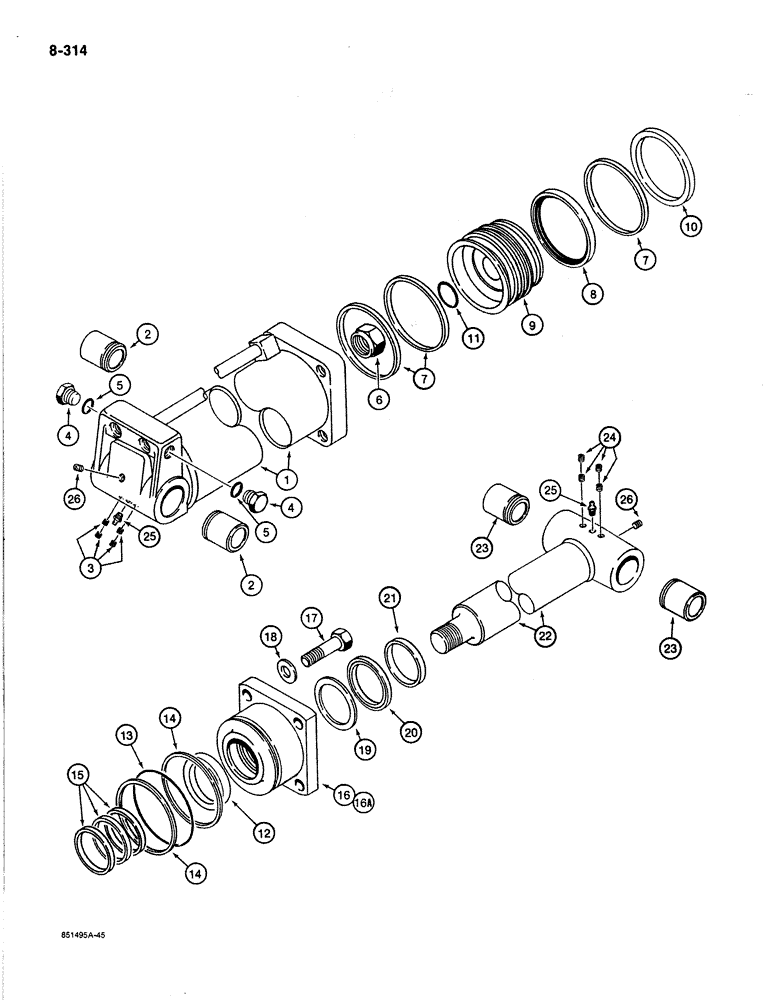

Запчасти Case 1187B (8-314) - BOOM CYLINDER (08) - HYDRAULICS

S956915

CYLINDER ASSY.

CYLINDER ASSEMBLY - 6-1/2" (165 mm) ID x 45-1/2" (1156 mm) stroke, boom, Includes: Refs. 1-24

1шт.

1

S617368

CYLINDER

TUBE - cylinder, Includes: Refs. 2 and 3

1шт.

2

S225645

BUSHING

- tube mounting

2шт.

3

83-56

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set, hex socket, cup point, 5/16" - 18 NC x 3/8"

4шт.

4

273916

PLUG,Hex, 1-5/16" - 12 ORB

Includes Ref. 5 Hex Hd, 1 5/16"-12 ORB

4шт.

5

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug

1шт.

6

S83249

NUT

- hex, self locking, special

1шт.

7

S97856

RING

- wear, piston

3шт.

Part of Seal Kit, P/N S120324

1шт.

8

S228607

SEAL,145.16mm ID x 166.85mm OD x 9.32mm Thk

SEAL ASSEMBLY - piston, includes three seals

1шт.

Part of Seal Kit, P/N S120324

1шт.

9

S516913

PISTON

- cylinder

1шт.

10

S120521

OIL SEAL

RING - piston

1шт.

11

A7552

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

- piston

1шт.

Part of Seal Kit, P/N S120324

1шт.

12

S97798

SPACER

- gland, stroke limiter

1шт.

13

S6030

O-RING,5.975" ID x 6.525" OD x 0.275"

- gland

1шт.

Part of Seal Kit, P/N S120324

1шт.

14

S99881

WASHER

RING - backup, gland O-ring

2шт.

Part of Seal Kit, P/N S120324

1шт.

15

S104133

OIL SEAL

RING - wear, gland

3шт.

Part of Seal Kit, P/N S120324

1шт.

16

S618039

GLAND

- cylinder, no longer available, order S619031, Ref. 16A, and one S99881 backup ring, Ref. 14 for service

1шт.

16a

S619031

GLAND

- cylinder

1шт.

17

28-1444

BOLT,Hex, 7/8" - 14 x 2-3/4", Gr 8

- hex head, 7/8" - 14 NF x 2-3/4", grade 8

4шт.

18

196-35

WASHER,15/16" x 1 3/4" x .134", HDN

- flat, 7/8", hardened

4шт.

19

G109030

SEAL,88.32mm ID x 104.44mm OD x 4.9mm Thk

- piston rod, narrow

1шт.

Part of Seal Kit, P/N S120324

1шт.

20

S118038

SEAL

- piston rod, wide

1шт.

Part of Seal Kit, P/N S120324

1шт.

21

S97854

WIPER SEAL,88.9mm ID x 104.98mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of Seal Kit, P/N S120324

1шт.

22

S508274

ROD

ASSEMBLY - piston, 3-1/2" (89 mm) diameter, Includes: Refs. 23, 24

1шт.

23

S225645

BUSHING

- piston rod

2шт.

24

83-56

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set, hex socket, cup point, 5/16" - 18 NC x 3/8"

4шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

26

221-1849

PLUG

- hex socket head, 1/8" NPT

2шт.

S120324

KIT

- seal, includes Refs. 7, 8, 11, 13, 14, 15, 19, 20 and 21

1шт.
