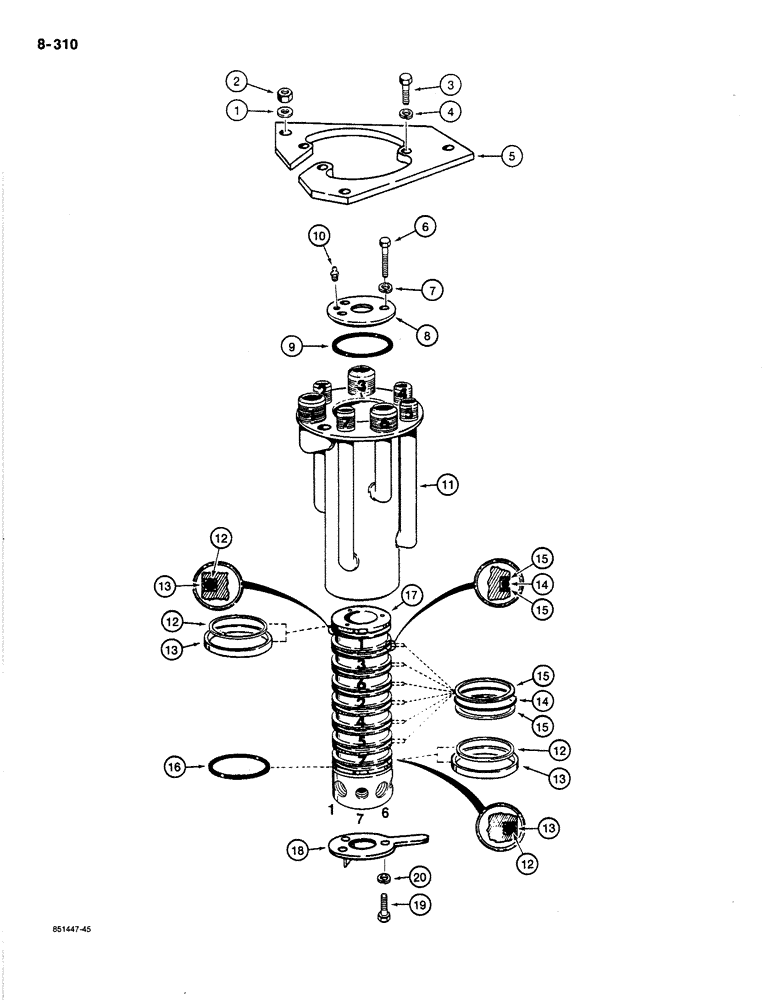

Запчасти Case 1187B (8-310) - SEVEN PORT SWIVEL AND RELATED PARTS (08) - HYDRAULICS

1

195-104

WASHER,3/8"

- flat, 7/16"

3шт.

2

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

3шт.

3

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

5

S204101

PLATE

- mounting, seven port swivel

1шт.

S618820

LINK

SWIVEL ASSEMBLY - hydraulic, seven port, Includes: Refs. 6-17

1шт.

6

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

8

S242702

CAP

- bearing

1шт.

9

S119791

SHIM

BEARING - cap (3.9" I.D. x 5" O.D. x .15 Thk.)

1шт.

Part of Seal Kit, P/N S119402

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

11

S618679

HOUSING

- swivel

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - swivel shaft, square section, now part of Ref. 13

2шт.

Part of Seal Kit, P/N S119402

1шт.

13

S118683

SEAL

- two piece, includes Ref. 12

2шт.

Part of Seal Kit, P/N S119402

1шт.

14

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- swivel shaft

6шт.

Part of Seal Kit, P/N S119402

1шт.

15

S76928

WASHER

RING - backup, shaft O-ring

12шт.

Part of Seal Kit, P/N S119402

1шт.

16

S76240

O-RING

- swivel shaft, bottom

1шт.

Part of Seal Kit, P/N S119402

1шт.

17

S618821

SHAFT

- swivel

1шт.

18

S237399

LARGE PLATE

PLATE - mounting, inner swivel, used on models prior to P.I.N., Serial Range: -6275525

1шт.

18

S242467

PLATE

- mounting, inner swivel, used on models with P.I.N. and after, Start Serial: 6275525

1шт.

19

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

S119402

SEAL KIT

- seal, for S618820 swivel, includes Refs. 9, and 12 - 16

1шт.
