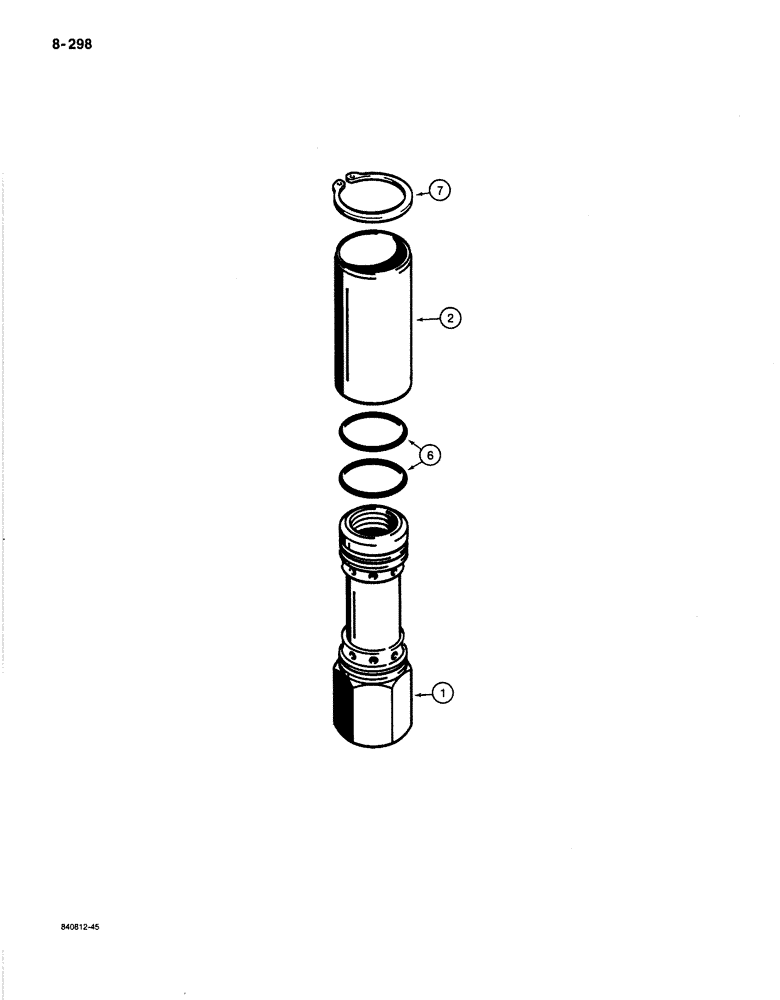

Запчасти Case 1187B (8-298) - FLOW CONTROL VALVE, USED WITH ROTARY CUTTER (08) - HYDRAULICS

S229047

VALVE

ASSEMBLY - flow control, Includes: Refs. 1-7

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve, flow control

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE - valve

1шт.

3

NSS

NOT SOLD SEPARAT

PISTON - valve, not shown

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING - valve, not shown

1шт.

5

NS

NOT SERVICED

RING - retaining, internal, not shown

1шт.

6

H755975

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

-, Serial Range: sleeve-body

2шт.

7

D46211

SNAP RING,#78, Ext

Ring, Snap, #78, Ext

1шт.
