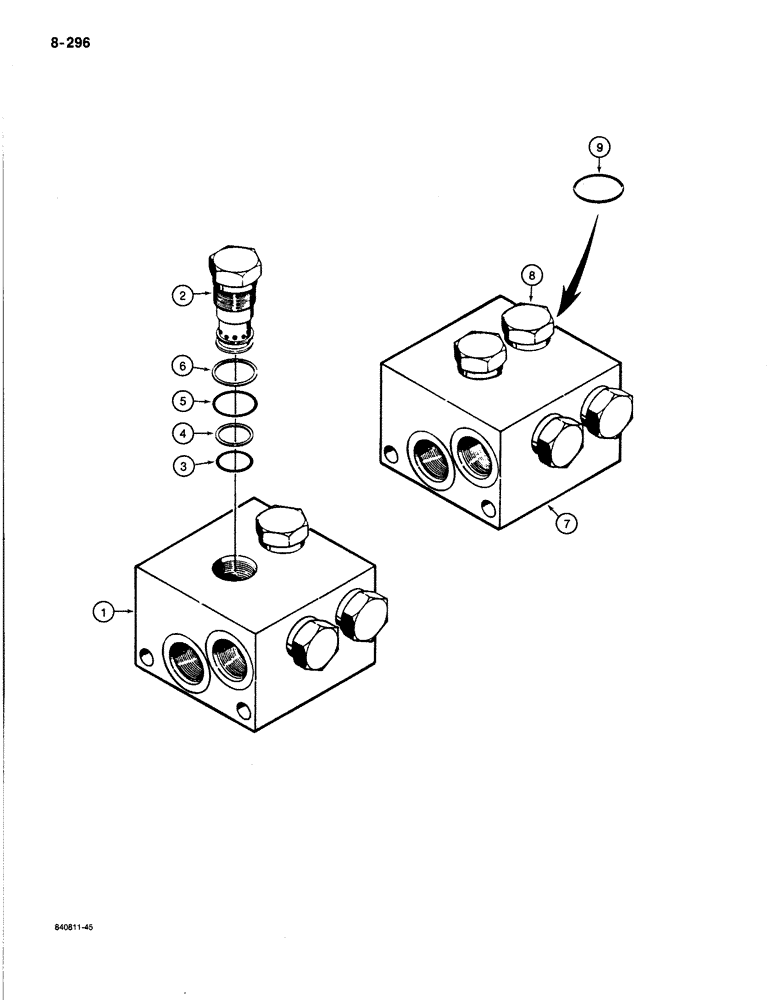

Запчасти Case 1187B (8-296) - MULTIPLE CHECK VALVE, USED WITH COLLECTOR (08) - HYDRAULICS

S607153

VALVE

ASSEMBLY - multiple check, Sun Hydraulic manufactured, Includes: Refs. 1-6

1шт.

Check the valve body for identification as to Sun Hydraulic or Fluid Controls manufactured.

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - check valve

1шт.

S107625

CARTRIDGE

ASSEMBLY - check valve, Includes: Refs. 2-6

4шт.

2

NSS

NOT SOLD SEPARAT

CARTRIDGE - valve

1шт.

3

A153571

O-RING,0.799" ID x 1.005" OD x 0.103"

- cartridge, small

1шт.

Part of seal kit, P/N S109023

1шт.

4

A16860

RING

- backup, small O-ring

1шт.

Part of seal kit, P/N S109023

1шт.

5

N9096

O-RING,0.674" ID x 7" OD x 0.103" Width

- cartridge, large

1шт.

Part of seal kit, P/N S109023

1шт.

6

A42252

SEALING RING

RING - backup, large O-ring

1шт.

Part of seal kit, P/N S109023

1шт.

S607153

VALVE

ASSEMBLY - multiple check, Fluid Controls manufactured, Includes: Refs. 7-9

1шт.

Check the valve body for identification as to Sun Hydraulic or Fluid Controls manufactured.

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - check valve

1шт.

8

NSS

NOT SOLD SEPARAT

PLUG - check valve body

4шт.

9

A47226

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

- plug (1" x1 1/4" x 1/8")

4шт.

S109023

SEAL KIT

KIT - seal, cartridge, includes Refs. 3, 4, 5, and 6

1шт.
