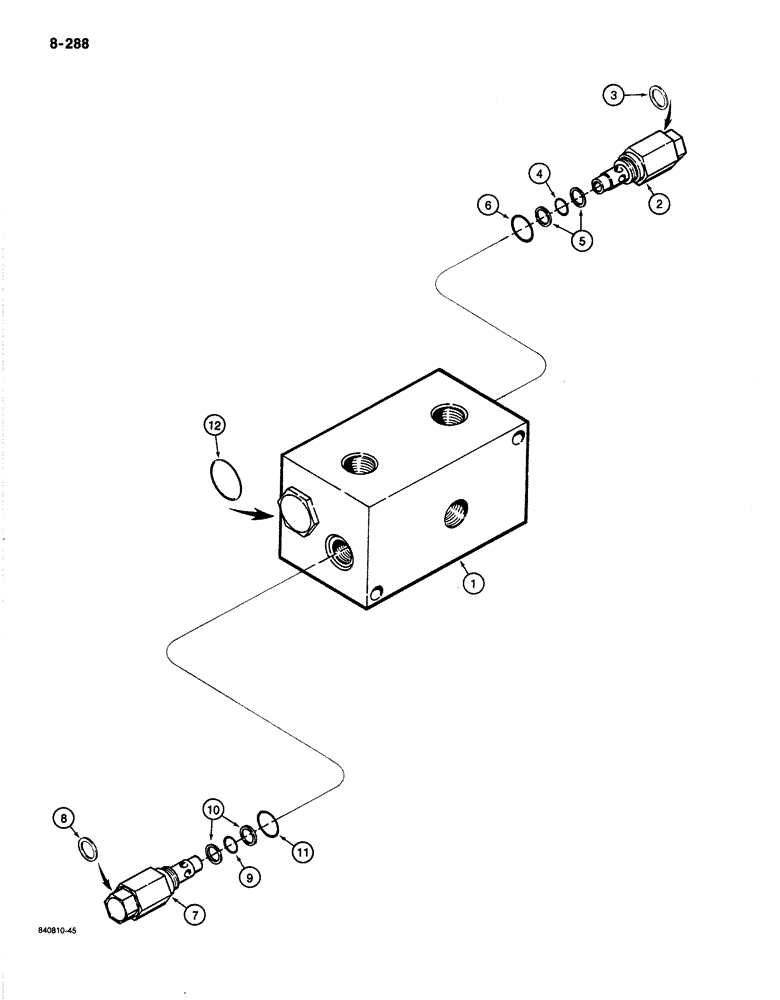

Запчасти Case 1187B (8-288) - DUAL RELIEF VALVE, USED WITH ROTARY CUTTER (08) - HYDRAULICS

S510454

VALVE ASSEMBLY - dual relief, Includes: Refs. 1-12

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

S110253

CARTRIDGE

VALVE ASSEMBLY - relief, cartridge type, set at 2500 psi, Includes: Refs. 2-6

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

3

S118310

GASKET

- cartridge cap

1шт.

4

L33213

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

- cartridge, small

1шт.

5

S116423

RING, SNAP

RING - backup, O-ring

2шт.

6

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- cartridge, large

1шт.

S117914

CARTRIDGE

VALVE ASSEMBLY - relief, cartridge type, set at 1700 psi, Includes: Refs. 7-11

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

8

S118310

GASKET

- cartridge cap

1шт.

9

L33213

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

- cartridge, small

1шт.

10

S116423

RING, SNAP

RING - backup, O-ring

2шт.

11

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- cartridge, large

1шт.

12

A32190

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

- plug, replace if required for leakage

1шт.

The plug, poppet and spring which are removed to replace the O-ring are NSS refs.

1шт.
