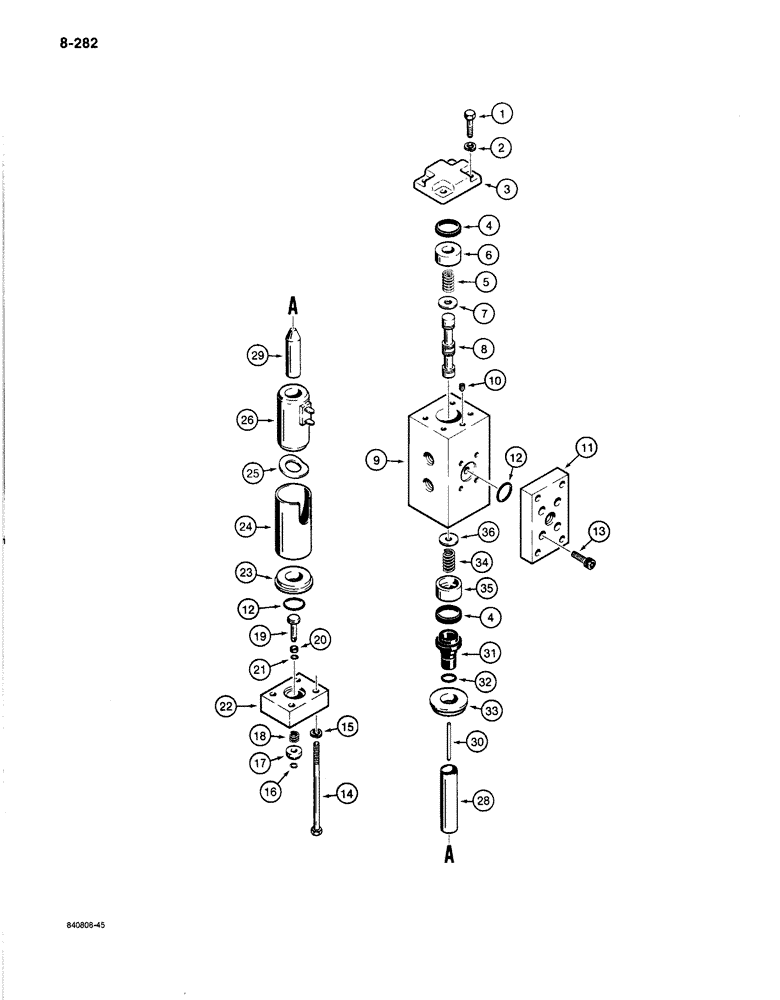

Запчасти Case 1187B (8-282) - SOLENOID VALVE, USED WITH ROTARY CUTTER (08) - HYDRAULICS

S516009

VALVE

ASSEMBLY - solenoid, rotary cutter, 24 volt, Includes: Refs. 1-36

1шт.

1

113-9

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

- hex head, 1/4" - 20 NC x 7/8"

4шт.

2

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

3

S62751

COVER - spool end

1шт.

4

S6574

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

- cover and plunger seat

2шт.

5

S64953

SPRING

- spool return

1шт.

6

S111601

STOP

- valve spool

1шт.

7

S111600

WASHER

- spring retainer

1шт.

8

S64950

SPOOL

- solenoid valve

1шт.

9

S111602

BLOCK

- solenoid valve

1шт.

10

S64771

PLUG

- pipe, special

1шт.

11

S111604

ADAPTER

- valve block

1шт.

12

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- at adapter and manual release

2шт.

13

165-142

HEX SOC SCREW,1/4" - 20 x 5/8"

BOLT - hex socket head, 1/4" - 20 NC x 5/8", plated

4шт.

14

26-466

BOLT,Hex, 1/4" - 20 x 4-1/8", Gr 8

- hex head, 1/4" - 20 NC x 4-1/8", grade 8

4шт.

15

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

S64762

ASSEMBLY

RELEASE ASSEMBLY - manual, Includes: Refs. 16-22

1шт.

16

A22356

CIRCLIP,#X21, .185" Dia, E-Type

Ring, Retaining, , release button #X21, .185" Dia, E-Type

1шт.

17

S62772

BUTTON

- release

1шт.

18

S62771

SPRING

- release

1шт.

19

S62774

PIN

- plunger

1шт.

20

S90647

BUSHING

- plunger pin

1шт.

21

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

- plunger pin

1шт.

22

S90646

PLATE

- manual release

1шт.

23

S62761

WASHER

RETAINER - coil cover

1шт.

24

S62765

SHELL

COVER - solenoid cover

1шт.

25

S109106

WASHER

- spring, special

1шт.

26

S116425

COIL

- solenoid valve, 24 volt

1шт.

27

S111603

TERMINAL CONNECTOR

TERMINAL - coil, not shown

2шт.

S64951

TUBE ASSY.

TUBE ASSEMBLY - plunger, Includes: Refs. 28-36

1шт.

28

N60040

TUBE

- plunger cover

1шт.

29

S62766

PLUNGER

- valve spool

1шт.

30

138-35

LOCK PIN,3/32" x 3/8", Slotted

PIN - roll, plunger, 5/32" x 2"

1шт.

31

S62763

STOP

SEAT - plunger

1шт.

32

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- plunger seat

1шт.

33

S62761

WASHER

RETAINER - coil cover

1шт.

34

N60039

SPRING

- spool return

1шт.

35

S111601

STOP

- valve spool

1шт.

36

S111600

WASHER

- spring retainer

1шт.
