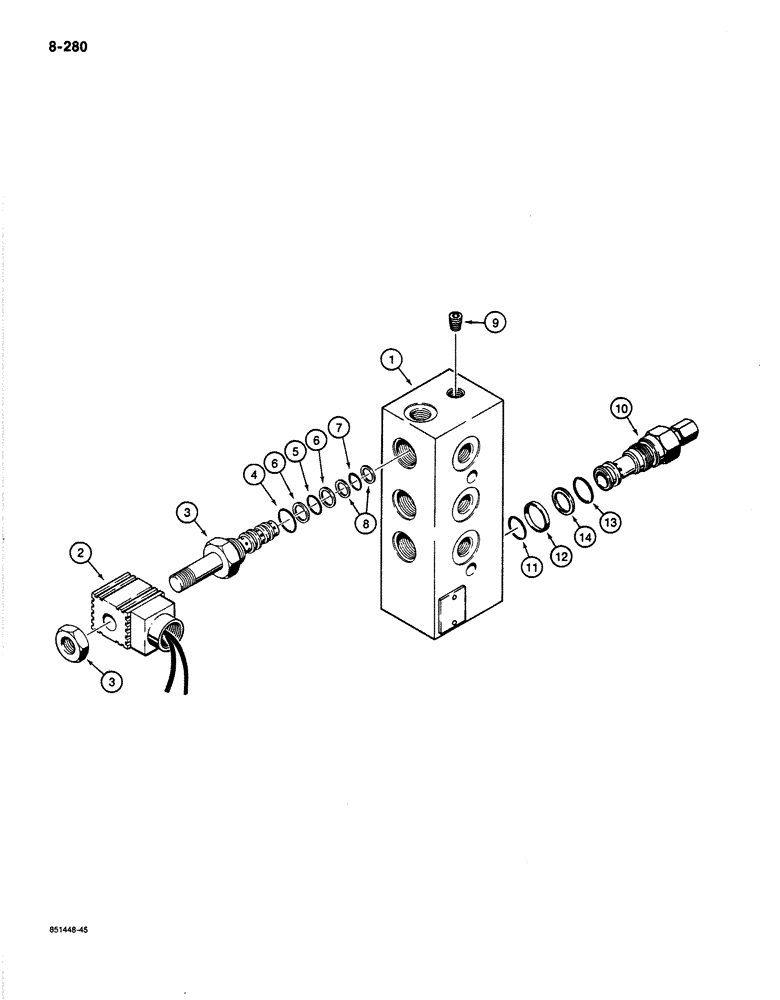

Запчасти Case 1187B (8-280) - SOLENOID CONTROL VALVE (08) - HYDRAULICS

S516951

VALVE

ASSEMBLY - control, solenoid, Includes: Refs. 1-14

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

2

N9053

COIL

- solenoid

3шт.

N8549

SOLENOID

ASSEMBLY - control valve, Includes: Refs. 3-8

3шт.

3

NSS

NOT SOLD SEPARAT

BODY - solenoid

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

5

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- center

1шт.

6

N8553

O-RING

- backup, center O-ring

2шт.

7

A8613

O-RING,0.426" ID x 0.566" OD

- inner

1шт.

8

N8554

O-RING

RING - backup, inner O-ring

2шт.

9

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, hex socket head, 1/8" NPT

1шт.

N9894

VALVE, PRESSURE RELI

VALVE ASSEMBLY - relief, control valve, Includes: Refs. 10-14

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

11

A65918

O-RING,0.551" ID x 0.691" OD

- relief valve, 9/16" ID

1шт.

12

N9961

BACK-UP RING,0.551" ID x 0.691" OD x 0.07"

- outer, used with 9/16" ID O-ring

1шт.

13

D77584

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

- relief valve, 11/16" ID

1шт.

14

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

- backup, used with 11/16" ID O-ring

1шт.
