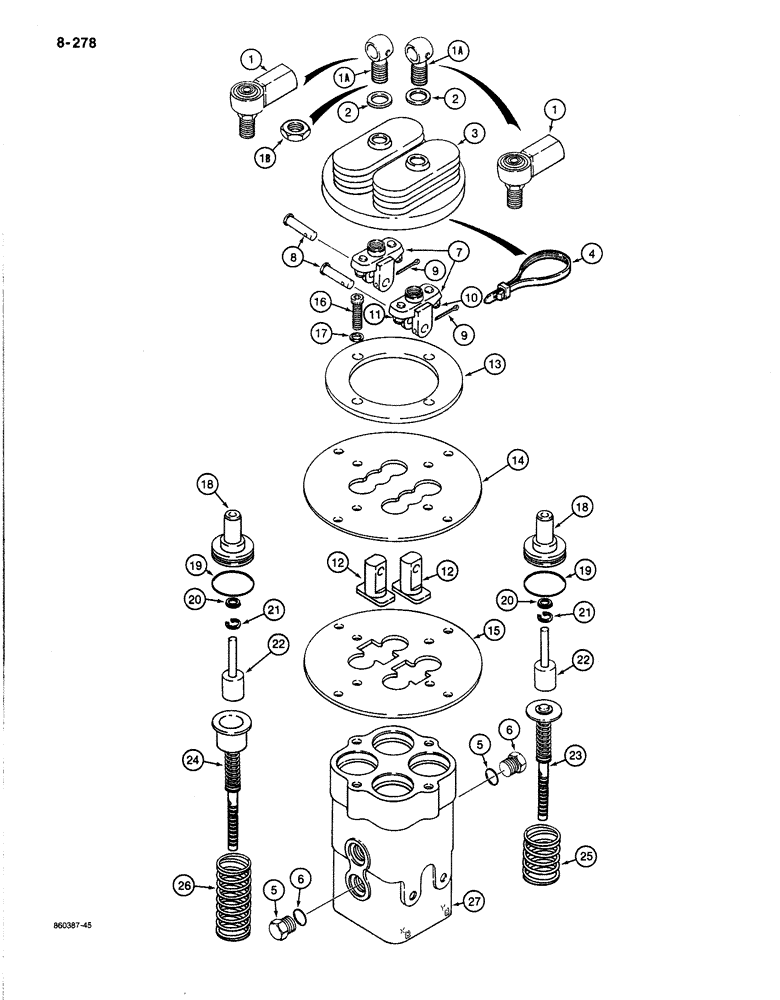

Запчасти Case 1187B (8-278) - HAND AND FOOT CONTROL VALVES (08) - HYDRAULICS

S517078

VALVE

ASSEMBLY - control, foot, no longer available, order individual components of S517359 for service

2шт.

S517359

VALVE

ASSEMBLY - control, foot

2шт.

S517076

VALVE

ASSEMBLY - control, hand, left hand, no longer available, order individual components of S517357 for service

1шт.

S517357

VALVE

ASSEMBLY - hand, left hand

1шт.

S517077

VALVE

ASSEMBLY - hand, right hand, no longer available, order individual components of S517358 for service

1шт.

S517358

VALVE

ASSEMBLY - hand, right hand, Includes: Refs. 1-27

1шт.

1

N13670

END

- control rod, used on models with S517076, S517077, S517357 and S517358 control valves only

2шт.

1a

N13671

CLEVIS

END - control rod, used on models with S517078 and S517359 control valve only

2шт.

1b

129-165

JAM NUT,Jam, 1/2"-20, G5

Used on models with S517078 and S517359 control valve only Jam, 1/2"-20, G5

2шт.

2

N13669

WASHER

- shim

1шт.

3

N13668

BOOT

- control mechanism

1шт.

4

N13667

STRAP

BAND - boot retaining

1шт.

5

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 6 Hex Hd, 9/16"-18 ORB

2шт.

N13672

PIVOT

ROCKER ASSEMBLY - control valve, Includes: Refs. 7-15

1шт.

7

N13680

PIVOT

- control valve

2шт.

8

N13678

PIN

- rocker

2шт.

9

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

4шт.

10

N13679

BOLT

WASHER - special

4шт.

11

86637933

JAM NUT,5/16" - 24, Gr 5

4шт.

12

N13681

POST

- rocker pivot

2шт.

13

NSS

NOT SOLD SEPARAT

PLATE - boot

1шт.

14

NSS

NOT SOLD SEPARAT

PLATE - top

1шт.

15

NSS

NOT SOLD SEPARAT

PLATE - bottom

1шт.

16

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

17

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

18

N14760

GUIDE

- plunger

2шт.

19

D37156

O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro

- guide

2шт.

20

N14759

SEAL,11.68mm ID x 13.46mm OD x 3.38mm Thk

- wiper

2шт.

21

A59973

SNAP RING,0.50", Int, #50

Ring, Snap, , plunger 0.50", Int, #50

2шт.

22

N13694

LARGE PIN

PLUNGER - spool

2шт.

23

N14761

SPOOL

ASSEMBLY - in port XA of S517076 and S517357 control valve, port YB of S517077 and S517358 control valve, or all ports of S517078 and S517359 control valve, components not service separately

1-4шт.

Port numbers are stamped on end of valve body.

1шт.

24

N14762

SPOOL

ASSEMBLY - in three ports of S517076, S517077, S517357 or S517358 control valves only, see N14761 above for exception port for each valve, components not service separately

3шт.

Port numbers are stamped on end of valve body.

1шт.

25

N13674

SPRING

- outer, used with Ref. 23 only

1-4шт.

26

N13677

SPRING

- outer, used with Ref. 24 only, if used

3шт.

27

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Plug

1шт.
