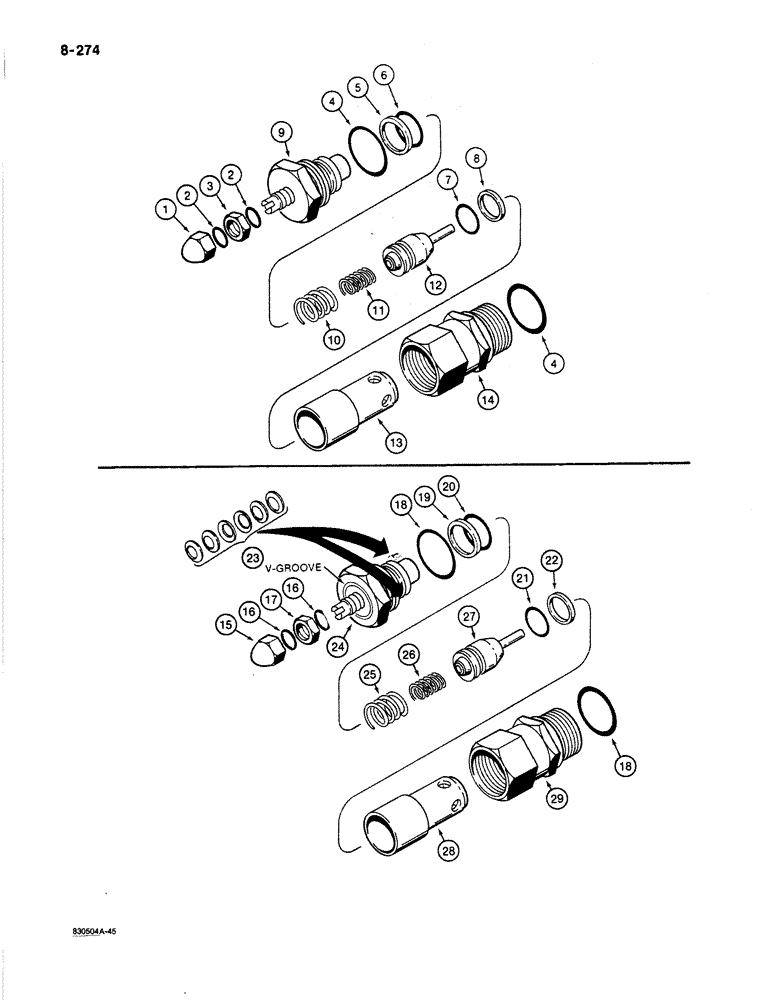

Запчасти Case 1187B (8-274) - CIRCUIT RELIEF VALVES (08) - HYDRAULICS

S616867

VALVE

RELIEF VALVE - circuit, cartridge assembly, complete, set at 3000 psi

1шт.

S616868

VALVE

RELIEF VALVE - circuit, cartridge assembly, complete, set at 2500 psi, Includes: Refs. 1-14

1шт.

1

S116073

CAP

NUT - dome, adjusting screw

1шт.

2

N8538

O-RING,0.426" ID x 0.566" OD x 0.07"

- outer

2шт.

Part of Seal Kit P/N N9092

1шт.

3

S116072

JAM NUT

- jam, adjusting screw

1шт.

4

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug to cartridge and cartridge to valve body

2шт.

Part of Seal Kit P/N N9092

1шт.

5

S83071

BACK-UP RING

RING - backup, inner plug O-ring

1шт.

Part of Seal Kit P/N N9092

1шт.

6

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

- inner plug

1шт.

Part of Seal Kit P/N N9092

1шт.

7

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

- poppet

1шт.

Part of Seal Kit P/N N9092

1шт.

8

S84098

BACK-UP RING,1/2" ID x 11/16" OD

- backup, poppet O-ring

1шт.

Part of Seal Kit P/N N9092

1шт.

9

NSS

NOT SOLD SEPARAT

ADAPTER ASSEMBLY - valve, internal components are not serviced seprately

1шт.

10

NSS

NOT SOLD SEPARAT

SPRING - outer

1шт.

11

NSS

NOT SOLD SEPARAT

SPRING - inner

1шт.

12

NSS

NOT SOLD SEPARAT

POPPET ASSEMBLY - inner, internal components are not serviced seprately

1шт.

13

NSS

NOT SOLD SEPARAT

POPPET - outer

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - valve 1

1шт.

N9092

KIT

SEAL KIT - circuit relief valve, includes all seals, backup rings, and all three internal springs

1шт.

S616862

VALVE

RELIEF VALVE - circuit, cartridge assembly, Special R series complete, set at 3000 psi

1шт.

S616863

VALVE

RELIEF VALVE - circuit, cartridge assembly, Special R series complete, set at 2500 psi, Includes: Refs. 15-29

1шт.

15

S116073

CAP

NUT - dome, adjusting screw, special R series circuit relief valves

1шт.

16

N8538

O-RING,0.426" ID x 0.566" OD x 0.07"

- outer, specail R series circuit relief valves

2шт.

17

S116072

JAM NUT

- jam, adjusting screw, special R series circuit relief valves

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug to cartridge and cartridge to valve body, special R series circuit relief

2шт.

Part of Seal Kit P/N S117193

1шт.

19

S83071

BACK-UP RING

RING - backup, inner plug O-ring, special R series circuit relief valves

1шт.

Part of Seal Kit P/N S117193

1шт.

20

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

- inner plug, special R series circuit relief valves

1шт.

Part of Seal Kit P/N S117193

1шт.

21

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

- poppet, special R series circuit relief valves

1шт.

Part of Seal Kit P/N S117193

1шт.

22

S84098

BACK-UP RING,1/2" ID x 11/16" OD

- backup, poppet O-ring, special R series circuit relief valves

1шт.

Part of Seal Kit P/N S117193

1шт.

23

NSS

NOT SOLD SEPARAT

WASHER - spring, special R series circuit relief valves

12шт.

24

NSS

NOT SOLD SEPARAT

ADAPTER ASSEMBLY - valve, internal components are not serviced seprately, special R series circuit relief valves

1шт.

25

NSS

NOT SOLD SEPARAT

SPRING - outer, Special R series circuit relief valves

1шт.

26

NSS

NOT SOLD SEPARAT

SPRING - inner, special R series circuit relief valves

1шт.

27

NSS

NOT SOLD SEPARAT

POPPET ASSEMBLY - inner, internal components are not serviced seprately, special R series circuit relief valves

1шт.

28

NSS

NOT SOLD SEPARAT

POPPET - outer, special R series circuit relief valves

1шт.

29

NSS

NOT SOLD SEPARAT

BODY - valve, special R series circuit relief

1шт.

S117193

SEAL KIT

SEAL KIT - circuit relief valve, includes Refs. 18-22, special R series circuit relief

1шт.

Special R series circuit relief valves can be identified by the metal tag on the valve or the circle V-groove machined into the outer face to the plug.
