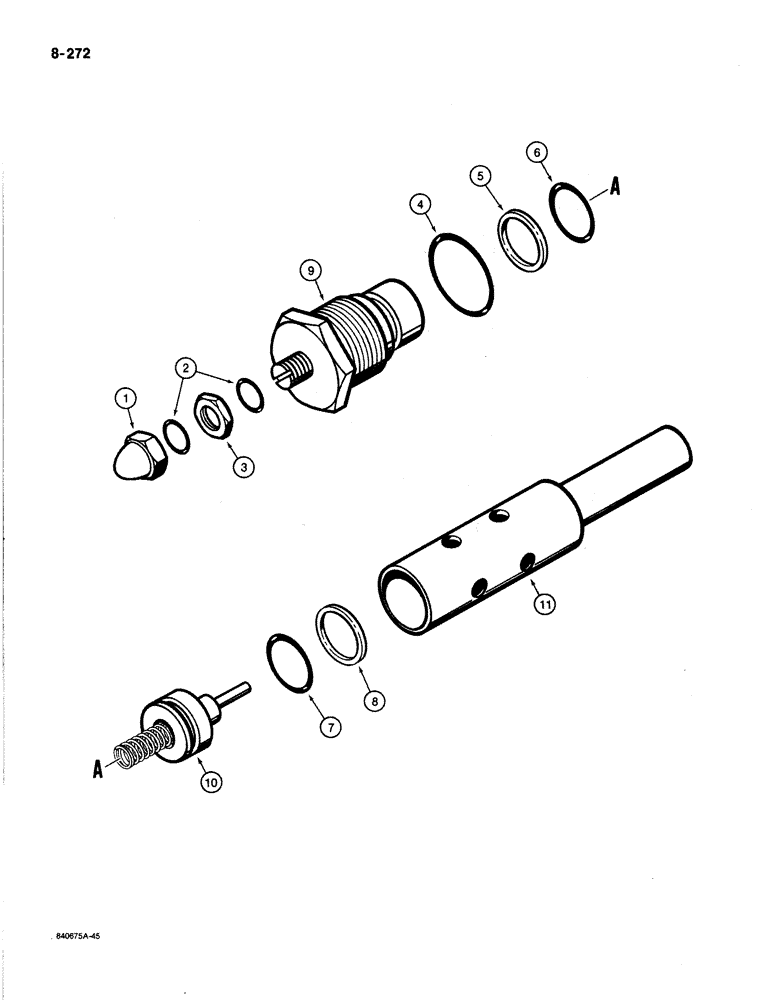

Запчасти Case 1187B (8-272) - MAIN RELIEF VALVE, USED WITH ONE SPOOL AND FOUR SPOOL CONTROL VALVES (08) - HYDRAULICS

S62112

CARTRIDGE

VALVE ASSEMBLY - main relief, one spool and four spool control valves, Includes: Refs. 1-11

1шт.

1

S116073

CAP

NUT - dome, relief valve

1шт.

2

N8538

O-RING,0.426" ID x 0.566" OD x 0.07"

- adjusting screw nuts

2шт.

3

S116072

JAM NUT

- jam, adjusting screw

1шт.

4

N8556

O-RING,1" ID x 1-1/4" OD x 1/8"

- cartridge, outer

1шт.

5

S84196

BACK-UP RING,9/16" ID x 3/4" OD x 0.052"

- backup, inner cartridge O-ring

1шт.

6

A64436

O-RING,0.549" ID x 0.755" OD

- cartridge, inner

1шт.

7

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

- poppet

1шт.

8

S84098

BACK-UP RING,1/2" ID x 11/16" OD

- backup, poppet O-ring

1шт.

9

NSS

NOT SOLD SEPARAT

ADAPTER ASSEMBLY - valve, internal components are not serviced separately

1шт.

10

NSS

NOT SOLD SEPARAT

POPPET ASSEMBLY - valve, internal components are not serviced separately

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.
