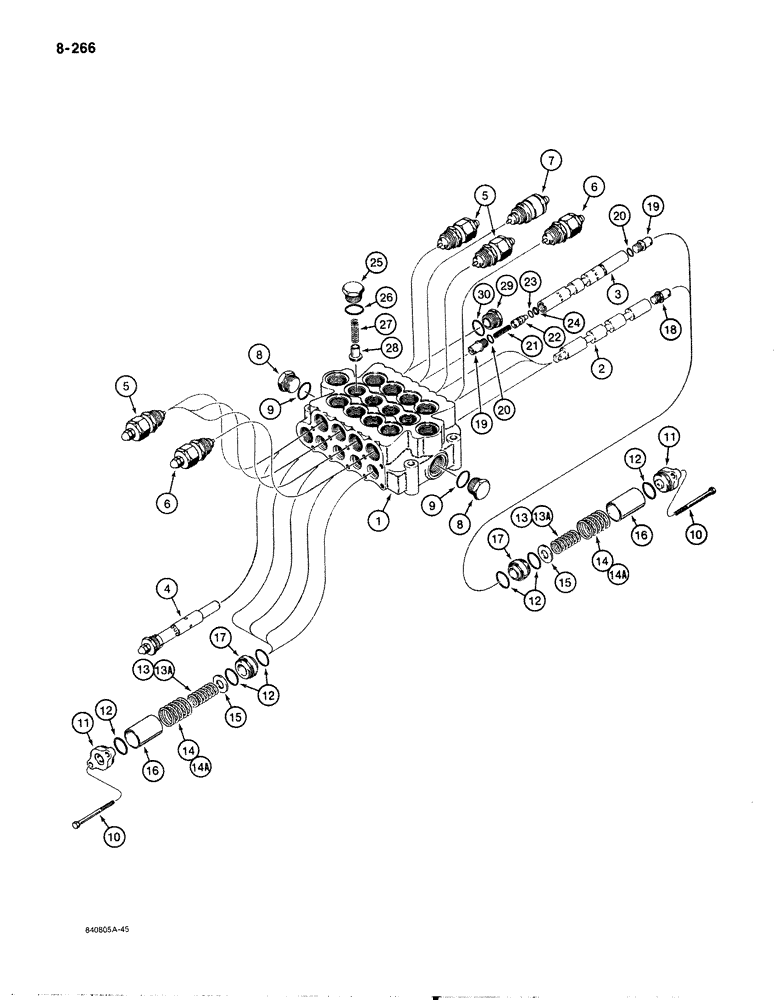

Запчасти Case 1187B (8-266) - FOUR SPOOL CONTROL VALVE - INSIDE (08) - HYDRAULICS

S516349

VALVE

ASSEMBLY - control, inside, Includes: Refs. 1-30

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - control valve

1шт.

S120857 Kit to eliminate cavitation on the motor in the track drive circuit.

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - crowd, right-hand track, and attachment circuits

3шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - swing circuit

1шт.

4

S62112

CARTRIDGE

VALVE ASSEMBLY - main relief, set at 2500 psi, parts list Figure 8-272

1шт.

5

S616868

VALVE

ASSEMBLY - circuit relief, set at 2500 psi, parts list Figure 8-274

5шт.

6

S616867

VALVE

ASSEMBLY - circuit relief, set at 3000 psi, parts list Figure 8-274

2шт.

7

S616863

VALVE

ASSEMBLY - circuit relief, Special R series, set at 2500 psi, parts list Figure 8-274

1шт.

8

273916

PLUG,Hex, 1-5/16" - 12 ORB

C1 and D1 ports, Includes Ref. 9 Hex Hd, 1 5/16"-12 ORB

2шт.

9

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug

1шт.

10

113-267

BOLT,Hex, 3/8" - 16 x 4", Gr 5

16шт.

11

N8722

VALVE

CAP - end, spool

8шт.

12

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- end cap and retainer

24шт.

13

N8723

SPRING

- spool, inner, no longer available, order N13042, Ref. 13A, and N13043, Ref. 14A, springs for service as a matched set

8шт.

13a

N13042

SPRING

- spool, inner

8шт.

14

N8726

SPRING

- spool, outer, no longer available, order N13042, Ref. 13A, and N13043, Ref. 14A, springs for service as a matched set

8шт.

14a

N13043

SPRING

- spool, outer

8шт.

15

N8727

SPACER

- spring

8шт.

16

N8724

TUBE,1.628" ID x 1.812" OD x 2.603" L

HOUSING - spool spring

8шт.

17

N8725

CAP

RETAINER - spring, inner

8шт.

18

NSS

NOT SOLD SEPARAT

PLUG - spool, crowd, right-hand track and attachment

3шт.

19

N8721

END

PLUG - spool, swing

2шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Spool plug

2шт.

21

S62189

SPRING

- swing spool poppet

1шт.

22

S62291

VALVE POPPET

POPPET - swing spool

1шт.

23

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

- poppet

1шт.

24

S84098

BACK-UP RING,1/2" ID x 11/16" OD

- backup, poppet

1шт.

25

S13714

PLUG

- load check

4шт.

26

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- check plug

4шт.

27

S13715

SPRING

- load check

4шт.

28

S13716

VALVE POPPET

POPPET - load check

4шт.

29

S13707

PLUG

- main relief

1шт.

30

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- relief plug

1шт.
