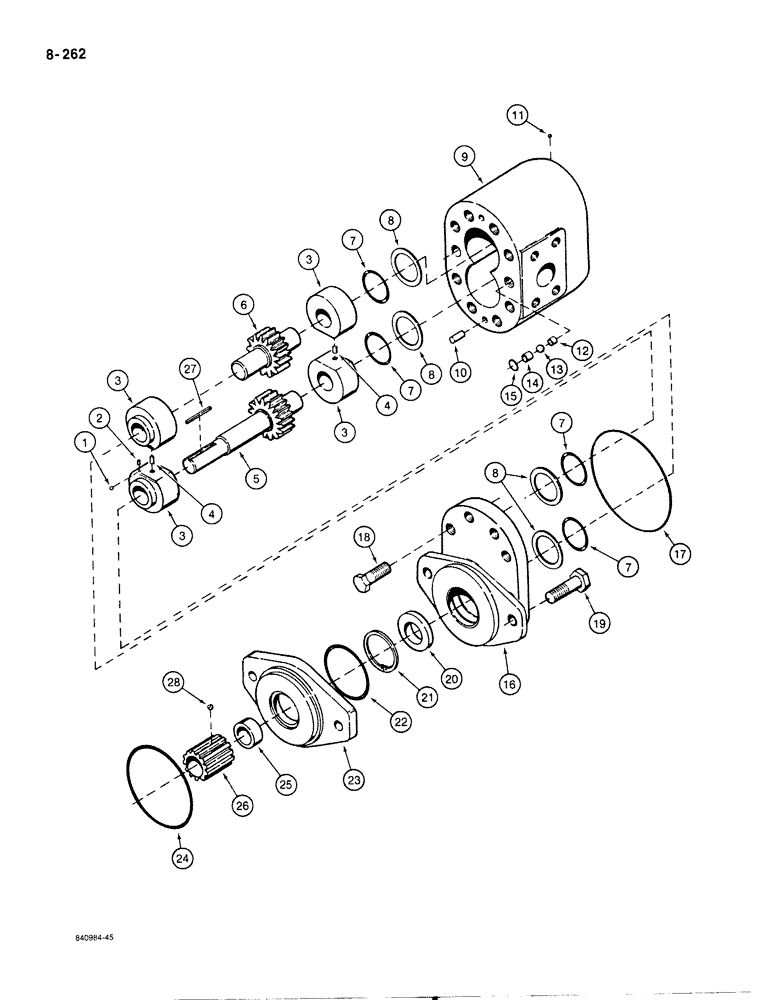

Запчасти Case 1187B (8-262) - MOTOR PUMP ASSEMBLY, USED WITH ROTARY CUTTER (08) - HYDRAULICS

S608925

PUMP ASSEMBLY - hydraulic motor, rotary cutter

1шт.

S235757

MOTOR

ASSEMBLY - rotary cutter, parts list Figure 8-264

1шт.

S233569

PUMP

ASSEMBLY - rotary cutter, Includes: Refs. 1-28

1шт.

1

211-3

BALL,1/8" Dia

- bushing, meter 1/8" Dia

4шт.

2

138-4

PIN,1/16" x 3/8", Slotted

4шт.

3

S110656

BUSHING

- drive and idler gear shaft

4шт.

4

S110676

DOWEL

PIN - dowel, bushing

2шт.

S233573

GEAR-SET

GEAR SET - pump, with drive shaft, Includes: Refs. 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

6

NSS

NOT SOLD SEPARAT

GEAR - driven

1шт.

7

S110683

O-RING

- bushing at cover and body

4шт.

Part of Seal Kit, P/N S233575

1шт.

8

S110675

BACK-UP RING

RING - backup, O-ring

4шт.

Part of Seal Kit, P/N S233575

1шт.

9

S233571

BODY - pump

1шт.

10

S110677

DOWEL

PIN - dowel, pump body

2шт.

11

211-5

BALL,3/16" Dia

- pump body, meter 3/16" Dia

1шт.

12

S110666

RETAINER

- ball

2шт.

13

211-101

BALL,1/4" Dia, Stainless

Pump body 1/4" Dia, Stainless

2шт.

14

S110665

SEAT

- ball

2шт.

15

S110682

O-RING

- seat

2шт.

Part of Seal Kit, P/N S233575

1шт.

16

S110674

FLANGE

COVER - front, pump

1шт.

17

S110681

O-RING,-149, 90 Duro, 2.8" ID x .103" Thk

- cover to body

1шт.

Part of Seal Kit, P/N S233575

1шт.

18

S110661

CAPSCREW

BOLT - special, Serial Range: cover-body

8шт.

19

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Pump and adapter to motor Hex, 3/8"-16 x 1 1/2", G5

2шт.

20

S110662

SEAL

- drive shaft

1шт.

Part of Seal Kit, P/N S233575

1шт.

21

S110663

RING, SNAP

RING - snap, seal

1шт.

22

S110680

O-RING

- adapter to pump cover

1шт.

Part of Seal Kit, P/N S233575

1шт.

23

S110658

ADAPTER

-, Serial Range: pump-motor

1шт.

24

S110673

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- adapter to motor

1шт.

Part of Seal Kit, P/N S233575

1шт.

25

S110659

SPACER

- coupling

1шт.

26

S110657

COUPLING

-, Serial Range: pump-motor

1шт.

27

S110664

KEY

- drive, Serial Range: shaft-coupling

1шт.

28

S110660

SET SCREW

SCREW - set, special, coupling

1шт.

S233575

KIT

- seal, includes Refs. 7, 8, 15, 17, 20, 22 and 24

1шт.
