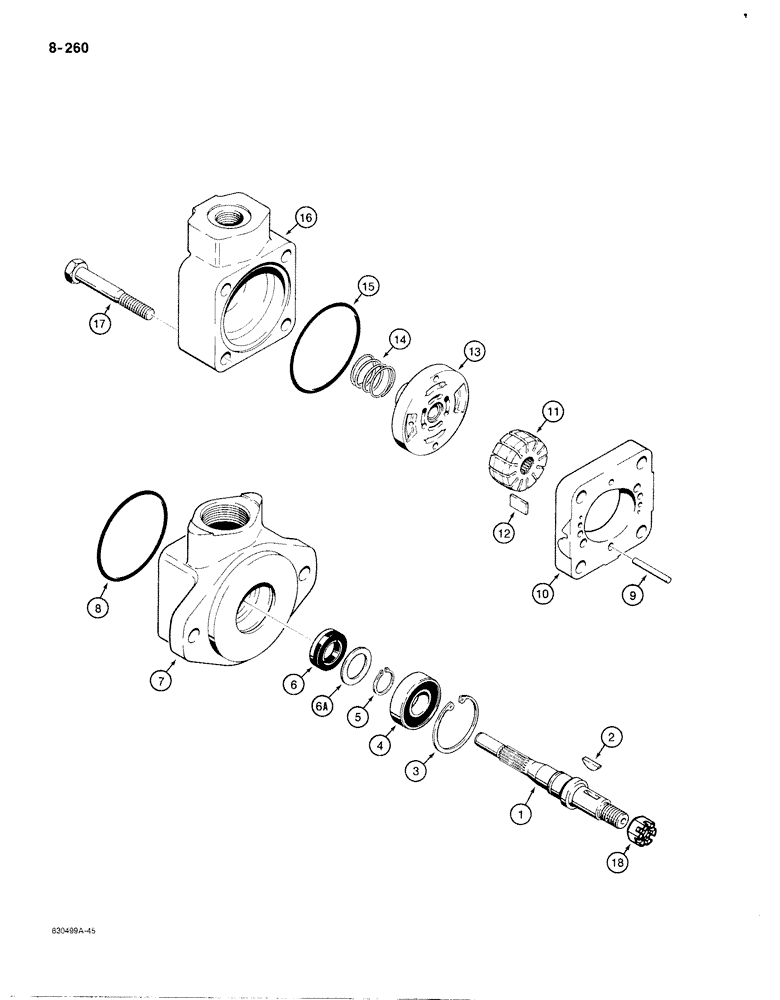

Запчасти Case 1187B (8-260) - HYDRAULIC PUMP, USED WITH CONTROL CIRCUITS (08) - HYDRAULICS

S516451

PUMP

ASSEMBLY - hydraulic, control circuit, Includes: Refs. 1-18

1шт.

1

N60318

SHAFT

- input, pump

1шт.

2

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Shaft #6, 5/32" x 5/8"

1шт.

3

T28736

SNAP RING,1.562", Int, #156

Ring, Snap, , brg, outer 1.562", Int, #156

1шт.

4

F37843

BEARING

- input shaft

1шт.

5

H748665

SNAP RING,#66, Ext

Ring, Snap, , bearing, inner #66, Ext

1шт.

6

N8557

SEAL

- input shaft

1шт.

6a

N8558

SPACER

- seal

1шт.

7

NSS

NOT SOLD SEPARAT

COVER - shaft end

1шт.

8

A38490

O-RING,2.487" ID x 2.693" OD x 0.103"

- shaft end cover

1шт.

9

S98105

PIN

- dowel, pump

2шт.

10

N60316

HOUSING

RING - cam

1шт.

11

S98096

ROTOR

- pump

1шт.

12

S98090

KIT

VANE KIT - includes 12 vanes

1шт.

13

F37848

PLATE

- pressure, pump

1шт.

14

F37849

SPRING

- pressure plate

1шт.

15

D24053

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

- closed end cover

1шт.

16

N60315

SPRING

COVER - closed end

1шт.

17

26-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

- hex head, 3/8" - 16 NC x 2-3/4", grade 8

4шт.

18

25-138

SLOTTED NUT,1/2"-20, G5

NUT - hex, slotted, 1/2" - 20 NF

1шт.

Replaced by 25-138 Castle Nut and 132-320 Cotter Pin

1шт.
