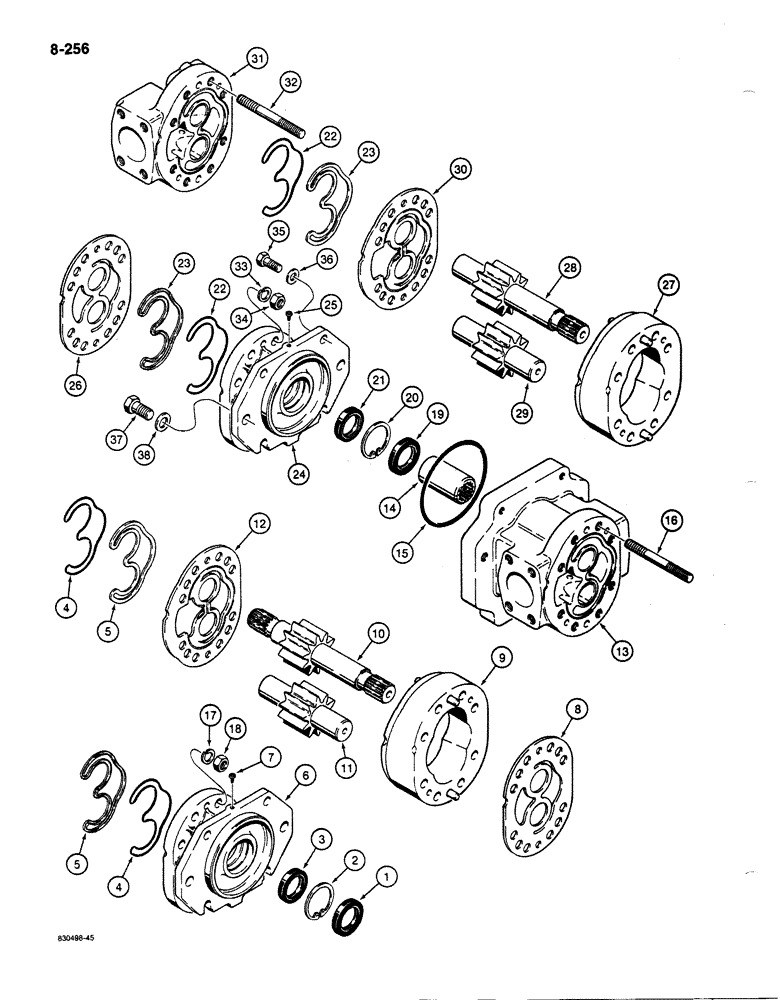

Запчасти Case 1187B (8-256) - S619344 HYDRAULIC PUMP, USED ON MODELS WITH CASE ENGINE (08) - HYDRAULICS

S619344

PUMP

ASSEMBLY - main hydraulic, tandem, Includes: Refs. 1-38

1шт.

EFFECTIVE 12-95 THIS IS A JOHN S BARNES PUMP - #858323. If you have a barnes pump and try to reseal it you may find you are short abunch of orings. You can order barnes part # 920113 and 920097 from a local barnes Dlr.

1шт.

SEAL KIT N7240 FOR THIS PUMP SUBS TO PRIMES. (2) N60194, (2) N60195, (1) N60212, (1) N60213, (1) 103-21200. IF YOU ORDER THESE QUAN IT WILL ONLY SERVICE ONE HALF OF THE PUMP.

1шт.

S619344 used at S/NJAK0032727

1шт.

S300362

PUMP

ASSEMBLY - next to engine, Includes: Refs. 1-18

1шт.

1

N60212

SEAL

SEAL - shaft, outer

1шт.

Part of Seal Kit, P/N N7240

1шт.

2

D41419

RING

- snap, seal retaining

1шт.

Part of Seal Kit, P/N N7240

1шт.

3

N60213

SEAL

- shaft, inner

1шт.

Part of Seal Kit, P/N N7240

1шт.

4

N60195

SEAL

- pre-load

2шт.

Part of Seal Kit, P/N N7240

1шт.

5

N60194

RETAINER

- seal

2шт.

Part of Seal Kit, P/N N7240

1шт.

6

S300364

COVER

- driveshaft end

1шт.

7

N60210

PLUG

- drive end cover

1шт.

8

N60187

PLATE

- wear, front

1шт.

9

S300367

VALVE BLOCK

HOUSING - gear

1шт.

10

N60193

GEAR

- drive, pump

1шт.

11

N60189

GEAR

- driven, pump

1шт.

12

N60191

PLATE

- wear, rear

1шт.

13

S300365

PORT

CARRIER - bushing

1шт.

14

N60224

COUPLING

- pump shaft

1шт.

15

S5752

O-RING,4.987" ID x 5.193" OD x 0.103"

- rear seal

1шт.

16

N60211

STUD

- pump tie

8шт.

17

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

8шт.

18

129-106

NUT,9/16"-12, G5

- hex, 9/16" - 12 NC

8шт.

S300363

PUMP

ASSEMBLY - away from engine, Includes: Refs. 19-34

1шт.

19

N60212

SEAL

SEAL - shaft, outer

1шт.

Part of Seal Kit, P/N N7240

1шт.

20

D41419

RING

- snap, seal retaining

1шт.

Part of Seal Kit, P/N N7240

1шт.

21

N60213

SEAL

- shaft, inner

1шт.

Part of Seal Kit, P/N N7240

1шт.

22

N60195

SEAL

- pre-load

2шт.

Part of Seal Kit, P/N N7240

1шт.

23

N60194

RETAINER

- seal

2шт.

Part of Seal Kit, P/N N7240

1шт.

24

S300364

COVER

- driveshaft end

1шт.

25

N60210

PLUG

- driveshaft end cover

1шт.

26

N60187

PLATE

- wear, front

1шт.

27

S300367

VALVE BLOCK

HOUSING - gear

1шт.

28

N60190

GEAR

- drive, pump

1шт.

29

N60189

GEAR

- driven, pump

1шт.

30

N60191

PLATE

- wear, rear

1шт.

31

S300366

COVER

- port end

1шт.

32

N60211

STUD

- pump tie

8шт.

33

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

8шт.

34

129-106

NUT,9/16"-12, G5

- hex, 9/16" - 12 NC

8шт.

35

26-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex head, 1/2" - 13 NC x 1", grade 8

4шт.

36

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", hardened, if used

4шт.

37

26-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 8

- hex head, 5/8" - 11 NC x 1", grade 8

2шт.

38

196-30

WASHER,11/16" x 1 1/2" x .134", HDN

- flat, 5/8", hardened, if used

2шт.

N7240

SEAL KIT

- seal, includes Refs. 1 - 5 and 19 - 23

1шт.
