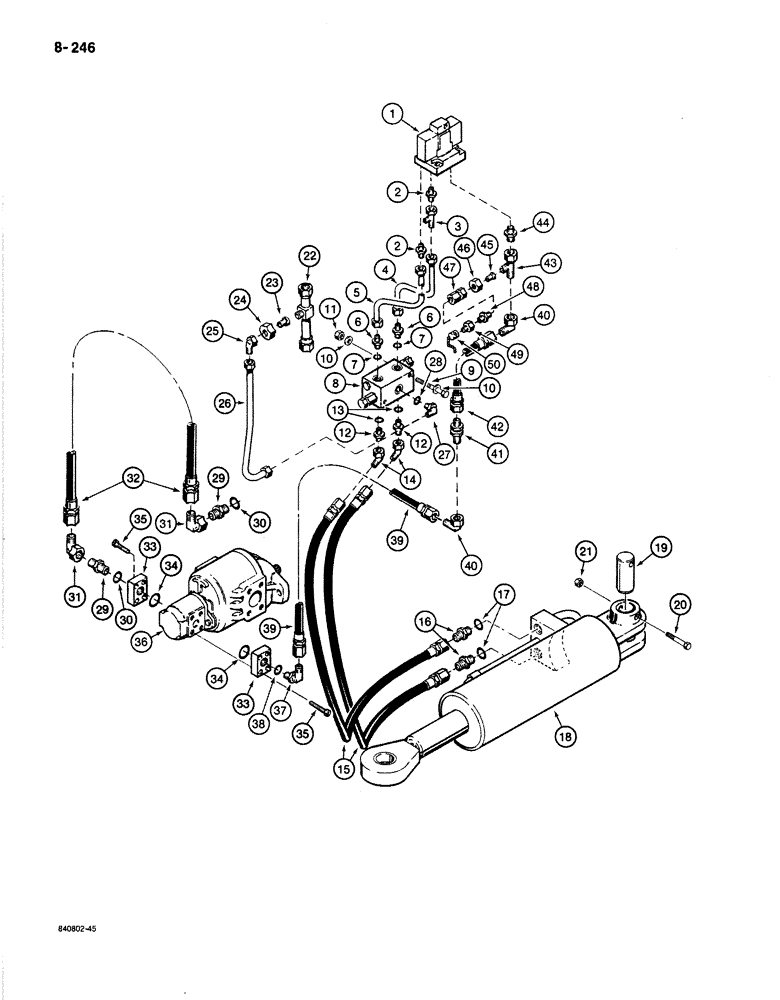

Запчасти Case 1187B (8-246) - ROTARY CUTTER HYDRAULICS, DIRECTIONAL VALVE TO HYDRAULIC PUMP AND CUTTER ARM CYLINDER (08) - HYDRAULICS

1

S509950

VALVE

ASSEMBLY - directional, parts list Figure 8-300

1шт.

2

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - male, straight

2шт.

3

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- at directional valve, see Figure 8-244 for hydraulics from diverter valve

1шт.

4

S232125

TUBE ASSY.,0.5" OD x 3, 5.34" L

TUBE - hydraulic, from "A" port of directional valve

1шт.

5

S232127

TUBE ASSY.,0.5" OD x 5.06, 7.44" L

TUBE - hydraulic, from "B" port of directional valve

1шт.

6

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - male, straight, Incl. Ref 7

2шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Adapter

1шт.

8

S510454

VALVE ASSEMBLY - dual relief, parts list Figure 8-288

1шт.

9

113-267

BOLT,Hex, 3/8" - 16 x 4", Gr 5

2шт.

10

195-103

WASHER,5/16"

- flat, 3/8"

4шт.

11

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

12

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , male, straight, Incl. Ref. 13 7/8"-14, 37º x 3/4"-16, O-Ring

2шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Adapter

1шт.

14

218-5174

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Female JIC

- swivel, 45 degree

2шт.

15

S8584

HOSE ASSY.,12.70 mm ID x 939.80, SAE 100R2

HOSE ASSY, 12.70 mm ID x 939.80 mm, SAE 100R2A, Dual Relief Valve to Cutter Arm Cylinder

2шт.

16

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - male, straight, Includes: Ref. 17

2шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

18

S618357

CYLINDER ASSY.

CYLINDER ASSEMBLY - cutter arm, parts list Figure 8-326

1шт.

19

S46134

PIN,37.95mm OD x 98.55mm L

- cylinder mounting, at frame and cutter arm

2шт.

20

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

21

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

2шт.

22

S232057

LINE

TUBE - hydraulic, see Figure 8-238 for hydraulics to main control valve

1шт.

23

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

- hydraulic fitting

1шт.

24

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT - fitting reducer

1шт.

25

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- swivel, 90 degree

1шт.

26

S232126

LINE,0.50" OD

TUBE - hydraulic, at dual relief valve

1шт.

27

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adjustable, Includes: Ref. 28 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

28

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Elbow

1шт.

29

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - male, straight, Includes: Ref. 30

2шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Adapter

1шт.

31

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

2шт.

32

S15468

HOSE

- 28" (711 mm) long, crossover, motor outlet to pump inlet

1шт.

33

S230045

FITTING

BLOCK - adapter, inlet and outlet of pump

2шт.

34

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- adapter block

2шт.

35

61-620

HEX SOC SCREW,3/8"-16 x 1 1/4"

BOLT - hex socket head, 3/8" - 16 NC x 1-1/4"

8шт.

36

S608925

PUMP ASSEMBLY - hydraulic motor, parts list Figures 8-262 and 8-264

1шт.

37

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degree, Incl. Ref. 38

1шт.

38

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- elbow

1шт.

39

S8578

HOSE

- 26" (660 mm) long, pump outlet to directional control valve, lower

1шт.

40

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

2шт.

41

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FIT STL BULKHD .625MJ .625MJ

1шт.

42

S8577

HOSE

- 20" (508 mm) long, pump outlet to directional control valve, upper

1шт.

43

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- swivel, at directional control valve

1шт.

44

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - male, straight

1шт.

45

218-793

REDUCER,37 Degree, 5/8" x 1/4" Tube

- hydraulic fitting

1шт.

46

218-345

TUBE NUT,37 Degree, 7/8"-14, Type B

NUT - fitting reducer

1шт.

47

S108815

ADAPTER

- special, disconnect

1шт.

48

217-1080

HYD CONNECTOR,1/4" - 18 NPT x 1/4" - 18 NPT

CONNECTOR, (NIPPLE, PIPE) 1/4"-18 NPTF

1шт.

49

S206607

DISC

ONNECT - male

1шт.

50

S206608

CAP

- dust, disconnect

1шт.
