Запчасти Case 1187B (8-244) - ROTARY CUTTER HYDRAULICS, DIVERTER VALVE TO DIRECTIONAL VALVE (08) - HYDRAULICS

1

S509951

VALVE

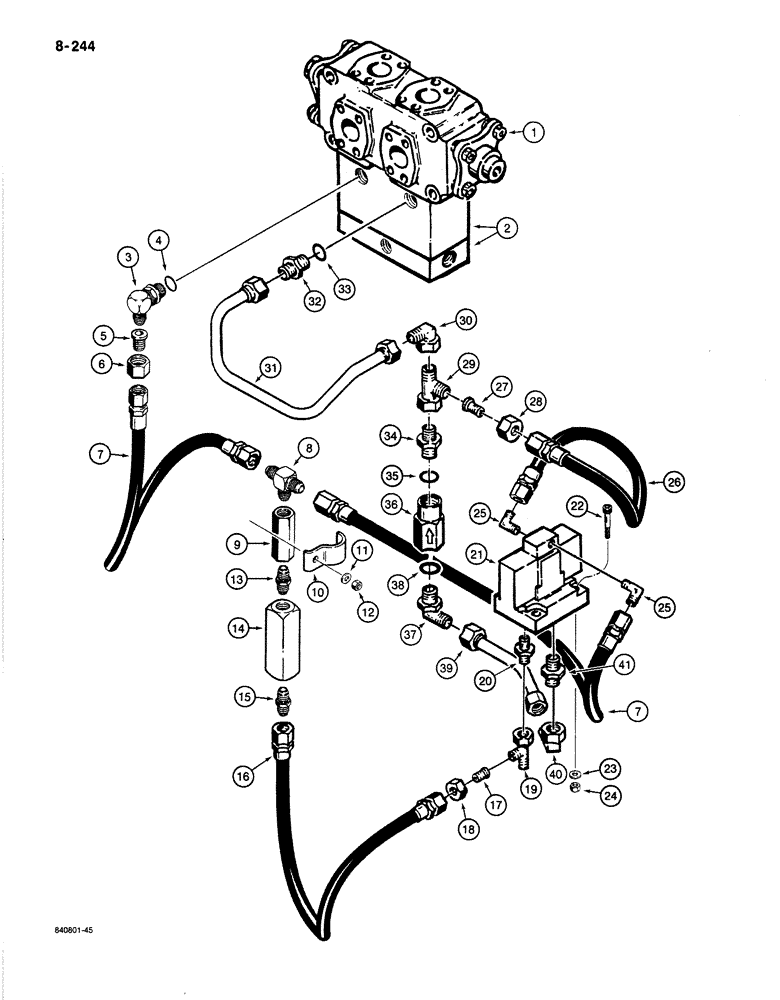

ASSEMBLY - diverter, parts list Figure 8-302

1шт.

2

REF

INSTRUCTION

BLOCK - adapter, see Figure 8-242 for blocks and related parts

2шт.

3

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adjustable, Includes: Ref. 4 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Elbow

1шт.

5

218-792

REDUCER,37 Degree, 1/2" x 3/8" Tube

- hydraulic fitting

1шт.

6

218-344

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT - fitting reducer

1шт.

7

S77121

HOSE

- 20" (508 mm) long, diverter valve to tee, tee to directional valve

2шт.

8

218-553

TEE,9/16"-18, 37 Degree x 1/4"-18, NPTF Br

- male, at orifice valve

1шт.

9

S114792

NOZZLE CAP

VALVE - orifice

1шт.

10

S116280

CLAMP

- orifice, Serial Range: valve-frame

1шт.

11

195-103

WASHER,5/16"

- flat, 3/8"

1шт.

12

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

13

217-1080

HYD CONNECTOR,1/4" - 18 NPT x 1/4" - 18 NPT

CONNECTOR, (NIPPLE, PIPE) 1/4"-18 NPTF

1шт.

14

S110789

VALVE

- check

1шт.

15

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - male, straight

1шт.

16

S77121

HOSE

- 20" (508 mm) long, check, Serial Range: valve-tee

1шт.

17

218-792

REDUCER,37 Degree, 1/2" x 3/8" Tube

- hydraulic fitting

1шт.

18

218-344

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT - fitting reducer

1шт.

19

218-848

TEE,37 Degree, 1 5/16"-12 x 1 5/8"-12 x1 5/16"-12 Fem Sw Br

- at directional valve, see Figure 8-246 for hydraulics to dual relief valve and cutter arm cylinder

1шт.

20

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - male, straight

1шт.

21

S509950

VALVE

ASSEMBLY - directional, parts list Figure 8-300

1шт.

22

61-636

HEX SOC SCREW,3/8"-16 x 2 1/4"

BOLT - hex socket head, 3/8" - 16 NC x 2-1/4"

4шт.

23

195-103

WASHER,5/16"

- flat, 3/8"

4шт.

24

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

4шт.

25

218-492

90 ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

- male, 90 degree

2шт.

26

S77121

HOSE

- 20" (508 mm) long, directional, Serial Range: valve-tee

1шт.

27

218-793

REDUCER,37 Degree, 5/8" x 1/4" Tube

- hydraulic fitting

1шт.

28

218-345

TUBE NUT,37 Degree, 7/8"-14, Type B

NUT - fitting reducer

1шт.

29

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- swivel

1шт.

30

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

31

S232123

TUBE ASSY.,625" OD

TUBE - tee to diverter valve

1шт.

32

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , male, straight, Incl. Ref. 33 7/8"-14, 37º x 3/4"-16, O-Ring

1шт.

33

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Adapter

1шт.

34

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - male, straight, Includes: Ref. 35

1шт.

35

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

36

S402439

CONTAINER

CHECK VALVE - hydraulic

1шт.

37

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

- adjustable, 90 degree, Includes: Ref. 38

1шт.

38

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

39

S232124

LINE,0.625" OD x 5.56, 1.23" L

TUBE - check valve to directional valve

1шт.

40

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

41

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - male, straight

1шт.
