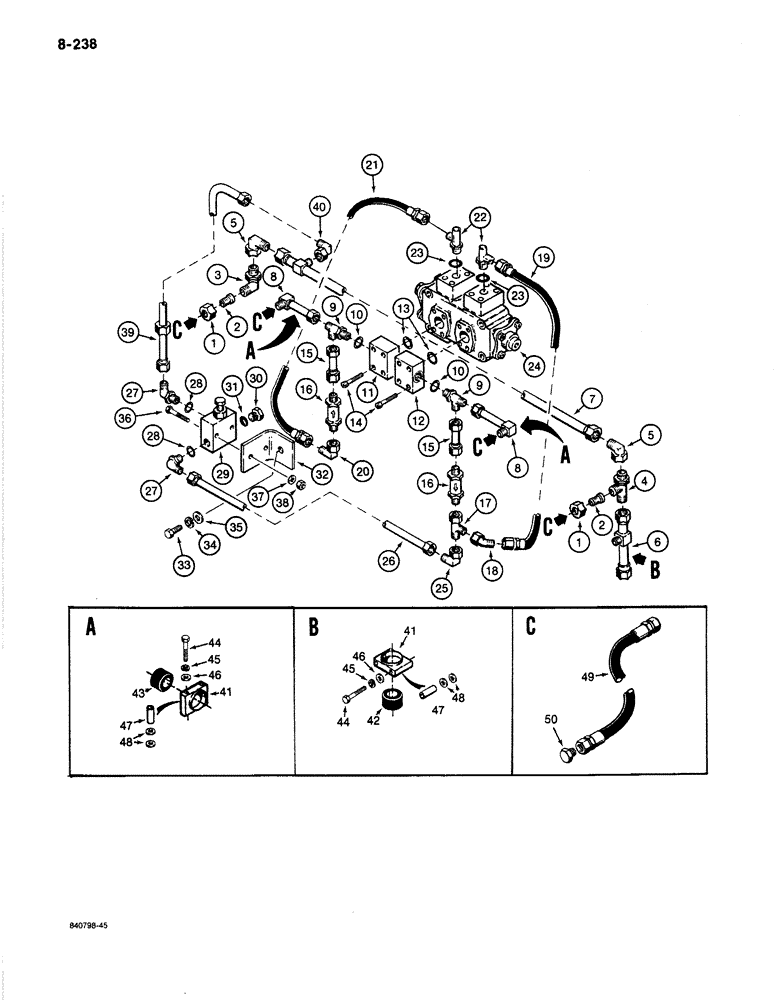

Запчасти Case 1187B (8-238) - ROTARY CUTTER HYDRAULICS, MAIN CONTROL VALVES TO DIVERTER VALVE (08) - HYDRAULICS

1

218-349

TUBE NUT,37 Degree, 1 5/8"-12, Type B

NUT - reducer adapter

2шт.

2

218-788

REDUCER,37º, 1 1/4" x 1" Tube

ADAPTER - reducer

2шт.

3

218-699

ELBOW,90 Degree Blkhd, 1 5/8"-12, 37 Degree x 1 5/8"-12, 37 Degree

1шт.

4

218-1242

TEE,1 5/16"-12, 37 Degree, Blkhd

- bulkhead type

1шт.

5

218-5235

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/8"-12, 37 Degree Fem Sw

- 90 degree

2шт.

6

S232057

LINE

TUBE - hydraulic, at tee, lower see Figure 8-246 for hydraulics to directional valve and cutter cylinder

1шт.

7

S232120

LINE

TUBE - hydraulic, at tee, upper

1шт.

8

S240188

TUBE ASSY.,1.25" OD x 5" L

TUBE - hydraulic, from main valve

2шт.

9

218-5245

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- adjustable, at adapter blocks, Includes: Ref. 10

2шт.

10

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- tee

1шт.

11

S230044

FITTING

BLOCK - adapter, "A" port of diverter valve

1шт.

12

S230043

FITTING

BLOCK - adapter, "B" port of diverter valve

1шт.

13

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

- adapter block

2шт.

14

61-832

HEX SOC SCREW,1/2"-13 x 2"

BOLT - hex socket head, 1/2" - 13 NC x 2"

8шт.

15

S209876

TUBE ASSY.,1" OD x 3" L

TUBE - tee to check valves

2шт.

16

S211472

VALVE, CHECK

VALVE ASSEMBLY - check, hydraulic, parts list Figure 8-294

2шт.

17

218-5223

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

- at check valve

1шт.

18

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

- 45 degree

1шт.

19

S401536

HOSE

- 30" (762 mm) long, from "B" port of diverter valve

1шт.

20

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree

1шт.

21

S8628

HOSE

- 36" (914 mm) long, from "A" port of diverter valve

1шт.

22

218-5245

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- adjustable, see Figure 8-252 for hydraulics to grab arm cylinders, Includes: Ref. 23

2шт.

23

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- tee

1шт.

24

S509951

VALVE

ASSEMBLY - diverter, parts list Figure 8-302

1шт.

25

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree

1шт.

26

S230166

TUBE ASSY.,1" OD x 15.8" L

TUBE - tee to relief valve

1шт.

27

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adjustable, Incl. Ref. 28 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

2шт.

28

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

29

S233922

VALVE

ASSEMBLY - relief, parts list Figure 8-290

1шт.

30

273916

PLUG,Hex, 1-5/16" - 12 ORB

Relief valve port, Includes Ref. 31 Hex Hd, 1 5/16"-12 ORB

1шт.

31

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug

1шт.

32

S234905

BRACKET

- mounting, relief valve

1шт.

33

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

34

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

35

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2"

1шт.

36

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

37

195-103

WASHER,5/16"

- flat, 3/8"

2шт.

38

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

39

S232121

TUBE ASSY.

TUBE - relief, Serial Range: valve-elbow

1шт.

40

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree

1шт.

41

S106643

CLAMP

-, Serial Range: tubes-frame

3шт.

42

S110687

BUSHING

- split, rubber, 1-1/2" ID

1шт.

43

S106646

BUSHING

- split, rubber, 1-1/4" ID

2шт.

44

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

12шт.

45

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

46

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat, 3/8"

12шт.

47

S106647

TUBE NUT

NUT - special, clamp retainer

6шт.

48

195-529

WASHER,7/16", SAE

- flat, use as spacer

1шт.

49

S8628

HOSE

- 36" (914 mm) long, tool boom to rotary cutter

4шт.

50

218-779

PLUG,1 5/16"-12, 37 Degree

CAP - hose, use when cutter is removed

4шт.
