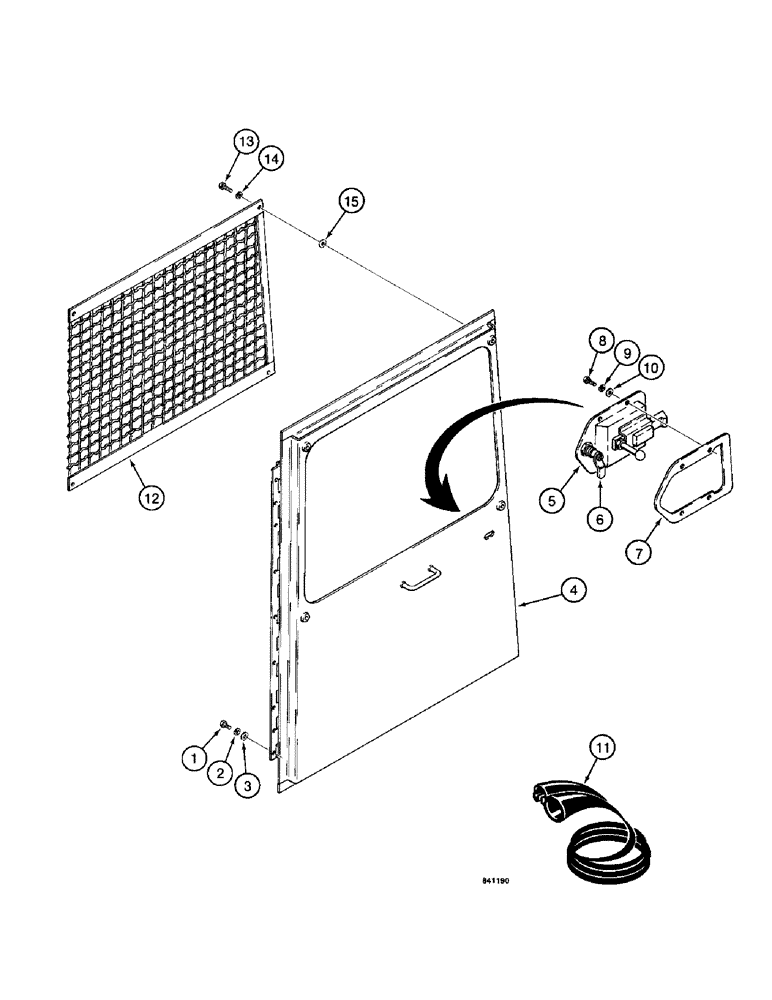

Запчасти Case 1187 (342) - LOGGER CAB, DOOR, DOOR SEAL AND WINDOW GUARD (05) - UPPERSTRUCTURE CHASSIS

S956809

CAB

ASSEMBLY - logger, Includes: Ref. 1 - 10

1шт.

1

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

9шт.

2

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

9шт.

3

195-525

WASHER,3/8", SAE

- flat, 3/8"

9шт.

4

S618300

DOOR

- cab

1шт.

5

S516513

LOCK ASSY

LATCH ASSEMBLY - door closure, Includes: Ref. 6

1шт.

6

N60375

LOCK ASSY

LOCK ASSEMBLY - door, includes keys

1шт.

7

S239956

GASKET

SEAL -, Serial Range: latch-cab

1шт.

8

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

10

195-518

WASHER,1/4", SAE

- flat, 1/4"

4шт.

11

S120341

SEAL

- cab door to cab, 153" (3886 mm) long

1шт.

12

S515176

GUARD

- side window, in door

1шт.

13

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

15

195-533

WASHER,1/2", SAE

- flat, 1/2", use as spacers

1шт.
