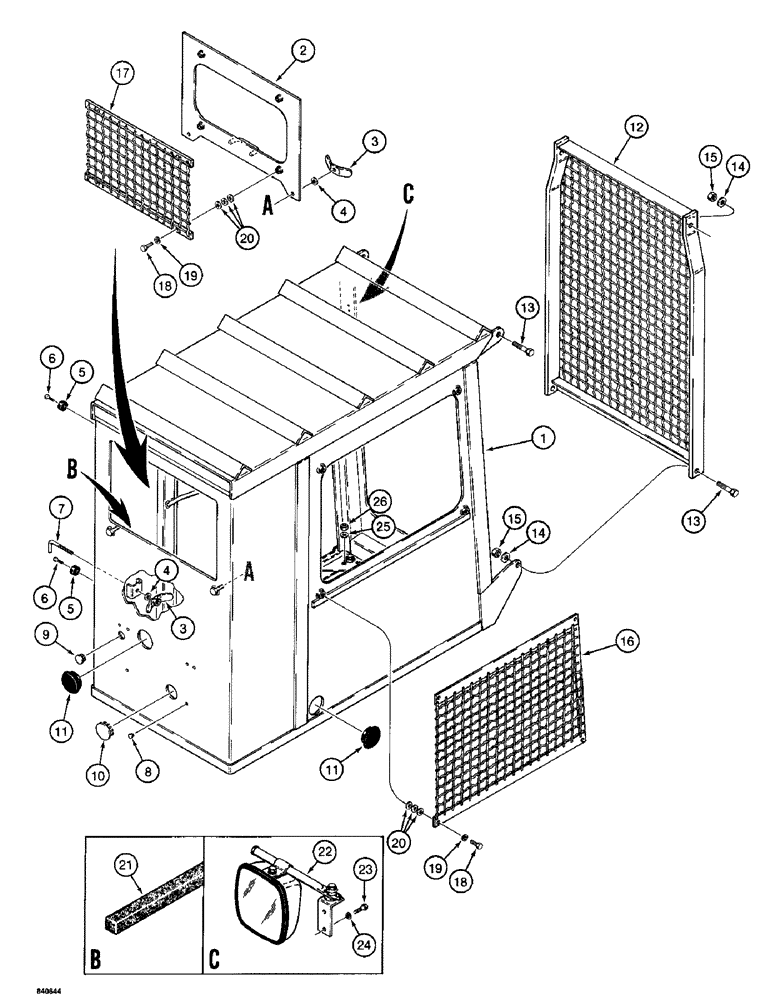

Запчасти Case 1187 (340) - LOGGER CAB, CAB AND WINDOW GUARDS (05) - UPPERSTRUCTURE CHASSIS

S956809

CAB

ASSEMBLY - logger, Includes: Ref. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

CAB - logger

1шт.

2

S508190

FRAME

- cab rear window

1шт.

3

S221281

HANDLE

- retaining, rear window and door

3шт.

4

195-33

WASHER,1/2"

- flat, 1/2"

3шт.

5

S63621

BUMPER

- rubber, Serial Range: door-cab

2шт.

6

173-116

SCREW,Sl Rnd Hd, #12 - 24 x 1/2"

MACHINE SCREW - round head, no. 12 - 24 NC x 1/2"

2шт.

7

S94142

LATCH

- door retaining, open

1шт.

8

205-15

HOLE PLUG BUTTON,3/8"

PLUG - cab rear, hole 3/8"

6шт.

9

205-61

HOLE PLUG BUTTON,1 1/2"

PLUG - cab rear, 1-1/2" hole

1шт.

10

205-72

HOLE PLUG BUTTON,3"

PLUG - cab rear, hole 3"

1шт.

11

S117638

PLUG

- cab rear and right side, 3-3/4" hole

2шт.

12

S618301

GUARD ASSY.

GUARD - windshield

1шт.

13

13-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

- hex head, 1" - 8 NC x 3"

4шт.

14

195-53

WASHER,1" x 2" x .134"

- flat, 1"

4шт.

15

131-20

LOCK NUT,1"-8, GB

NUT - hex, self-locking, 1" - 8 NC

4шт.

16

S515179

GUARD

- side window, in cab

1шт.

17

S221288

GUARD ASSY.

GUARD - rear window

1шт.

18

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

19

132-23

X

WASHER - lock, 1/2"

8шт.

20

195-533

WASHER,1/2", SAE

- flat, 1/2", use as spacers

1шт.

21

REF

INSTRUCTION

SEAL - rear window frame to cab, 98" (2489 mm) long, cut from S120316

1шт.

22

S515469

MIRROR

- cab, rear view

1шт.

23

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

Mirror to cab, included with S956809 cab assembly Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

24

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Included with S956809 cab assembly 1/4"

2шт.

25

195-16

WASHER,#12

- flat, 1/2"

10шт.

26

131-208

SPECIAL NUT,1/2"-13

NUT - hex, self-locking, 1/2" - 13 NC

10шт.

S120316

SEAL

- weather, bulk roll, 25' (7.62 M) long

1шт.
