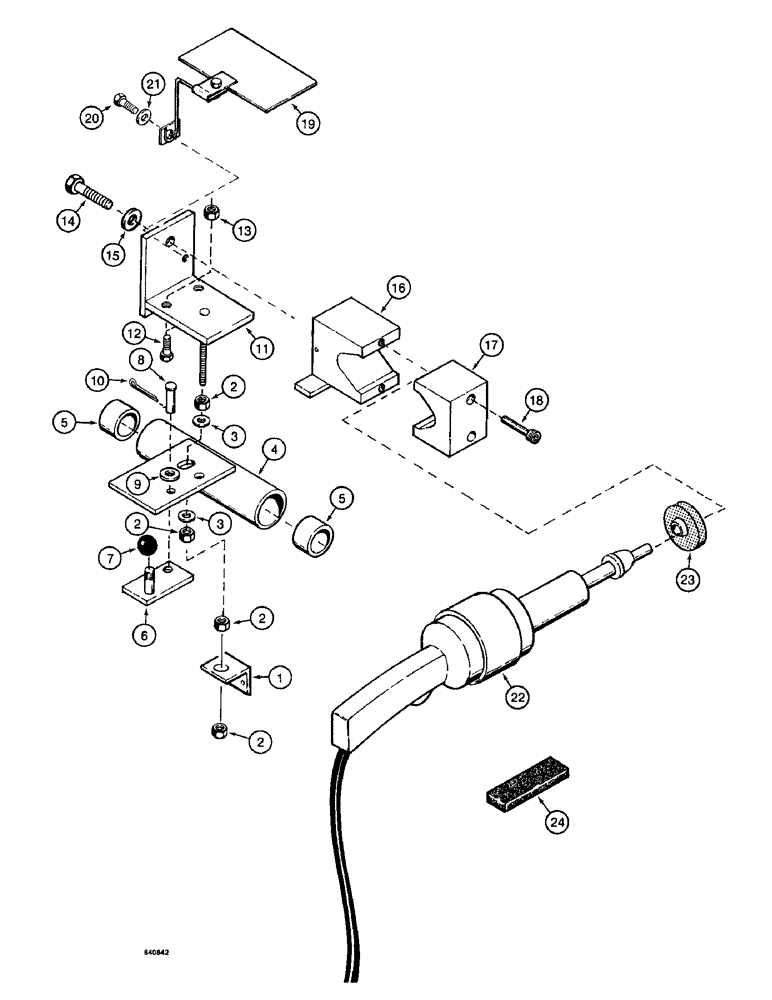

Запчасти Case 1187 (336) - TOOL GRINDER MOUNTING PARTS (05) - UPPERSTRUCTURE CHASSIS

1

S115011

ANGLE

- table chain to grinder bracket, see Figure 334 for sprocket and chain connections

1шт.

2

25-1412

JAM NUT,Jam, 3/4"-10, G5

JAM NUT - hex, 3/4" - 10 NC

4шт.

3

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

- flat, 3/4"

2шт.

4

S237886

HOUSING ASSY.

BRACKET - table shaft to grinder, Includes: Ref. 5

1шт.

5

S115480

BEARING

BUSHING - table bracket

2шт.

6

S229421

LATCH ASSY.

LATCH - bracket

1шт.

7

A61683

BUTTON

KNOB - latch

1шт.

8

S10742

PIN

CLEVIS PIN - 5/16" x 1-1/2" long

1шт.

9

195-103

WASHER,5/16"

- flat, 5/16"

1шт.

10

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

11

S232261

BRACKET

- mounting, grinder clamp

1шт.

12

123-402

BOLT

- hex head, 1/2" - 13 NC x 1-3/4"

2шт.

13

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.

14

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

15

195-2261

WASHER

- flat, 5/8"

1шт.

16

S232263

CLAMP

- grinder, at bracket

1шт.

17

S232265

CLAMP

- grinder, outer part

1шт.

18

61-435

CAP SCREW - hex socket head, 1/4" - 20 NC x 2-1/4"

2шт.

19

S108875

SHIELD - grinder

1шт.

20

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

21

196-1

WASHER,13/32" x 13/16" x .089", HDN

- flat, 3/8"

1шт.

22

S240651

GRINDER

ASSEMBLY - tool, parts list Figure 338

1шт.

23

S113297

WHEEL (STEERING)

WHEEL - grinding

1шт.

24

S113888

KIT

STONE - dressing, grinding wheel

1шт.
